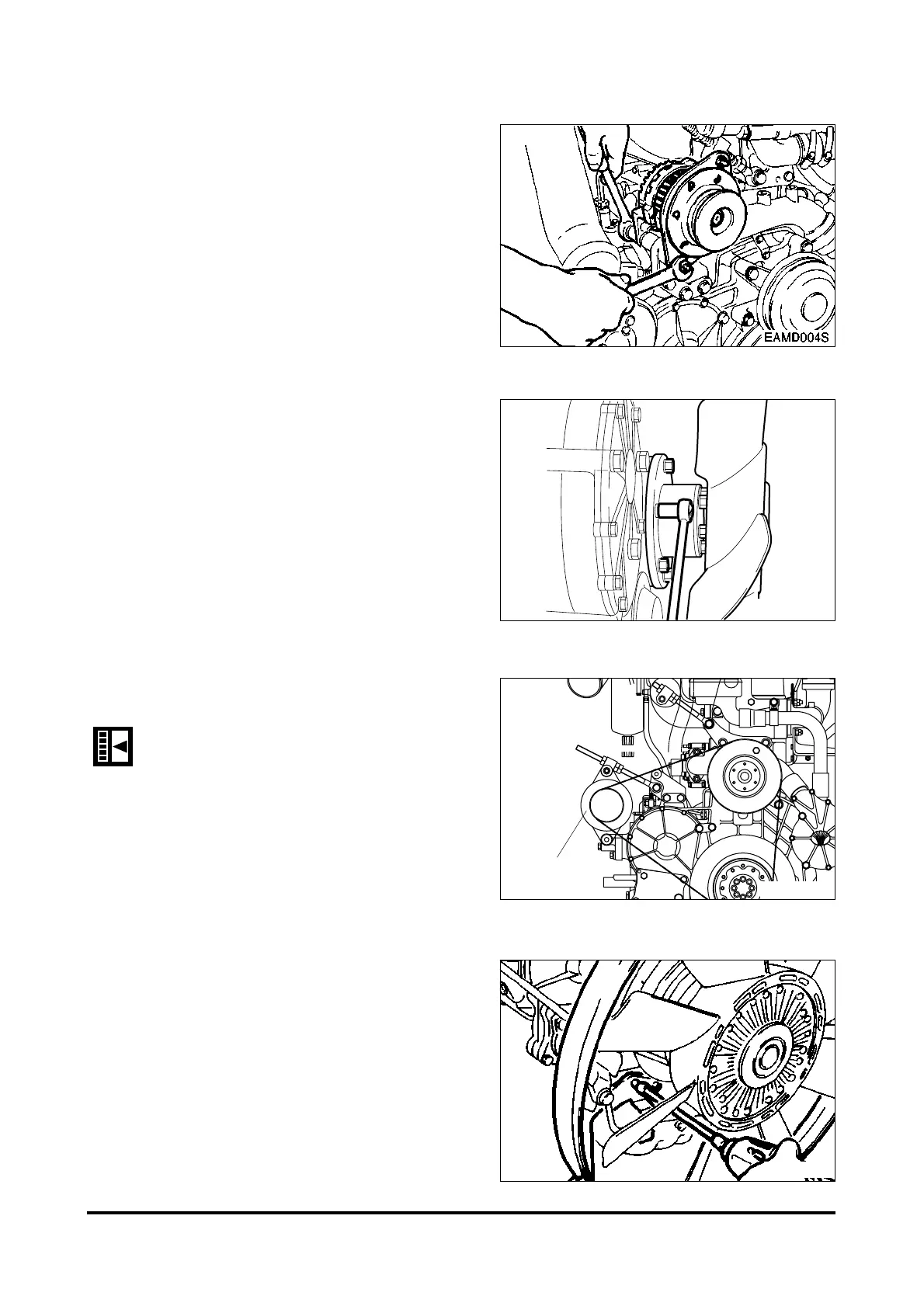

3.3.39. Alternator
•
Install the alternator mounting brack-
et.
•
Install the alternator with fixing bolts
to the mounting bracket.
3.3.40. Cooling fan
•
Install the cooling fan and flange,
then tighten the fixing bolts.
3.3.41. V- belt
•
Install the V-belt on the crank pulley
and alternator pulley.
•
Adjust the V-belt tension using the
tension adjusting bolt.
3.3.42. Cooling fan guide
•
Install the three fan guide brackets
then assemble the fan guide and
bracket.
- 97 -
REASSEMBLY
