2.6. Fuel System
The fuel is delivered by the fuel feed pump via the fuel filter to the injection pump and from there
to the injection nozzles.
The fuel is sprayed into the cylinders through nozzles fitted in screw-fit injection nozzle holders
in the cylinder heads.
Excessively delivered fuel and leak fuel from the nozzle flow through the return pipe back to the
tank.
A strainer is arranged ahead of the fuel feed pump.

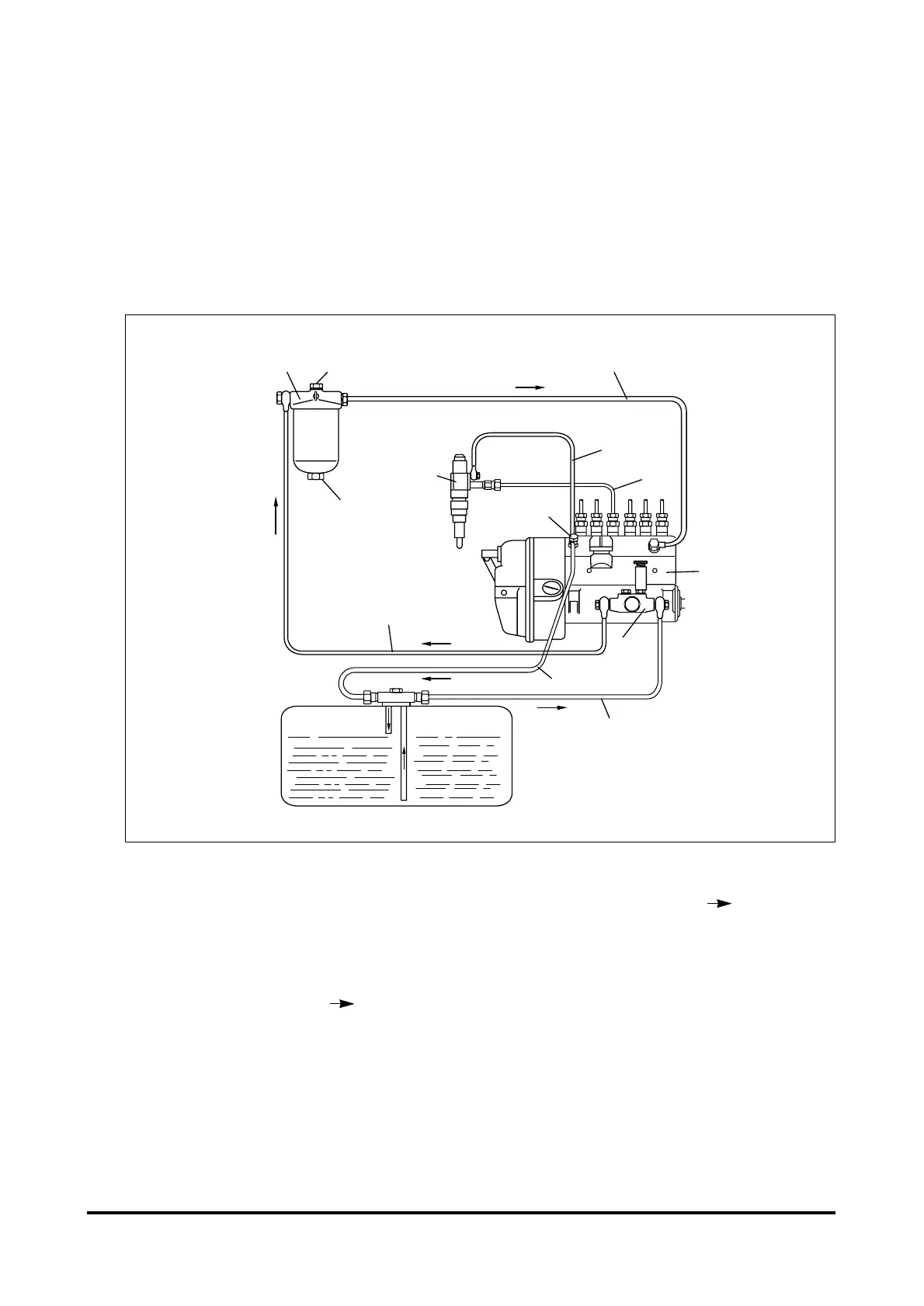

1. Fuel filter 7. Fuel injection pipe
1a. Fuel water drain plug 8. Fuel pipe (feed pump filter)
2. Air bleeding screw (for fuel filter) 9. Fuel tank
3. Injection nozzle 10. Fuel return pipe
4. Overflow tube 11. Suction pipe
5. Fuel pipe (filter injection pump) 12. Feed pump
6. Overflow valve 13. Injection pump
- 21 -
