3.1.18.

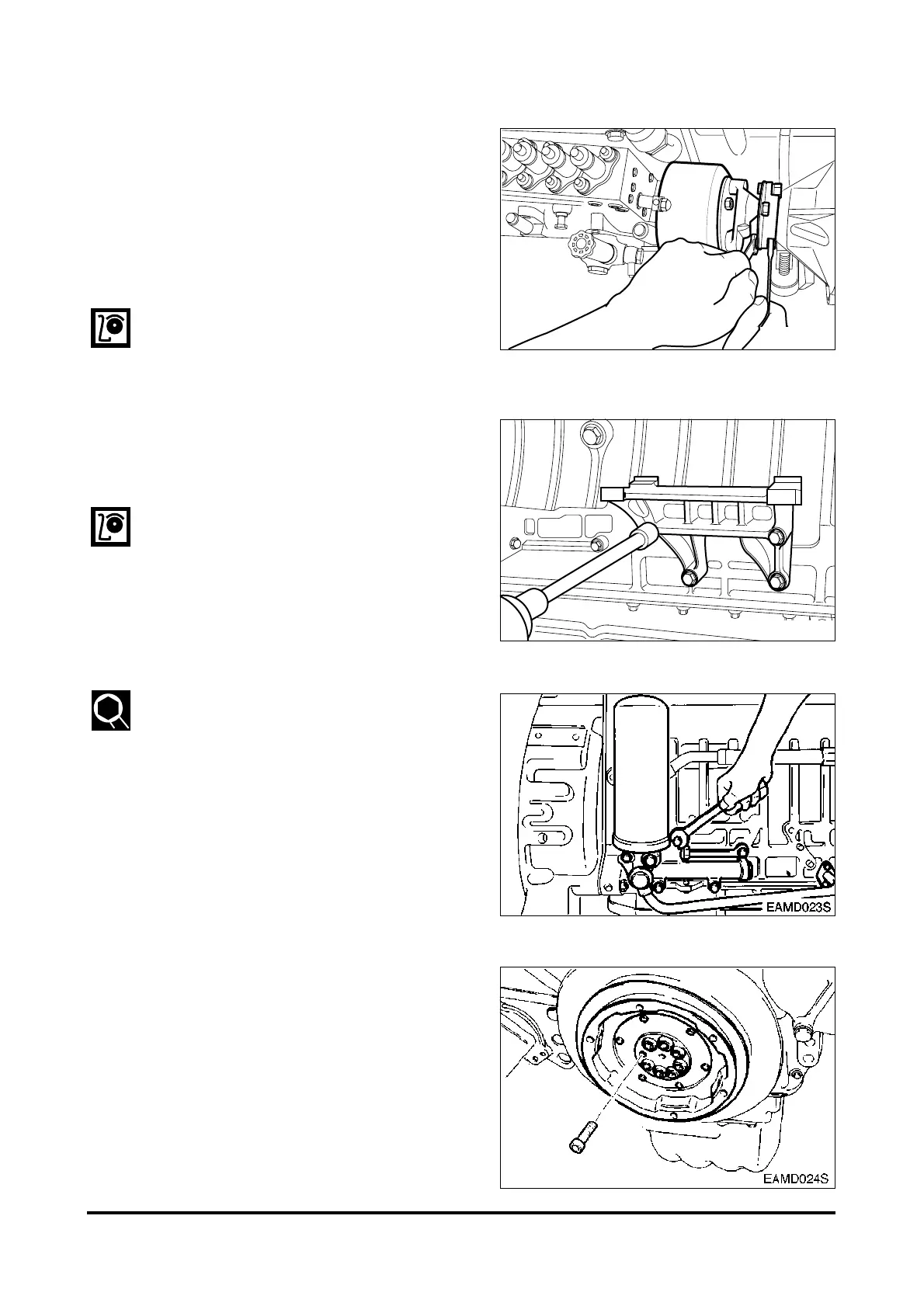

Fuel injection pump
•
Remove the oil supply pipe and
return pipe connected to the fuel
injection pump.
•
Unscrew the bolts connecting the
coupling and drive shaft, loosen the
injection pump attaching bolts, then
disassemble the injection pump.
NOTE :
Place the No.1 cylinder in ‘OT’ in exact
position to disassemble the injection
pump.
•
Release the pump fixing bracket bolts
to disassemble the bracket from the
cylinder block.
NOTE :
Do not interchange the shims as they
must be installed in their original
positions at reassembly
3.1.19.
Oil filter
•
Using a filter remover wrench,
remove the oil filter cartridge.
•
Remove the pipe connected to the oil
cooler.
•
Loosen the oil filter fixing bolts and
disassemble the oil filter head from
the cylinder block.
3.1.20.
Vibration damper
•
Unscrew the pulley fixing bolts and
disassemble the pulley-vibration
damper assembly.
•
Unscrew the vibration damper fixing
bolts and disassemble the damper
from the pulley.
- 53 -
DISASSEMBLY
