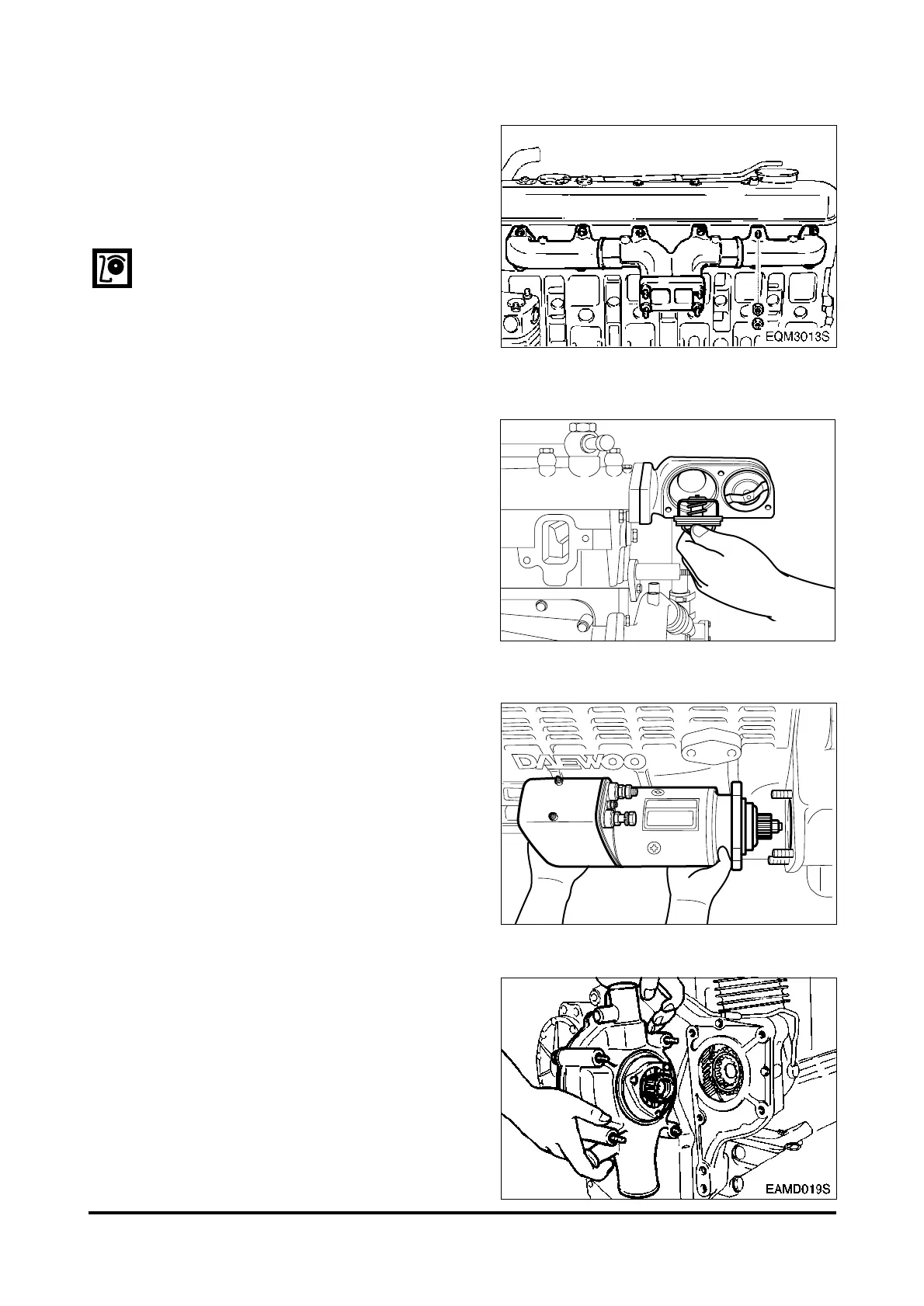

3.1.14.
Exhaust manifold
•
Release the exhaust manifold fixing
bolts, disassemble the exhaust mani-
fold, then remove the heat shield and
gasket.
NOTE :
Make sure to release the nuts one
after another because the exhaust
manifold will be removed if you
unscrew two nuts simultaneously.
3.1.15.
Thermostat
•
Remove the by-pass pipe connected
to the water pump, unscrew the ther-
mostat fixing bolts, then disassemble
the thermostat housing.
•
Disassemble the thermostat housing
and remove the thermostat.
•
Disassemble the water pipe by
unscrewing the bolts and nuts
installed on the cylinder head.
3.1.16.
Starter
•
Unscrew the starter fixing bolts, then
disassemble the starter.
3.1.17.
Cooling water pump
•
Remove the water pipe connected to
the expansion tank.
•
Remove the water pipe and hoses
connected to the water pump.
•
Unscrew the water pump fixing bolts
and remove the water pump.
- 52 -
DISASSEMBLY
