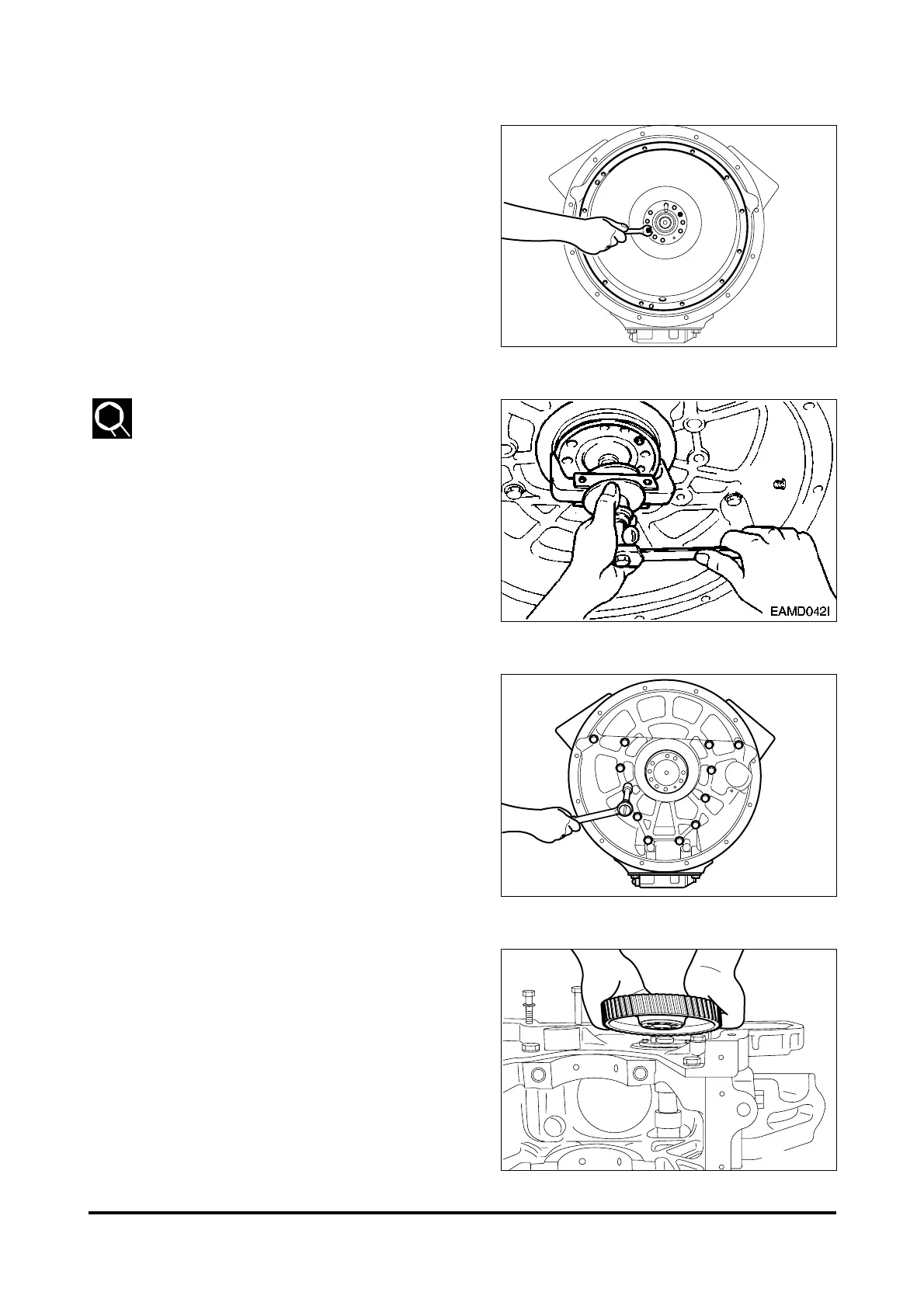

3.1.35.
Fly wheel
•
Position the engine so that the head
installing surface of the cylinder block
faces down.
•
Unscrew the flywheel fixing bolts and
fit a dowel pin.
•
Install flywheel disassembling bolts in
the bolt holes machined on the fly-
wheel, and disassemble the flywheel.
3.1.36.
Oil seal
•
Take off the rear oil seal using an oil
seal disassembling jig.
•
If only the inside guide ring is
removed, use a special tool to take
off the outside seal.
3.1.37.
Flywheel housing
•
Loosen the housing fixing bolts and
disassemble the flywheel housing.
3.1.38.
Cam shaft and tappet
•
Remove the cam shaft gear.
•
Take off the cam shaft gear and thrust
washer.
•
Take out the cam shaft care not to
damage the cam shaft.
•
Slide out the tappets by hand.
- 58 -
