2.10. Intercooler
The intercooler is air to air type and has a large cooling fan capacity. The intercooler life and
performance depends on the intake air condition greatly. Fouled air pollutes and clogs the air
fins of intercooler. As a result of this, the engine output is decreased and engine malfunction
is occurred. So you always check whether the intake air systems like air filter element are worn
or polluted.
- 29 -
TECHNICAL INFORMATION
냉각 공기(냉각 휀)
과급기로부터 온 뜨거운 공기
공기 냉각기를 통과한 공기
(공기온도 : 최대 50 C)
공기 냉각기와 라디에이터
(라디에이터와
공기 냉각기 일체형)

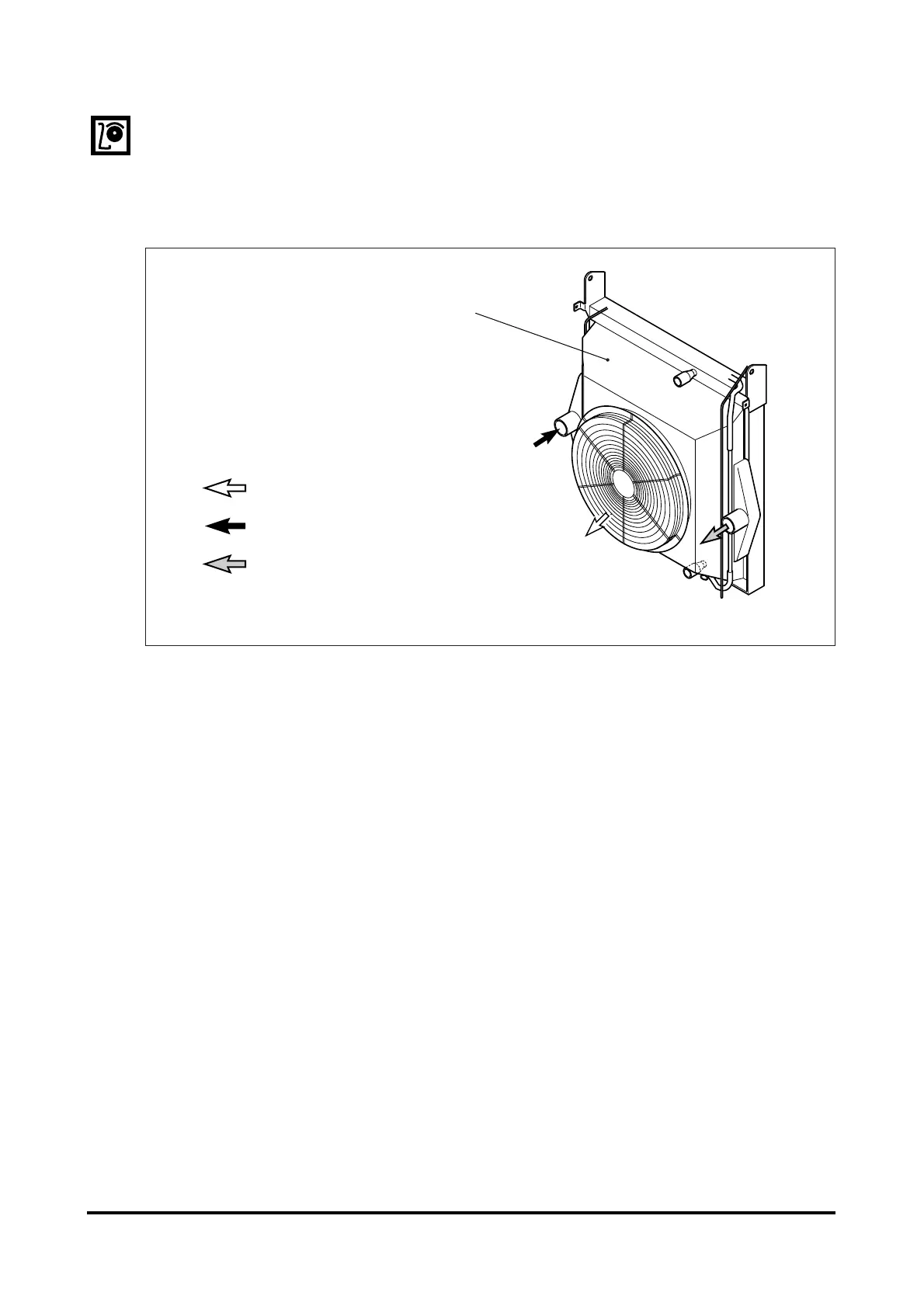

Air/air intercooler
with radiator
(combined radiator)
Air flow by cooling fan (Sucker type fan)
Hot air by turbo charger
compressor
Cooled air to intake
manifold (max. 50˚C)
EA5O4003
