Daewoo DE12T - Flywheel; Magnetic Pick-Up Sensor

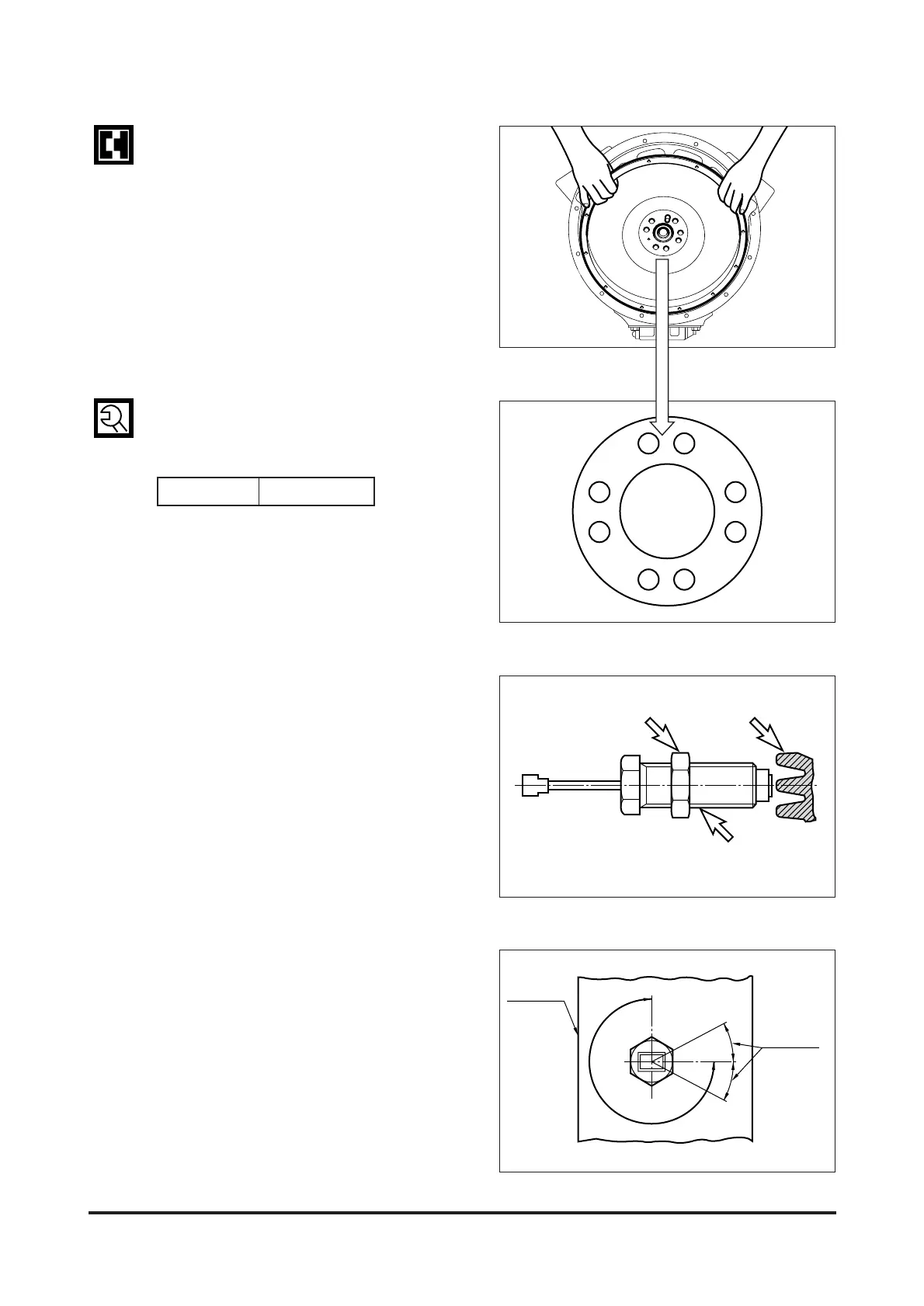

3.3.8. Flywheel
•
Install a guide bar into a bolt hole on
the crank shaft, and lift the flywheel to
align the dowel pin with the pin hole
on the flywheel for temporary assem-
bly operation.
•
Install bolts in the remaining holes,
take out the guide bar, then install a
bolt in the hole where the guide bar
had been inserted.
•
Tighten the fixing bolts using a torque
wrench in a diagonal sequence to
specified torque.
3.3.9. Magnetic pick-up sensor
•
Move the lock nut to hexagonal side of
sensor completely.
•
Rotate (Clcokwise) the pick-up sensor
on flywheel housing, until the end of it
reach on fly wheel ring gear.
•
Then rotate (Counter clockwise) the
pick-up sensor for 270˚ (gap 1.0 mm)
and fix lock nut.
•
Tolerance limit is 27˚ (gap L 0.1 mm)
- 80 -
REASSEMBLY
EAMD081I
EAMD097I
4 8
7
6
2
1
5
3
EPM2030I
Rock nut Ring gear
M16 x 1.5
270。
27
。
27。
Flywheel
Housing
EPM2031I
Tolerance
limit
Torque 18 kg
.
m
