1.8. Engine Assembly

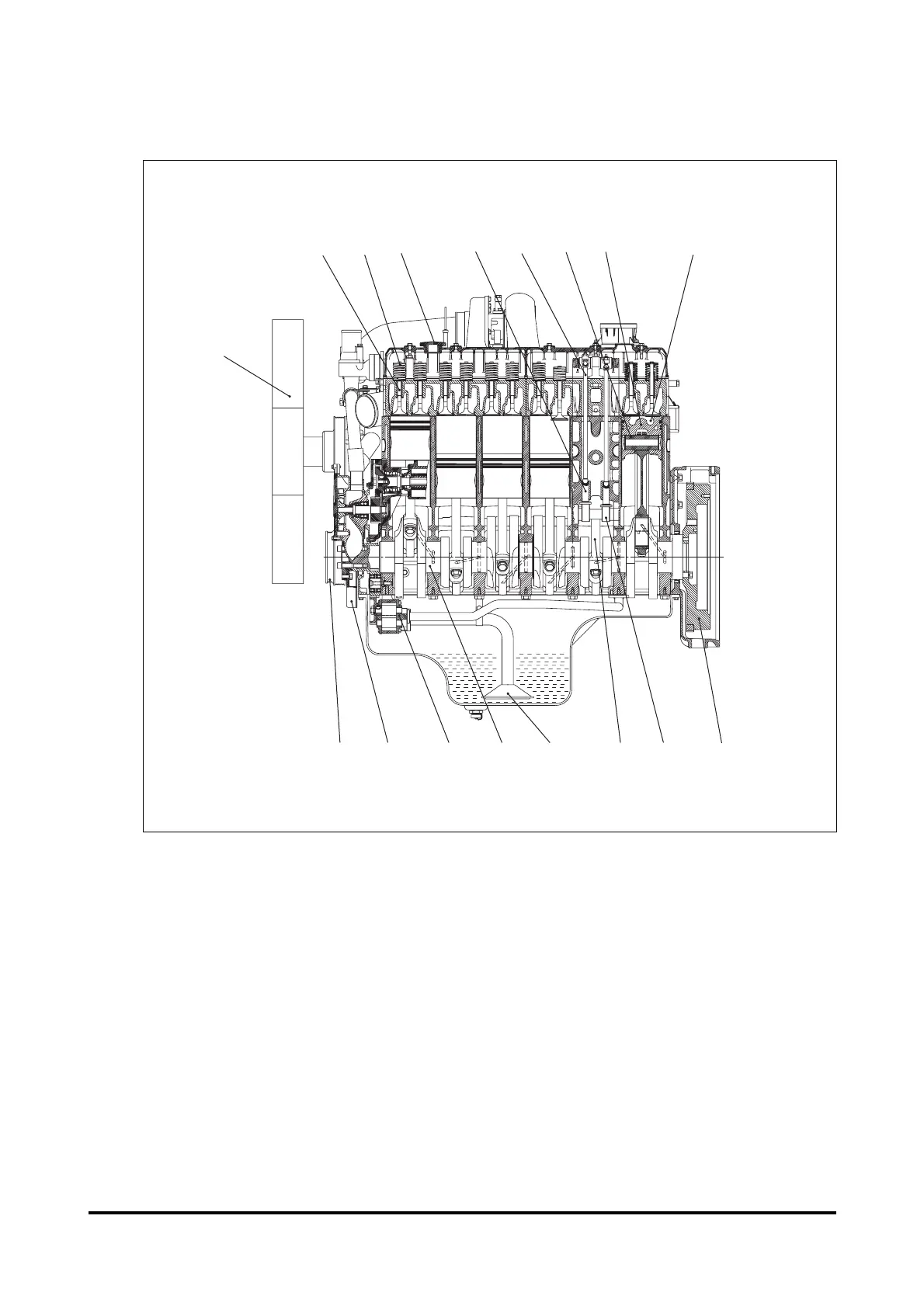

1.8.1. Engine sectional view (longitudinal)
- 12 -
SAFETY REGULATIONS & ENGINE SPECIFICATIONS
1. Cooling water pump
2. Valve
3. Valve spring
4. Oil filler
5. Tappet
6. Push rod
7. Piston pin
8. Piston
9. Piston chamber
10. Crank shaft pulley
11. Vibration damper
12. Oil pump
13. Crank shaft
14. Oil suction pipe
15. Connecting rod
16. Cam shaft
17. Flywheel
EE6OM018
1
234 5 6 78 9
10 11 12 13 14 15 16 17
