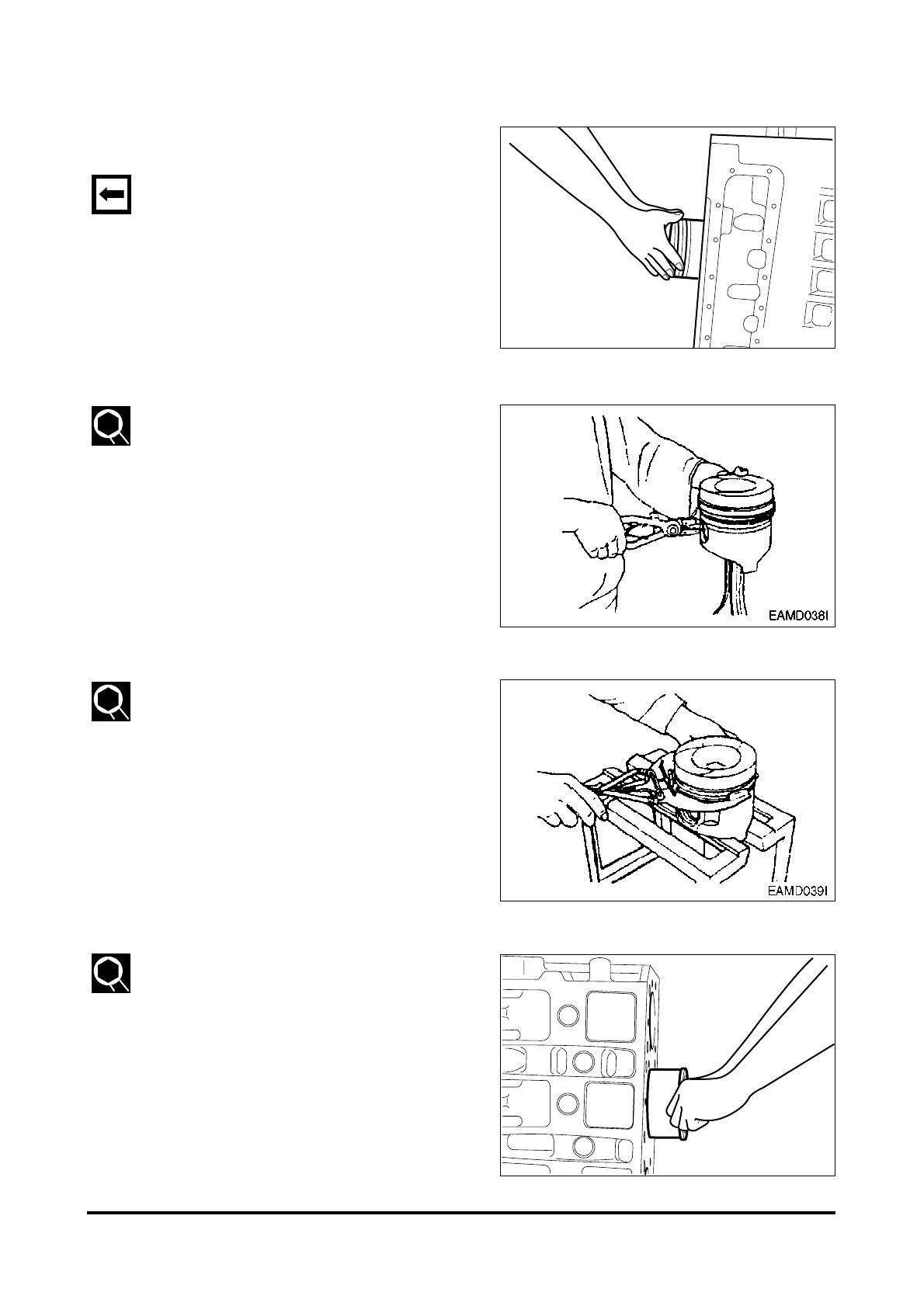

3.1.33.
Piston and connecting rod
•
Disassemble the pistons by two cylin-
ders while turning the crankshaft.
•
Unscrew the connecting rod fixing
bolts and take off the pistons and
connecting rods in the direction of
piston.
•
Remove the piston pin snap rings,
take off the piston pin, then discon-
nect the connecting rod from the pis-
ton.
•
Disassemble the piston rings using
ring pliers.
•
Use care not to interchange the dis-
assembled parts and keep them in
the sequence of cylinder No.
3.1.34.
Cylinder liner
•
Disassemble the cylinder liner using
a liner puller.
- 57 -
