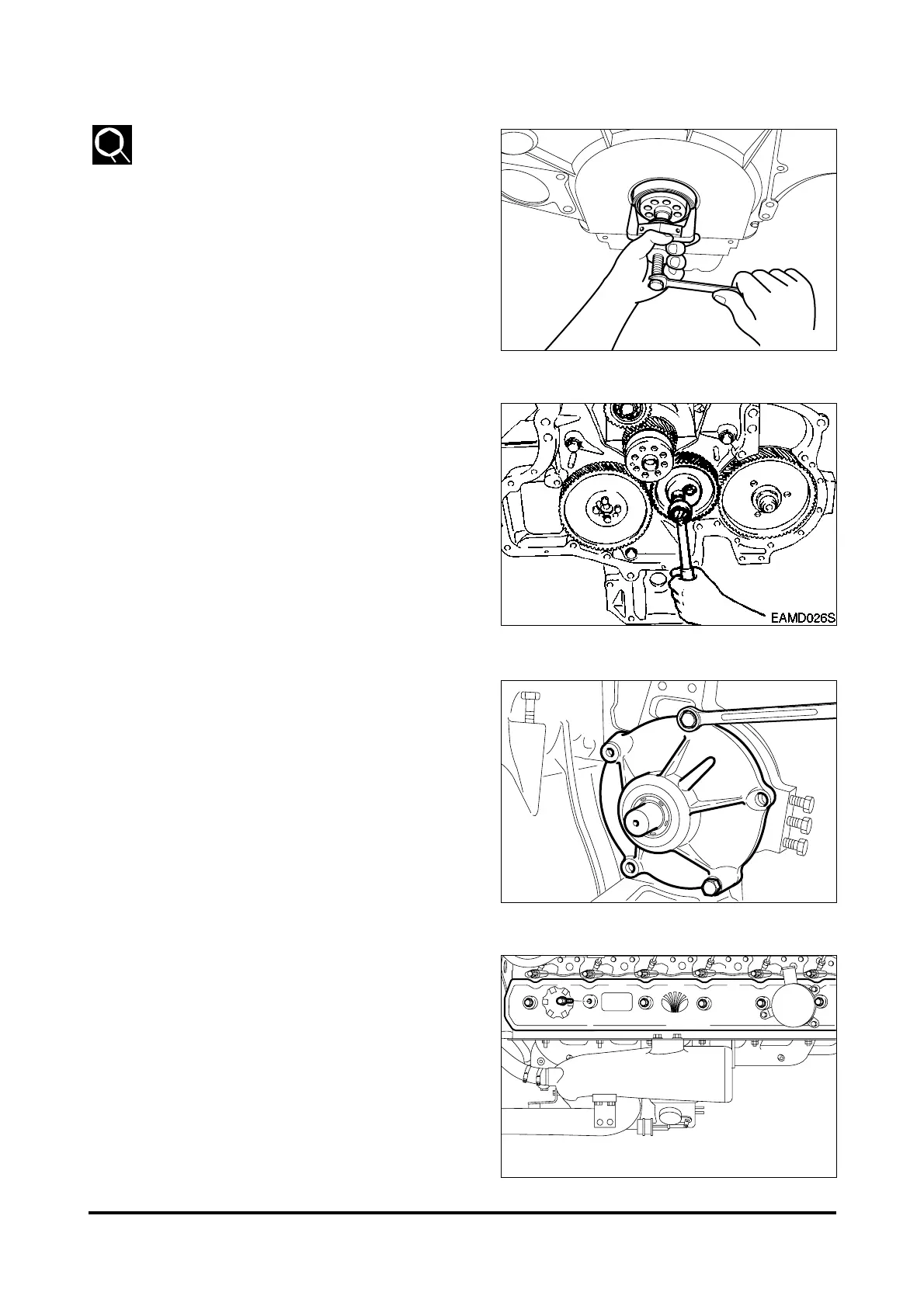

3.1.21.
Timing gear case cover
•
Disassemble the oil seal using an oil
seal removing jig.
•
Remove the cover fixing bolts and
disassemble the cover from the tim-
ing gear case.
3.1.22.
Idle gear
•
Unscrew the idle gear fixing bolts and
disassemble the thrust washer and
idle gear.
•
Disassemble the idle gear pin using a
rubber hammer to prevent damage to
them.
3.1.23.
Fuel injection pump drive
•
Remove the dowel pin for the steering
pump.
•
Unscrew the injection pump drive
shaft bearing housing fixing bolts and
remove the injection pump drive
assembly in which the shaft, gear,
bearings, and housing are put togeth-
er.
3.1.24.
Cylinder head cover
•
Unscrew the cover fixing bolts and
disassemble the cover.
•
Keep the bolts in an assembly state
so that the gaskets and washers may
not be lost, and keep the cover gasket
as assembled with the cover.
