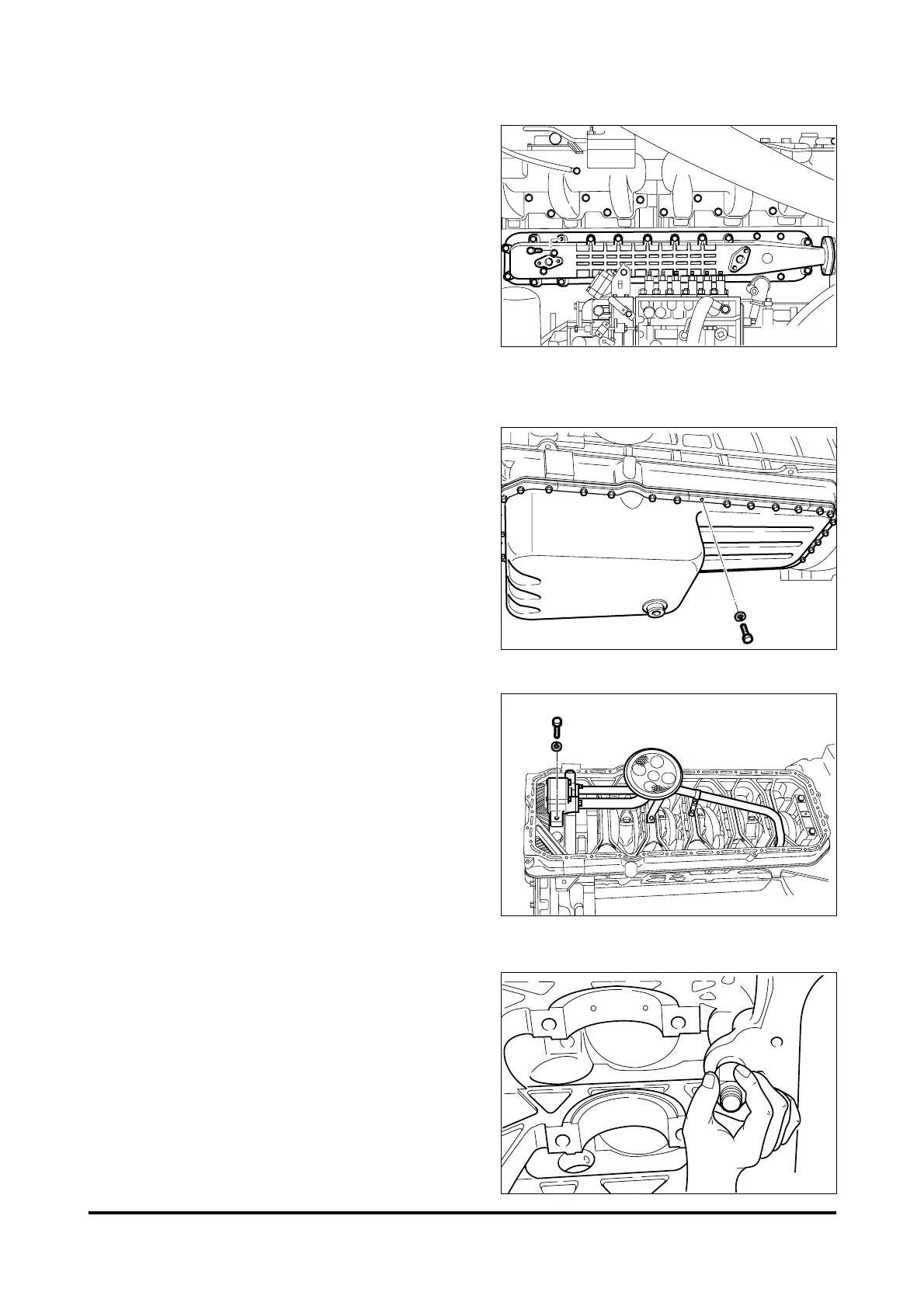

3.1.29.
Oil cooler
•
Remove the water pipe connected to
the water pump.
•
Remove the oil pipe connected to the
cylinder block and oil filter.
•
Unscrew the oil cooler cover fixing
bolts and disassemble the oil cooler
assembly from the cylinder block.
•
Unscrew the oil cooler fixing bolts and
remove the oil cooler from the oil
cooler cover.
3.1.30.
Oil pan
•
Stand the engine with the flywheel
housing facing the bottom.
•
Release the oil pan fixing bolts,
remove the stiffeners then disassem-
ble the oil pan.
3.1.31.
Oil pump and pipe
•
Unscrew the oil suction pipe bracket
bolts, releasing the pipe fixing bolts,
then disassemble the oil suction pipe
assembly.
•
Disassemble the oil pipe feeding oil
from the oil pump to the cylinder
block.
•
Unscrew the oil pump fixing borts and
disassemble the oil pump.
3.1.32.
Relief valve
•
Disassemble the relief valve.
- 56 -
DISASSEMBLY
