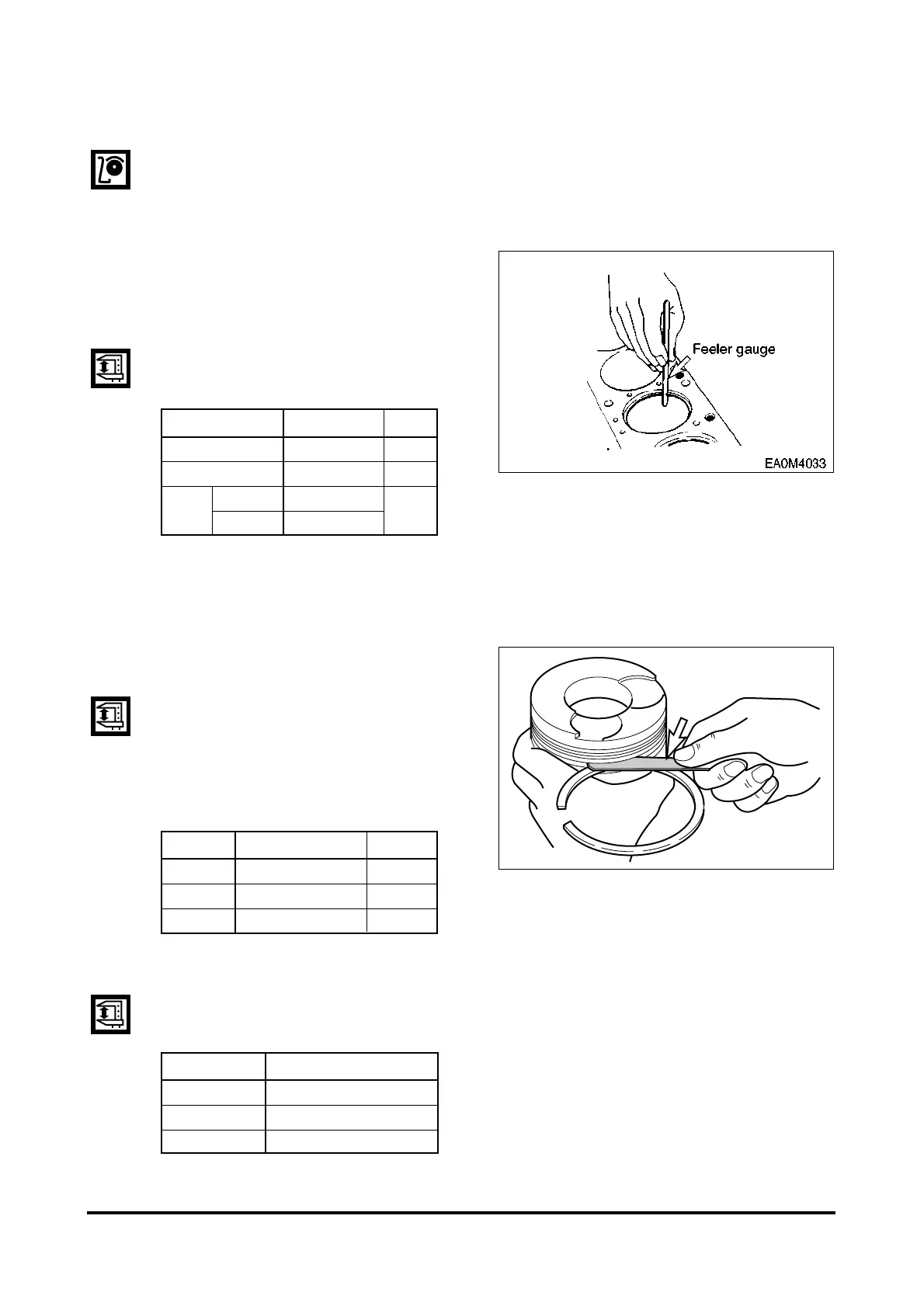

3.2. 9. Piston rings
1) Visual check
Replace the piston rings with new ones if detected worn or broken when the engine is over-
hauled.
2) Piston ring gap
•
Insert the piston ring into the upper
portion of the cylinder liner bore so
that it is held at a right angle to the
cylinder liner wall.
•
Measure the piston ring gap with a
feeler gauge.
•
Replace piston rings with new ones if the gap is beyond the limit
3) Piston ring side clearance
•
Fit the compression ring and oil ring
in the piston ring groove.
•
With a feeler gauge, measure side
clearance of each ring, and replace
either the ring or piston if the mea-
sured value is beyond the specified
limit.
4) Piston ring tension
•
With a tension tester, measure piston ring tension.
•
Replace the piston ring if the measured value is beyond the limit.
- 73 -
INSPECTION AND MEASUREMENT
EA0M4032
간극 게이지
Standard Limit
Top ring 0.30 ~ 0.45 mm 1.5 mm
2nd ring 0.35 ~ 0.50 mm 1.5 mm
Oil ring
DE12T/TI/TIA 0.30 ~ 0.50 mm
1.5 mm
DE12TIS 0.40 ~ 0.70 mm
Standard Limit
Top ring -
2nd ring 0.07 ~ 0.102 mm 0.15 mm
2nd ring 0.05 ~ 0.085 mm 0.15 mm
feeler
gauge
Standard
Top ring 2.27 ~ 3.41 kg
2nd ring 2.0 ~ 3.0 kg
Oil ring 4.03 ~ 5.57 kg
