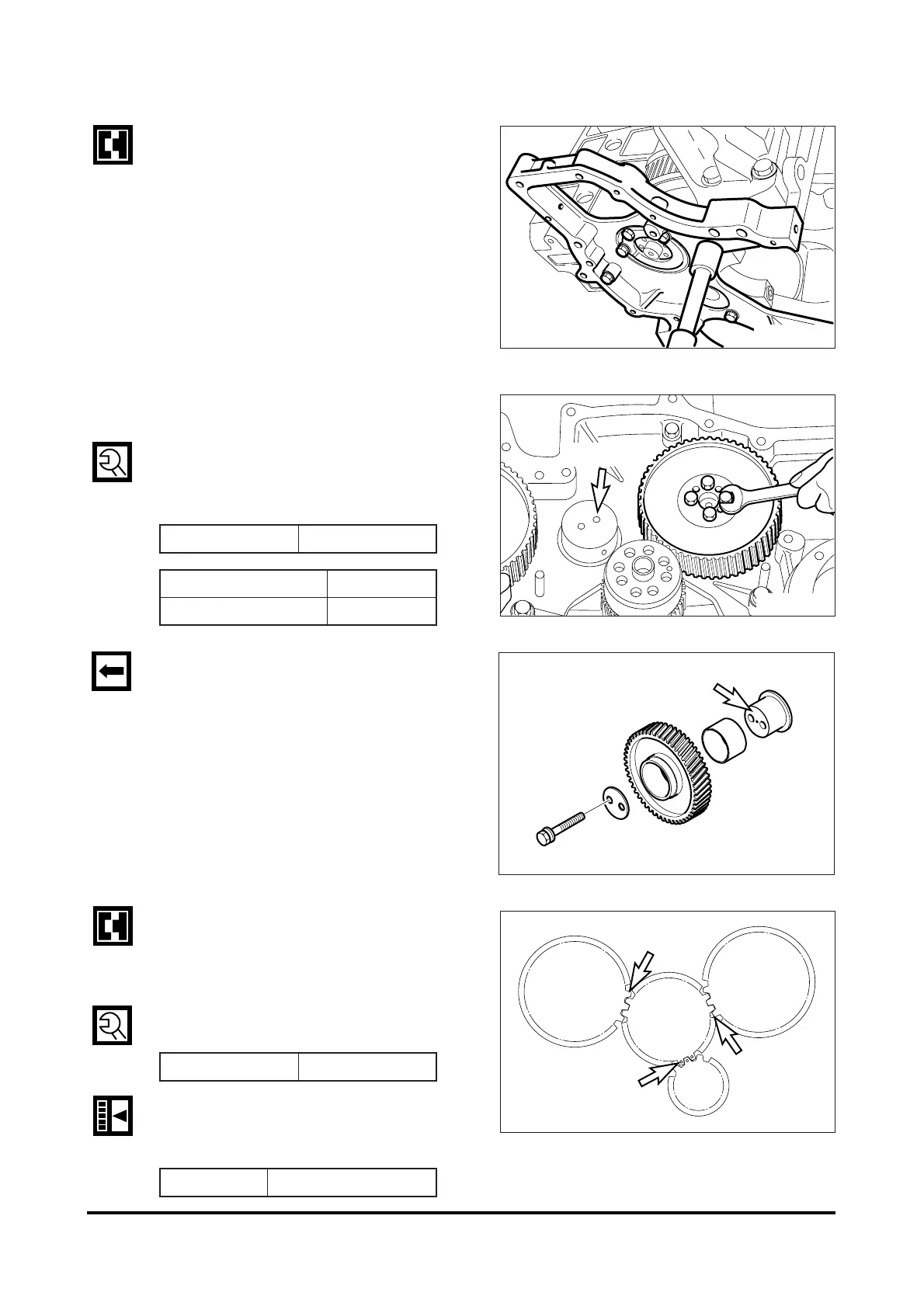

3.3.10.Timing gear case
•
Mount gasket using dowel pin on the
cylinder block.
•
Install the timing gear case by aligning
the dowel pin with the dowel pin hole
on the timing gear case.
3.3.11.Timing gear
•
Install the oil pump idle gear onto the
No.7 bearing cap.
•
Install a thrust washer over the
camshaft and assemble the cam gear
by aligning it with camshaft key groove.
•
With the oil port on the idle gear pin
facing the cylinder block, install the
idle gear pin.
•
Install the idle gear by coinciding the
marks impressed on the crank gear,
cam gear, fuel injection pump drive
gear, and idle gear.
•
Install a thrust washer on the idle gear
and tighten to specified torque.
•
Check and adjust the amount of back-
lash between gears using a feeler
gauge.
- 81 -
REASSEMBLY
