3.1.11.

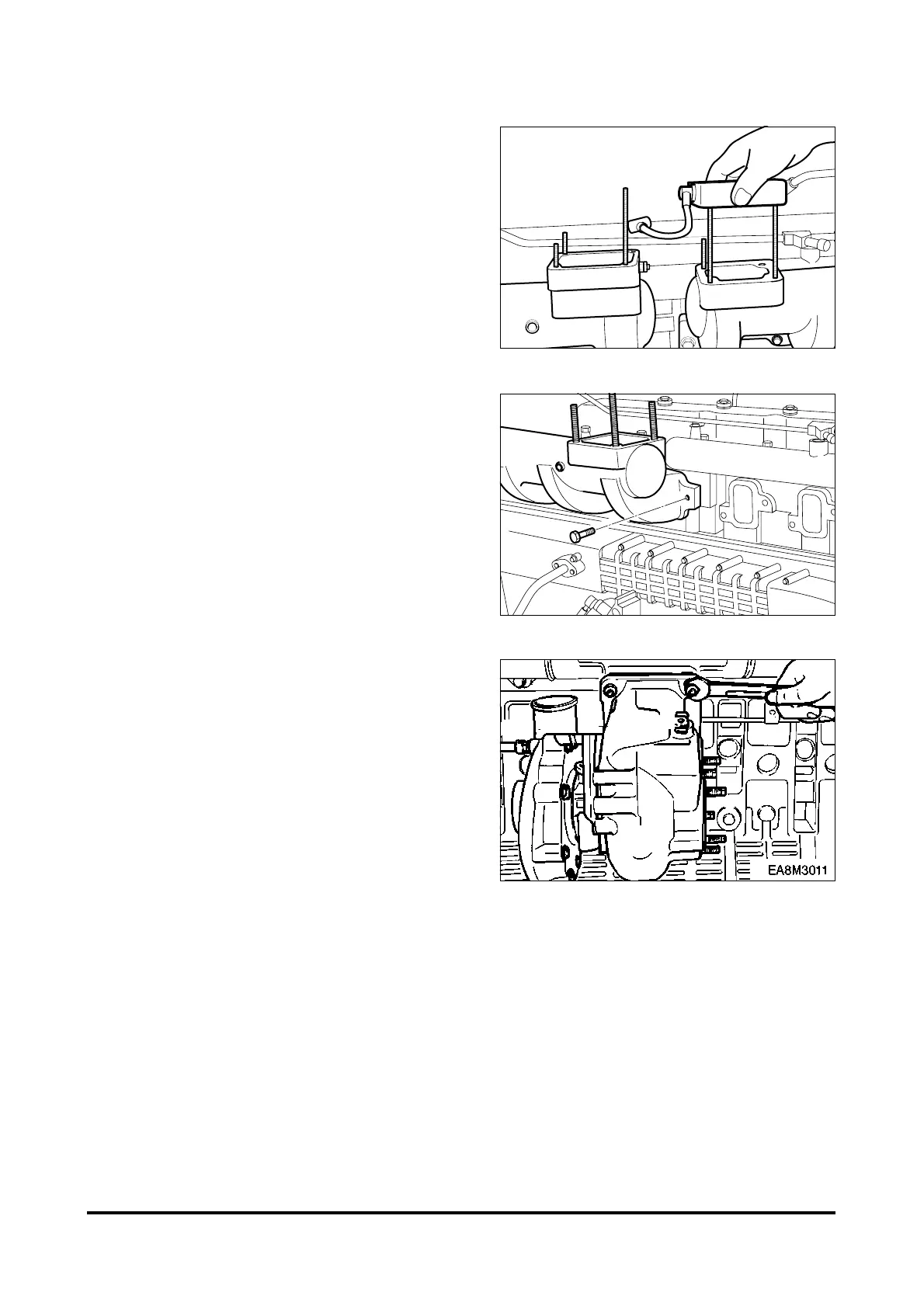

Air heater
•
Remove the electrical wiring for the
air heater.
•
Disassemble the intake pipes by
loosening the nuts installed thereon.
•
Disassemble the air heater and gas-
ket.
3.1.12.
Intake manifold
•
Remove the air hose connected to
the fuel injection pump.
•
Loosen the intake manifold fixing
bolts, then disassemble the intake
manifold.
3.1.13.
Turbo charger
•
Release the clamp screw of the rub-
ber hose connected to the intake
manifold, and take off the intake
pipes both simultaneously.
•
Unscrew the exhaust pipe bracket fix-
ing bolts, release the nuts installed on
the turbocharger, then disassemble
the exhaust pipe.
•
Remove the turbocharger after remov-
ing the oil supply pipe and return pipe
and releasing the fixing nuts.
- 51 -
