1CAB TILTING GEAR
General LF45/55 series
2-2

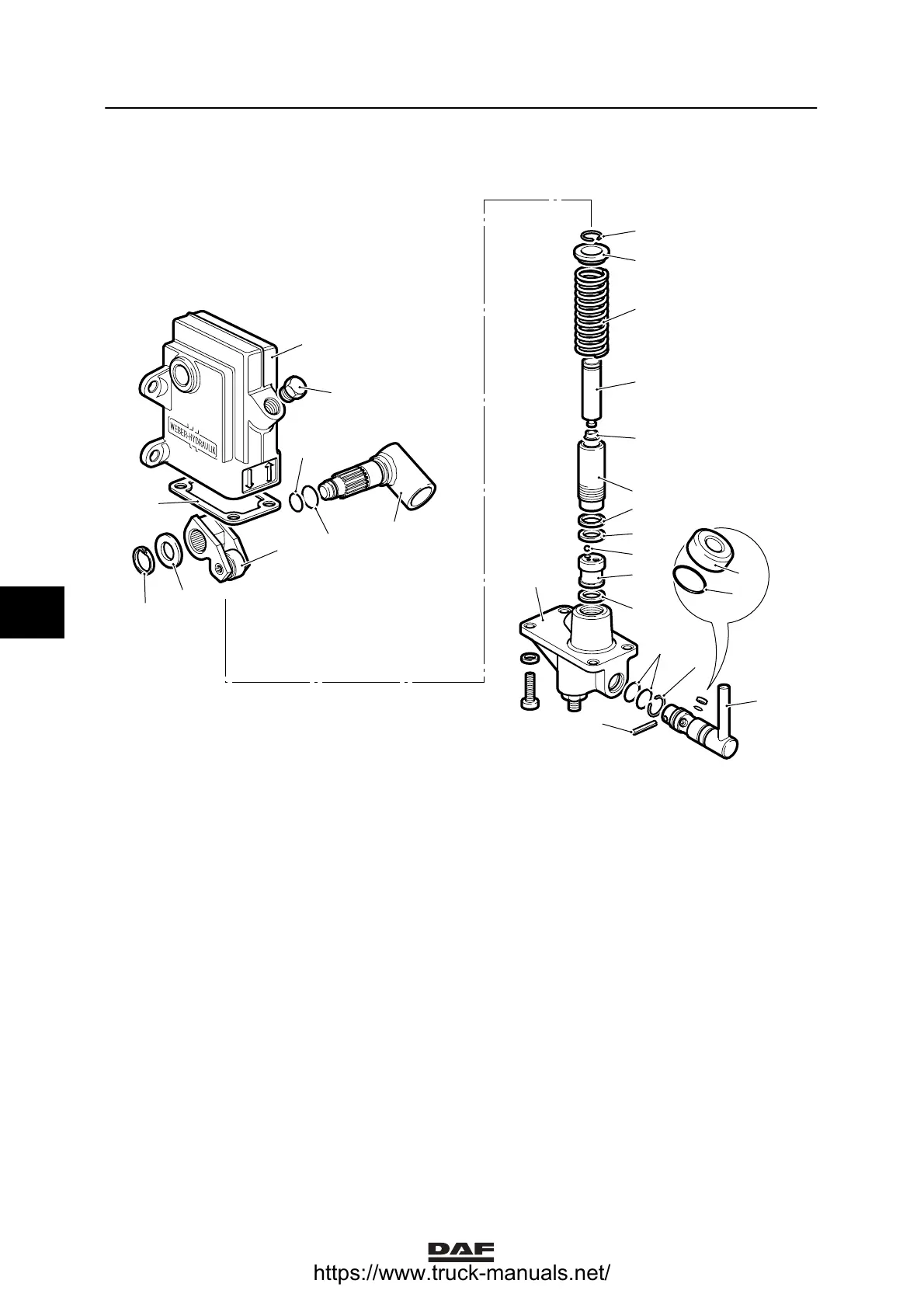

2.2 OVERVIEW DRAWING, CAB TILTING PUMP
21
27
1
2
11
10
9
8
18
19
7
6
13
12
14
16
17
20
15
26
5
4
24
23
22
3
25
K1 01 103
Legend
1. Reservoir
2. Filler plug
3. Lever block
4. O-ring
5. O-ring
6. Cam
7. Circlip
8. Washer
9. Spring
10. Plunger
11. Grooved ring
12 Plunger housing
13. Seal
14. Copper washer
15. Ball
16. Valve block
17. Copper washer
18. O-ring
19. Seal
20. Direction selector
21. Pin
22. Circlip
23. O-ring
24. Pump housing
25. Spacer
26. Spring washer
27. Gasket
