LF45/55 series Removal and installation
SEATS
4-3

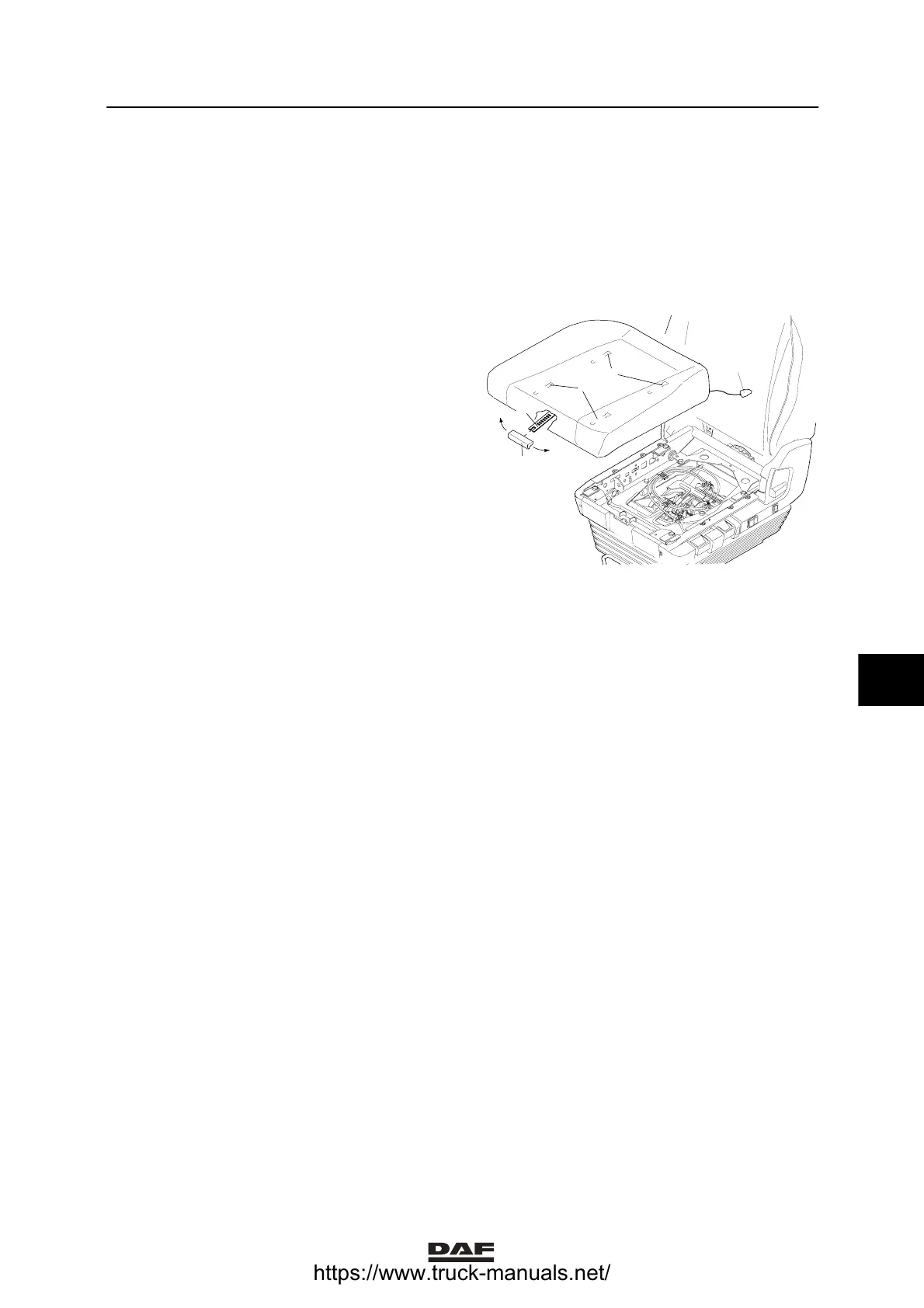

4.4 REMOVAL AND INSTALLATION, SEAT SQUAB
Removing seat squab
1. Slide the seat squab into the frontmost
position.
2. Detach the V elcro between the backrest
and seat squab.
3. Put a screwdriver between the operating
lever (1) of the seat squab and the seat
frame.
4. Push the lever (1) up and to the right (A)
until you can slide it over the locking
mechanism on the seat frame.
5. Pull the squab further forwards. Lift the
squab from the guides (3, 4).
6. In the case of seat heating, disconnect the
electrical connector (5) at the rear and at
the bottom of the seat squab.
7. If necessary, take the hand grip (2) off the
operating lever (1).
Installing seat squab
1. If necessary, fit the hand grip (2) on the
operating lever (1).
2. When installing the seat squab, slide it at
the rear end onto the frame approximately 2
cm into the rearmost guides (3).
3. When doing so, press the seat squab down
at the front and slide the seat squab into the
frontmost guides (4) until the operating
lever (1) of the seat squab snaps into
position.
4. In the case of seat heating, connect the
connector (5).
5. In the case of a stepwise adjustable seat
squab check after installation that the slat of
the operating lever (1) snaps into all
openings. If necessary, move the slat to the
left (B) or right (A) until it snaps.
1
2
A
B
3
4
5
K1 01 381
