Removal and installation LF45/55 series
4-4

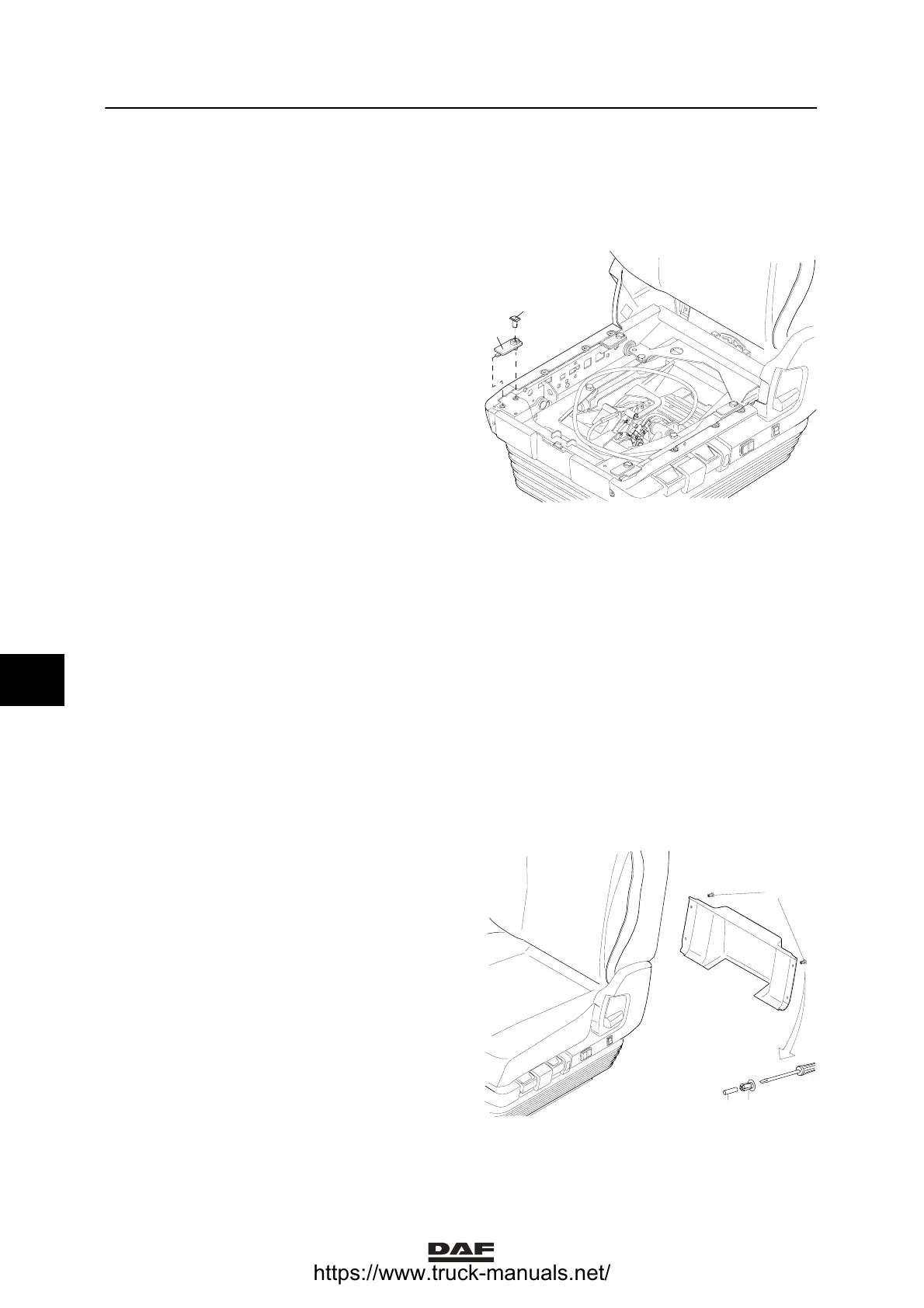

4.5 REMOVAL AND INSTALLATION, SEAT SQUAB GUIDE
Removing seat squab guide
1. Remove the seat squab.
2. Remove the central circlip (1) from the seat
squab guide (2).
3. Remove the seat squab guide (2) from the
seat frame.
Installing seat squab guide
1. Fit the seat squab guide (2) on the seat
frame.
2. Fit the central circlip (1) into the seat squab
guide.
3. Fit the seat squab.
2
1
K1 01 382
4.6 REMOVAL AND INSTALL ATION, FRONT COVER PANEL
Removing front cover panel
1. Remove the attachment screws of the front
cover panel.
2. Detach the front cover panel from the side
panels.
Installing front cover panel
1. Fit the front cover panel to the side panels
using the attachment screws.
4.7 REMOVAL AND INSTALLATION, REAR COVER PANEL
Removing rear cover panel
1. Press the central locking pins (2) out of the
attachment plugs (1), collect the locking
pins (2) and keep them.
2. Take the attachment plugs (1) out of the
attachment holes of the rear cover panel.
3. Detach the rear cover panel from the side
panels.
1
1
2
K1 01 383
