1
LF45/55 series Removal and installation
SEATS
4-5

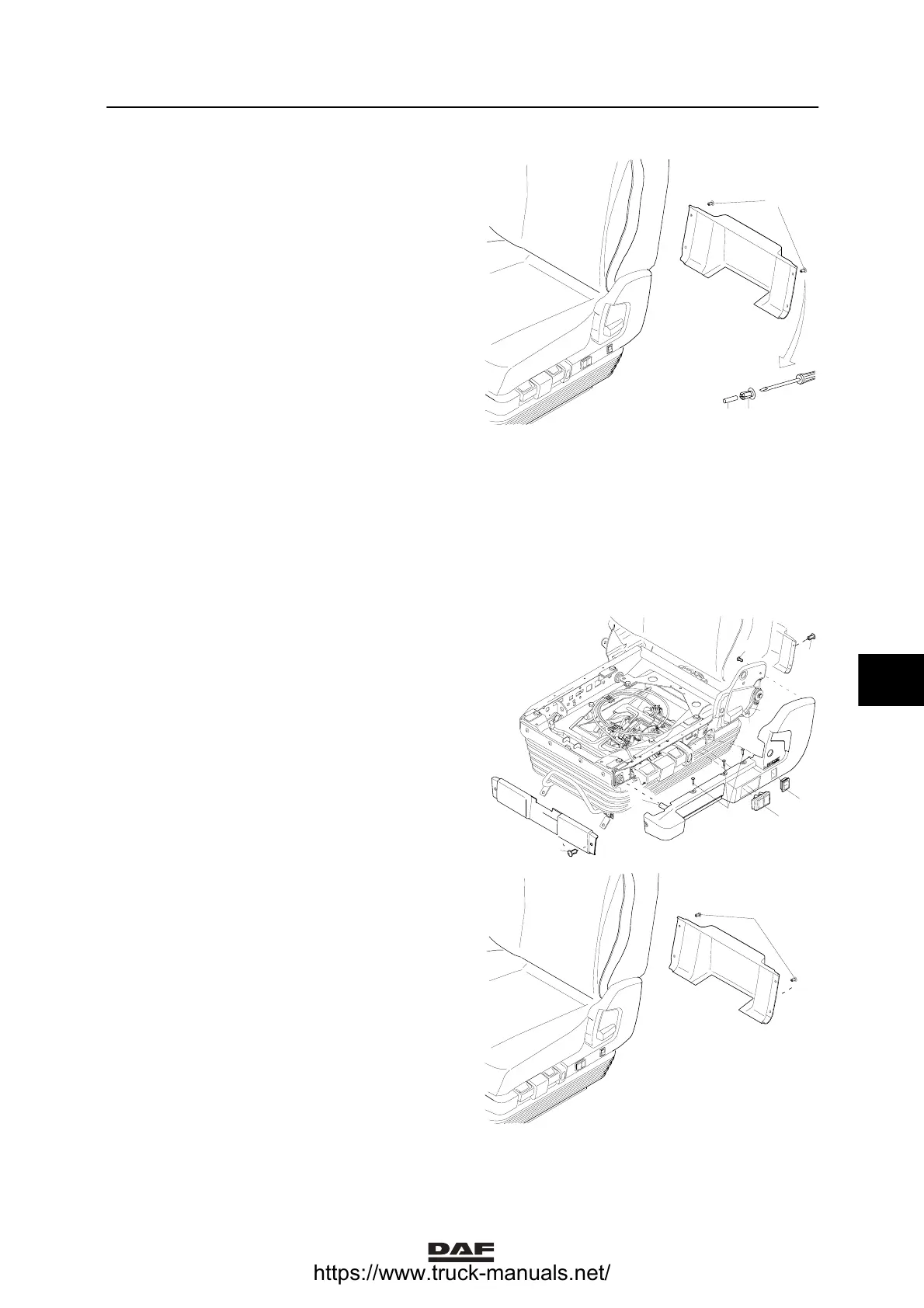

Installing rear cover panel
1. Fit the rear cover panel to the side panels
using the attachment plugs (1).
2. Secure the attachment plugs (1) by fitting
the pins (2).
1
1
2
K1 01 383
4.8 REMOVAL AND INSTALLATION, COVER PANEL ON CONT ROL SIDE
Removing cover panel on control side
1. Remove the seat assembly.
2. Remove the seat squab.
3. Remove the front cover panel (5).
4. Remove the rear cover panel (1).
5. Fold the backrest forwards.
6. Remove the attachment screw (3) on the
inside of the backrest hinge bracket.
7. Fold the backrest back.
8. Remove the attachment screws (2) on the
seat frame.
9. Disconnect the air pipes on the switches of
the lumbar support adjustment (8). You may
mark the sequence of connection.
10. Disconnect the connector on the seat
heating switch (9).
11. Disconnect the cover panel of the seat
frame and tilt the cover panel over the
backrest adjuster lever (7).
1
5
2
3
4
7
6
9
8
1
K1 01 384
7
ǹ 0210
