1SEATS
Removal and installation LF45/55 series
4-6

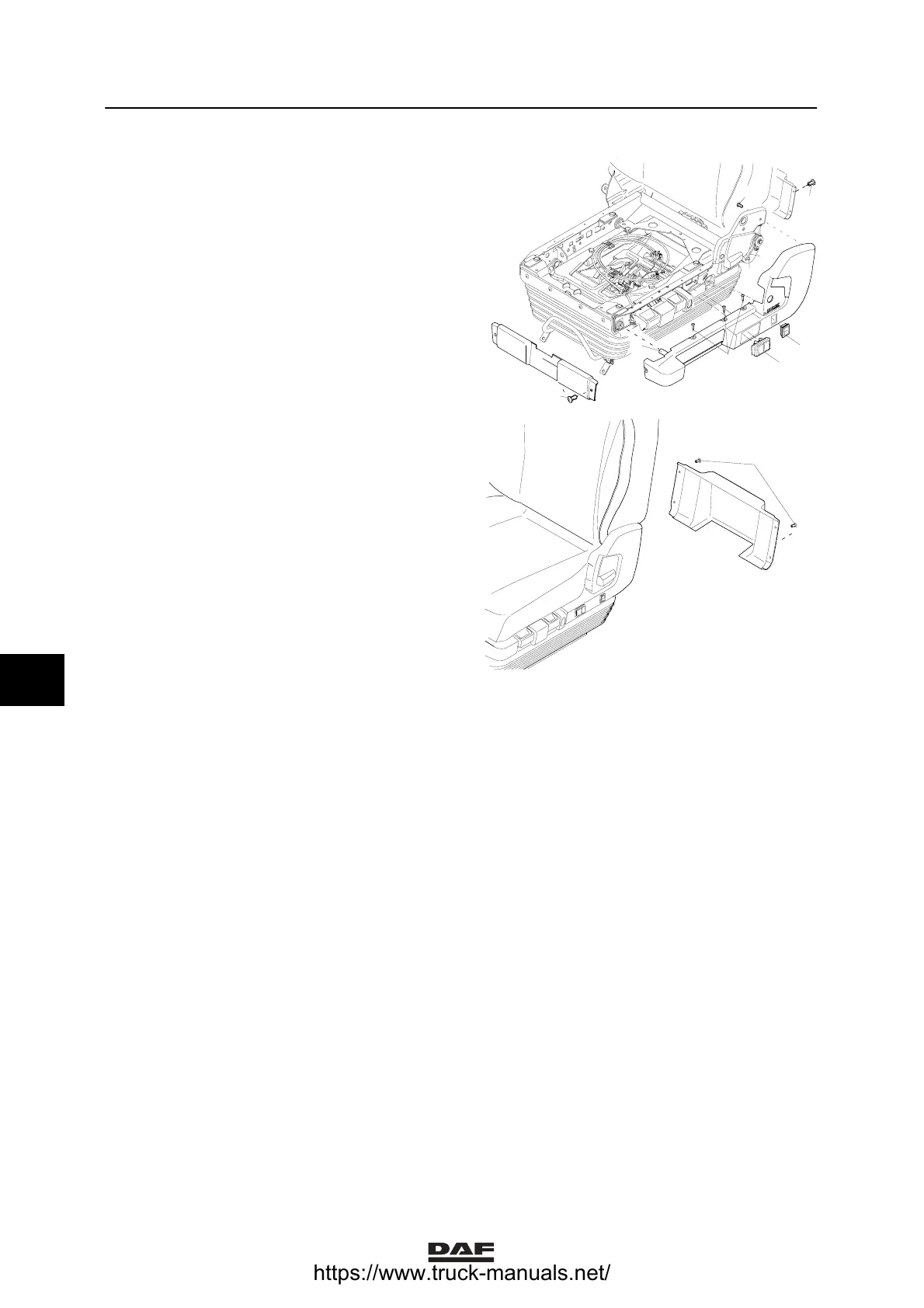

Installing cover panel on control side
1. Tilt the cover panel into mounting position
over the backrest adjuster lever (7). Check
that the reset spring (6) is still on the cam of
the backrest adjuster lever (7).
2. Fit the air pipes of the lumbar support
adjuster (8).
3. Fit the connector of the seat heating
switch (9).
4. Fit the cover panel to the seat frame using
the centring pin (4) and the attachment
screws (2).
5. Fit the cover panel to the backrest hinge
bracket using the att achment screw (3).
6. Fit the front cover panel (5), rear cover
panel (1) and the seat squab.
7. Install the seat assembly.
1
5
2
3
4
7
6
9
8
1
K1 01 384
7
ǹ 0210
