Removal and installation LF45/55 series
4-16

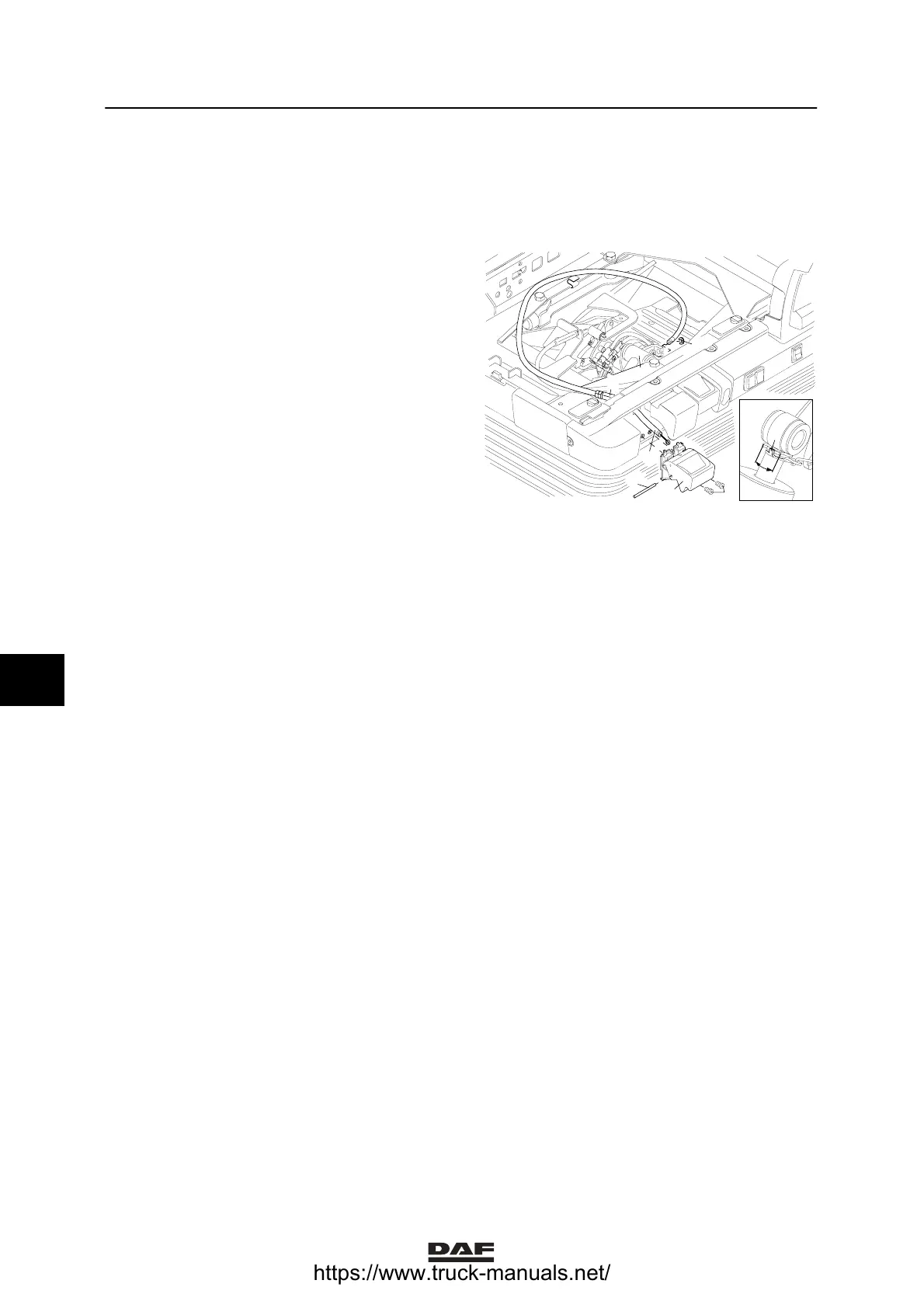

4.19 REMOVAL AND INSTALLAT ION, VERTICAL DAMPING ADJUSTER
Removing vertical damping adjuster
1. Remove the seat squab.
2. Remove the attachment bolts (2) of the
vertical damping lever (1).
3. Disconnect the vertical damping lever (1)
from the seat frame.
4. Press the attachment pin (3) of the control
cable (4) from the vertical damping
lever (1).
5. Disconnect the control cable (4) from the
vertical damping lever (1).
6. Disconnect the circlip (5) of the control
cable on the fixing bracket near the shock
absorber (6).
7. Unhook the control cable from the control
lever of the shock absorber (6).
Installing vertical damping adjuster
1. Hook the control cable into the control lever
of the shock absorber (6).
2. Fasten the control cable in the fixing
bracket near the shock absorber (6).
3. Secure the control cable on the fixing
bracket using circlip (5).
4. Fit the control cable in the opening in the
seat frame.
5. Fit the control cable (4) in the operating
lever (1) using the attachment pin (3).
6. Fit the vertical damping lever (1) on the
seat frame using the attachment bolts (2).
7. Loosen the lock nut of the control cable
adjuster (7). Using the nut, adjust the cable
until the movement of the control lever (8)
on the shock absorber (6) covers the entire
range (A).
8. Fit the seat squab.
9. Check the system for proper operation.
