LF45/55 series Removal and installation
SEATS
4-17
4.20 REMOVAL AND INSTALLAT ION, HEIGHT ADJUSTMENT HANDLE
Removing height adjustment handle
1. Remove the seat squab.
2. Remove the nut (4) of the control cable (3).
Unhook the cable from the bracket (1).
3. Unhook the cable eye (5) from the control
lever (7) of the height control valve.
4. Remove the attachment screws (1) of the
operating handle (6).
5. Remove the operating handle (6) from the
seat frame.
6. Remove the guide block (2) for the control
cable (3) from the seat frame.
7. Remove the tension springs from the
operating lever (6).
8. Remove the attachment pin from the
components of the operating lever (6).
9. Detach the components of the operating
handle (6) and unhook the control cable (3)
from the attachment.
Installing height adjustment handle
1. Hook the control cable (3) into the interior of
the operating handle (6).
2. Assemble both components of the
operating handle (6) using the attachment
pin.
3. Fit the tension springs in the operating
handle (6).
4. Fit the operating handle (6) with control
cable (3) and guide block (2) on the seat
frame.
5. Fit the control cable (3) on the bracket (1).
6. Hook the cable eye (5) into the lever (7) on
the height control valve.
7. If necessary, readjust the control cable play.

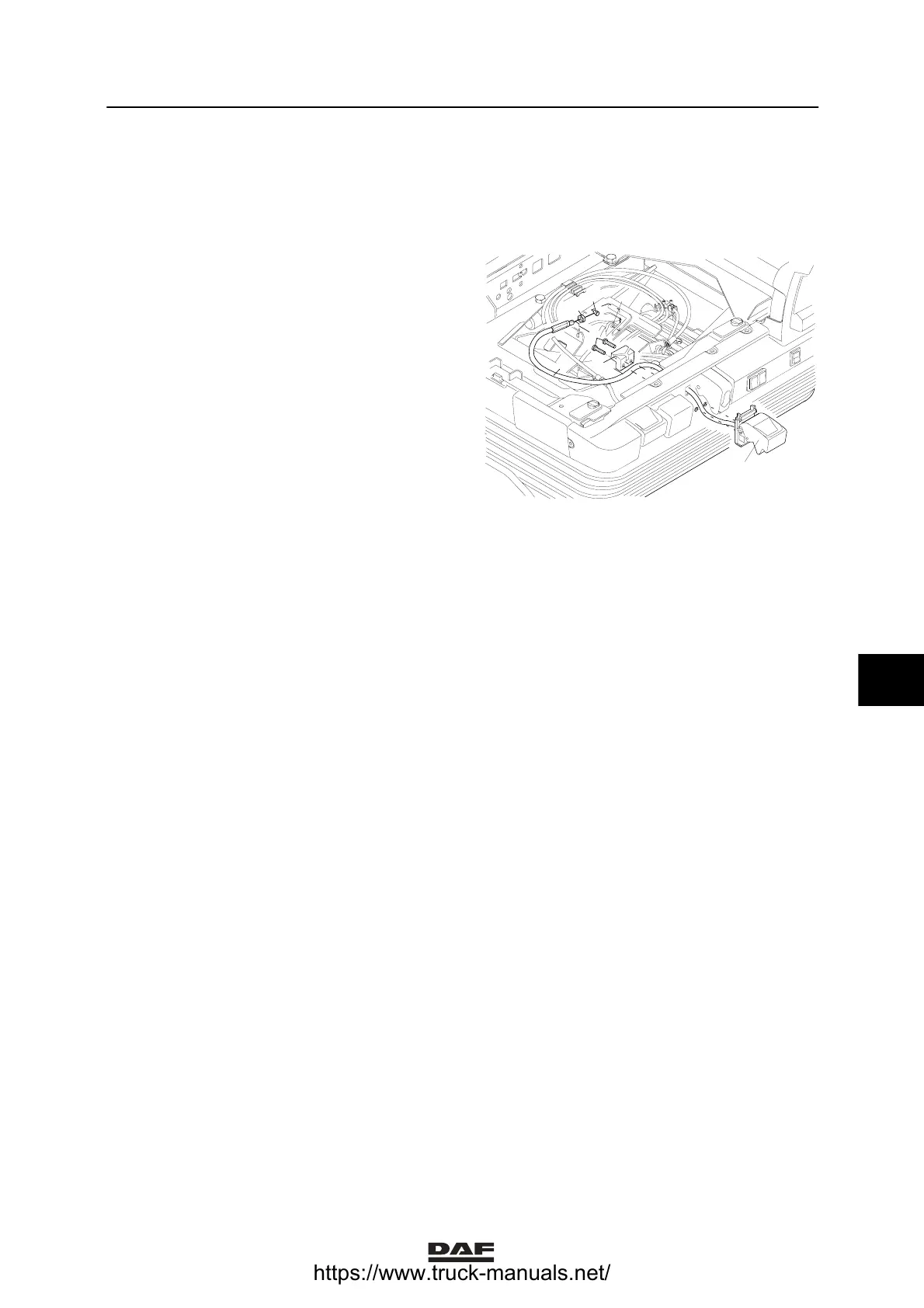

1
2
3
4
5
6
7
K1 01 394
7
ǹ 0210
