1SEATS
Removal and installation LF45/55 series
4-18

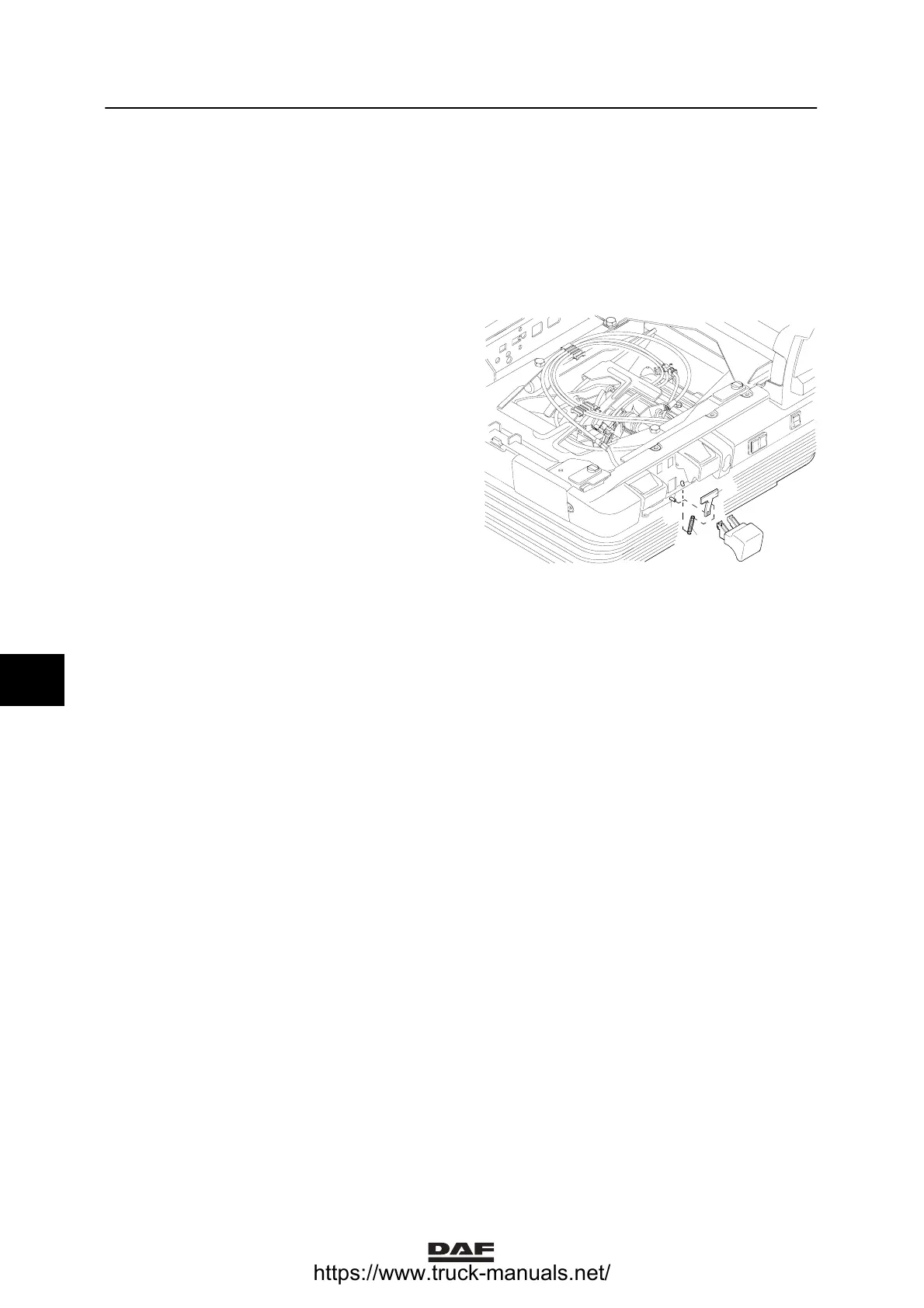

4.21 REMOVAL AND INSTALLAT ION, SEAT TILTING HANDL E
Removing seat tilting handle
1. Remove the seat squab.
2. Press the locking lip at the bottom of the
control button. Remove the control button
from the handle.
3. Remove the reset spring (3) from the
handle.
4. Push the spring end (1) of the seat angle
lock out of the recess in the metal
T-piece (2).
5. Remove the metal T -piece (2).
6. Tilt the handle out of the seat frame.
Installing seat tilting handle
1. Tilt the handle into the seat frame.
2. Place the metal T -piece (2) back in the
handle. Click the spring end (1) of the seat
angle lock out into the recess in the metal
T-piece (2).
3. Fit the reset spring (3) to the handle and the
seat frame.
4. Click the control button onto the handle.
5. Fit the seat squab.
1
2
3
K1 01 395
7
ǹ 0210
