LF45/55 series Removal and installation
SEATS
4-19

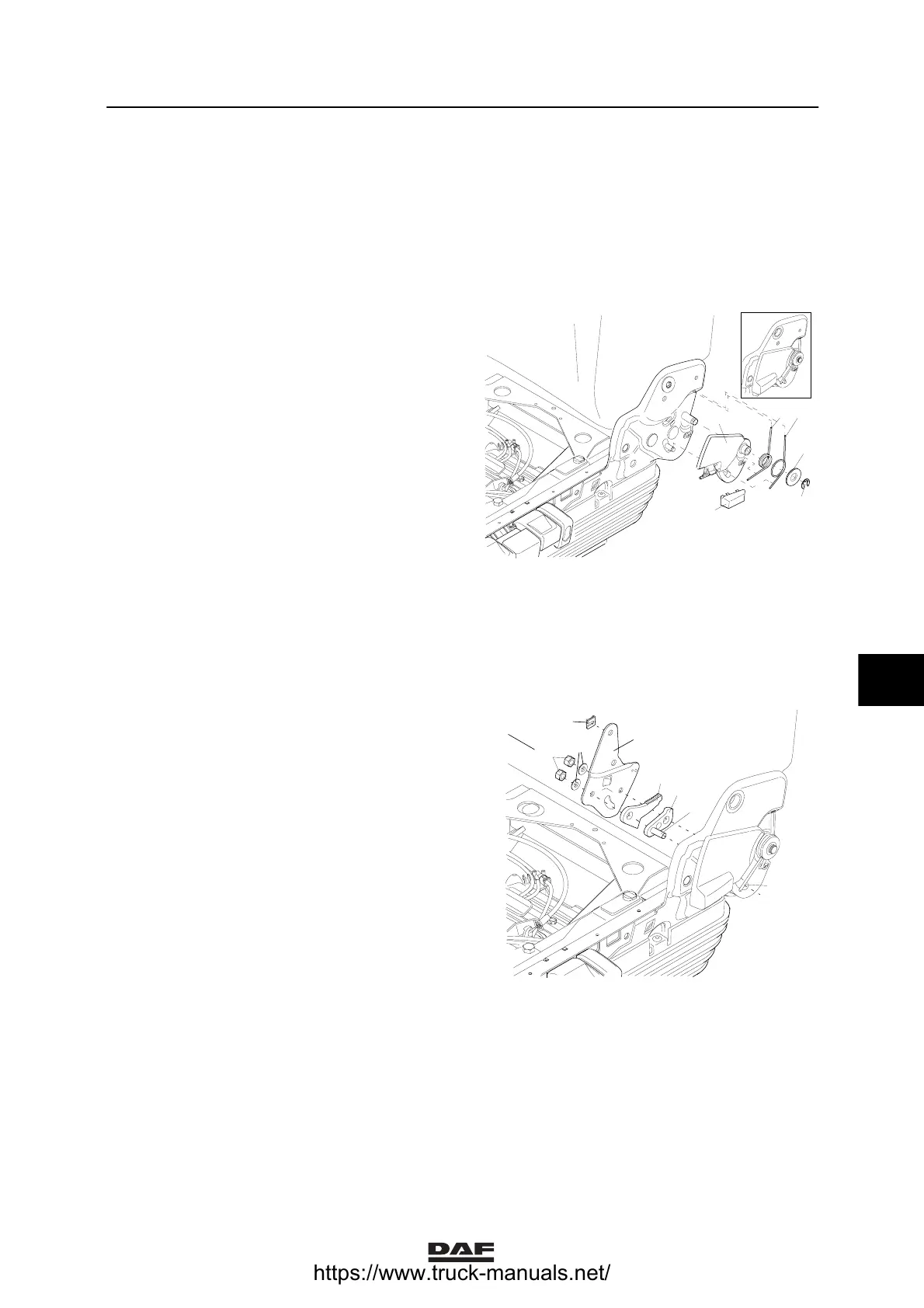

4.22 REMOVAL AND INSTALLATION, BACKREST ADJUSTER LEVER
Removing backrest adjuster lever
1. Remove the seat assembly.
2. Remove the seat squab.
3. Remove all cover panels.
4. Remove the circlip (1) on the operating
lever (4).
5. Remove the lock washer (6) on the
operating lever (4).
6. Slide the operating lever (4) with the springs
(2, 3) off the hinge pin. Pay attention to the
position of the springs (2, 3).
Installing backrest adjuster lever
1. Fit the operating lever (4) with the springs
(2, 3) to the hinge pin.
2. Fit the lock washer (6) and the circlip (1) to
the hinge pin.
3. Fit the cover panels and the seat squab.
4. Install the seat assembly.
2
1
4
5
3
6
K1 01 396
4.23 REMOVAL AND INSTALLAT ION, BACKREST ADJUSTER
Removing the backrest adjuster
1. Remove the lumbar support.
2. Remove the circlip (1) from the locking
plate (4) of the backrest adjuster .
3. Remove the attachment nuts (2) from the
locking plate (4).
4. Hook the spring end (8) of the cam (7) onto
the operating pin (6)
5. Remove the locking plate (4) with the
locking pin (5) and the operating pin (6).
2
3
4
1
5
6
7
8
K1 01 397
7
