LF45/55 series Removal and installation
SEATS
4-21

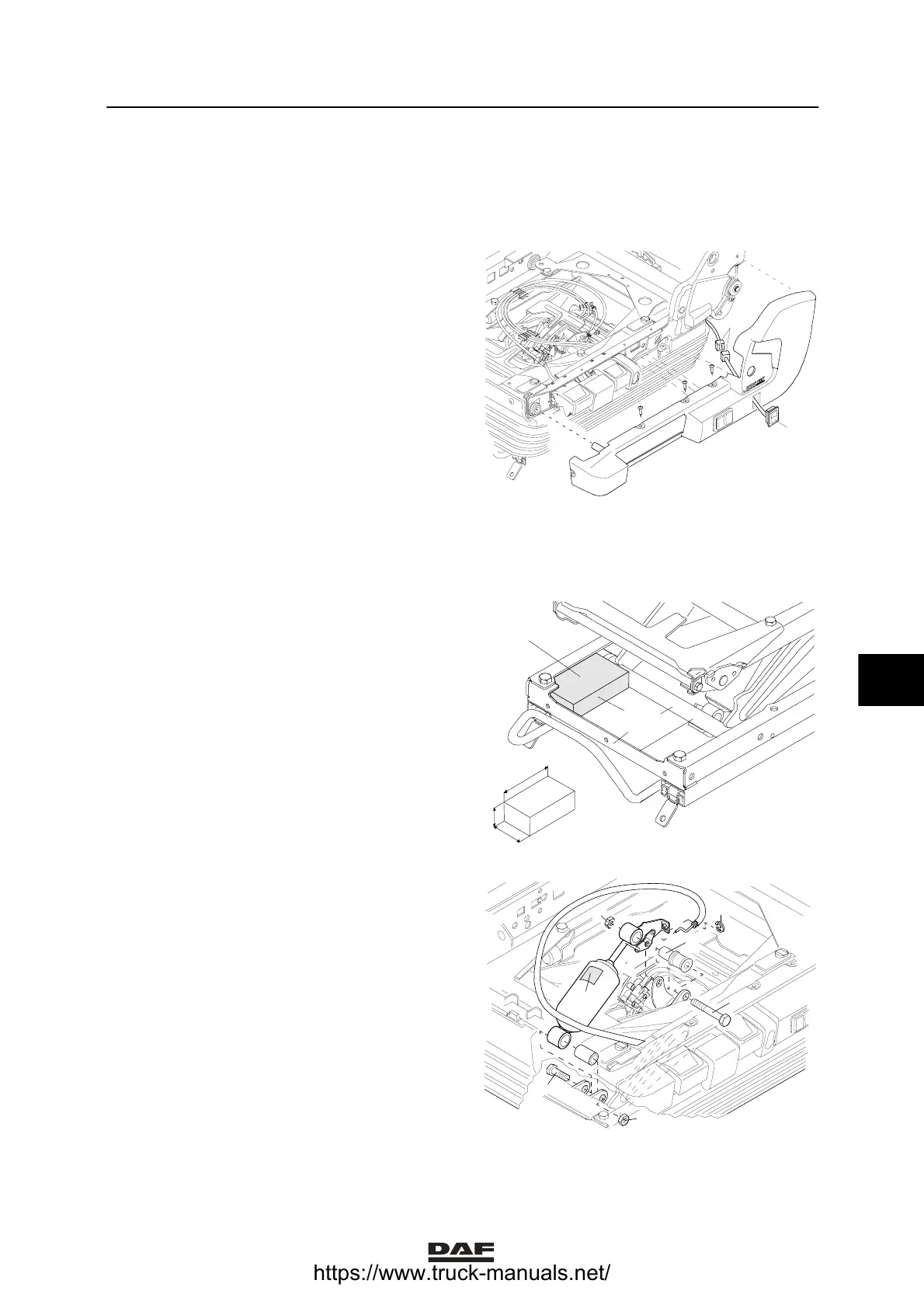

4.25 REMOVAL AND INSTALLAT ION, SEAT HEATING SWITCH
Removing seat heating switch
1. Remove the cover panel on control side.
2. Unplug the connector (1).
3. Remove the seat heating switch (2) from
inside the cover panel.
Installing seat heating switch
1. Connect the connector (1).
2. Fit the seat heating switch (2) in the cover
panel.
3. Fit the cover panel on control side.
2
1
K1 01 399
4.26 REMOVAL AND INSTALLAT ION, VERTICAL DAMPER
Removing vertical damper
1. Remove the seat assembly.
2. Remove the seat squab.
3. Lock the seat in its highest position using a
spacer block. The spacer block serves to
prevent the frame from lowering when work
is carried out on the air pipes. Since you
can easily make it yourself, it cannot be
ordered from DAF. The block is sized
65x40x25 mm (LxWxH).
A
40
25
65
2
3
1
A
K1 01 402
4. Disconnect the circlip (6) of the control
cable on the fixing bracket near the shock
absorber (7).
5. Unhook the control cable from the control
lever of the shock absorber (7).
6. Remove the attachment nuts (1, 5) and
attachment bolts (2, 4) from the fixing
bushes (3, 8) of the shock absorber (7).
7. Remove the shock absorber (7) from the
seat frame.
2
3
4
1
5
6
7
K1 01 400
7
ǹ 0210
