1SEATS
Removal and installation LF45/55 series
4-22
Installing vertical damper
1. Fit the shock absorber (7) in the seat frame
fixing brackets using the fixing bushes (3,
8), attachment nuts (1, 5) and attachment
bolts (2, 4). Fit the shock absorber (7) with
the sticker facing up.
2. Hook the control cable into the control lever
of the shock absorber (6).
3. Fit the control cable to the fixing bracket of
the shock absorber.
4. Fit the circlip (6) to the control cable.
5. Check the adjustment of the control cable.
6. Remove the seat lock.
7. Fit the seat squab.
8. Install the seat assembly.
4.27 REMOVAL AND INSTALLATION, AIR BELLOWS
Removing air bellows
1. Remove the seat assembly.
2. Remove the seat squab.

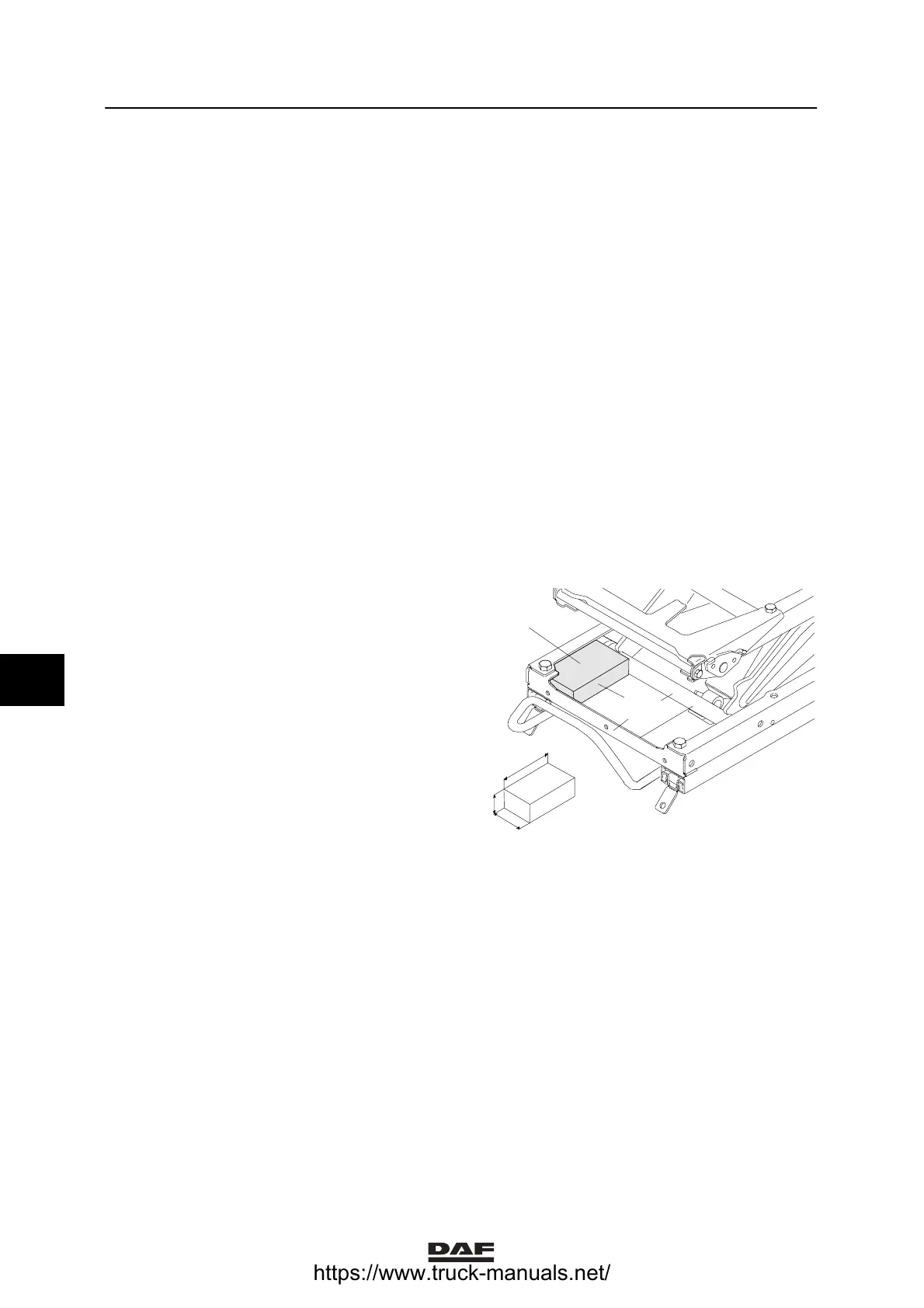

3. Lock the seat in its highest position using a
spacer block. The spacer block serves to
prevent the frame from lowering when work
is carried out on the air pipes. Since you
can easily make it yourself, it cannot be
ordered from DAF. The block is sized
65x40x25 mm (LxWxH).
4. Disconnect the quick-release coupling (5) of
the air pipe (2) to the air bellows. Pay
attention to the position of the air pipe.
5. Remove the attachment bolt (1) from the
top of the air bellows.
A
40
25
65
2
3
1
A
K1 01 402
7
ǹ 0210
