1SEATS
Removal and installation LF45/55 series
4-26

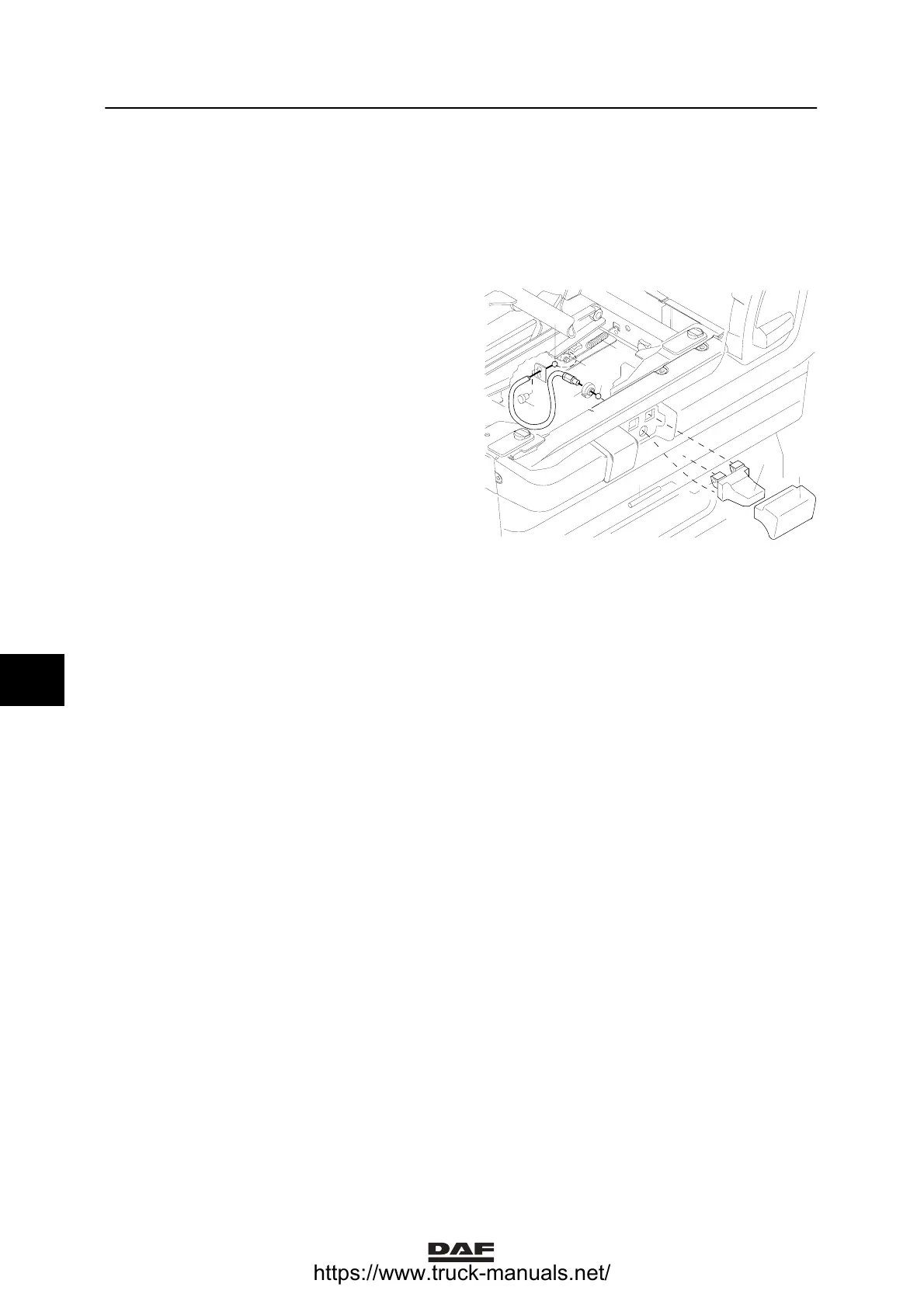

4.30 REMOVAL AND INSTALLAT ION, HEIGHT ADJUSTMENT HANDLE OF
GAS-SPRUNG SEAT
Removing height adjustment handle of
gas-sprung seat
1.
Remove the seat squab.
2. Press the locking lip at the bottom of the
control button (1). Remove the control
button from the handle (2).
3. Remove the circlip (3) from the control
cable.
4. Push the pin (4) out of the handle (2).
5. Remove the control cable attachment ball
(5) from the handle (2).
6. Remove the handle (2) from the frame.
7. Remove the reset spring (6).
8. Remove the stop (7). Unhook the
attachment ball (8) from the handle (9).
Installing height adjustment handle of
gas-sprung seat
1. Hook the attachment ball (8) into the handle
(9). Fit the nut (7).
2. Fit the reset spring (6).
3. Fit the handle (2) into the frame.
4. Fit the attachment ball (5) into the
handle (2).
5. Fit the pin (4) into the handle (2).
6. Fit the circlip (3) to the control cable.
7. Push the control button (1) on the operating
handle (2).
8. Fit the seat squab.
1
2
7
4
3
6
8
9
5
K1 01 405
7
