LF45/55 series Removal and installation
INTERNAL CAB COMPONENTS
4-5

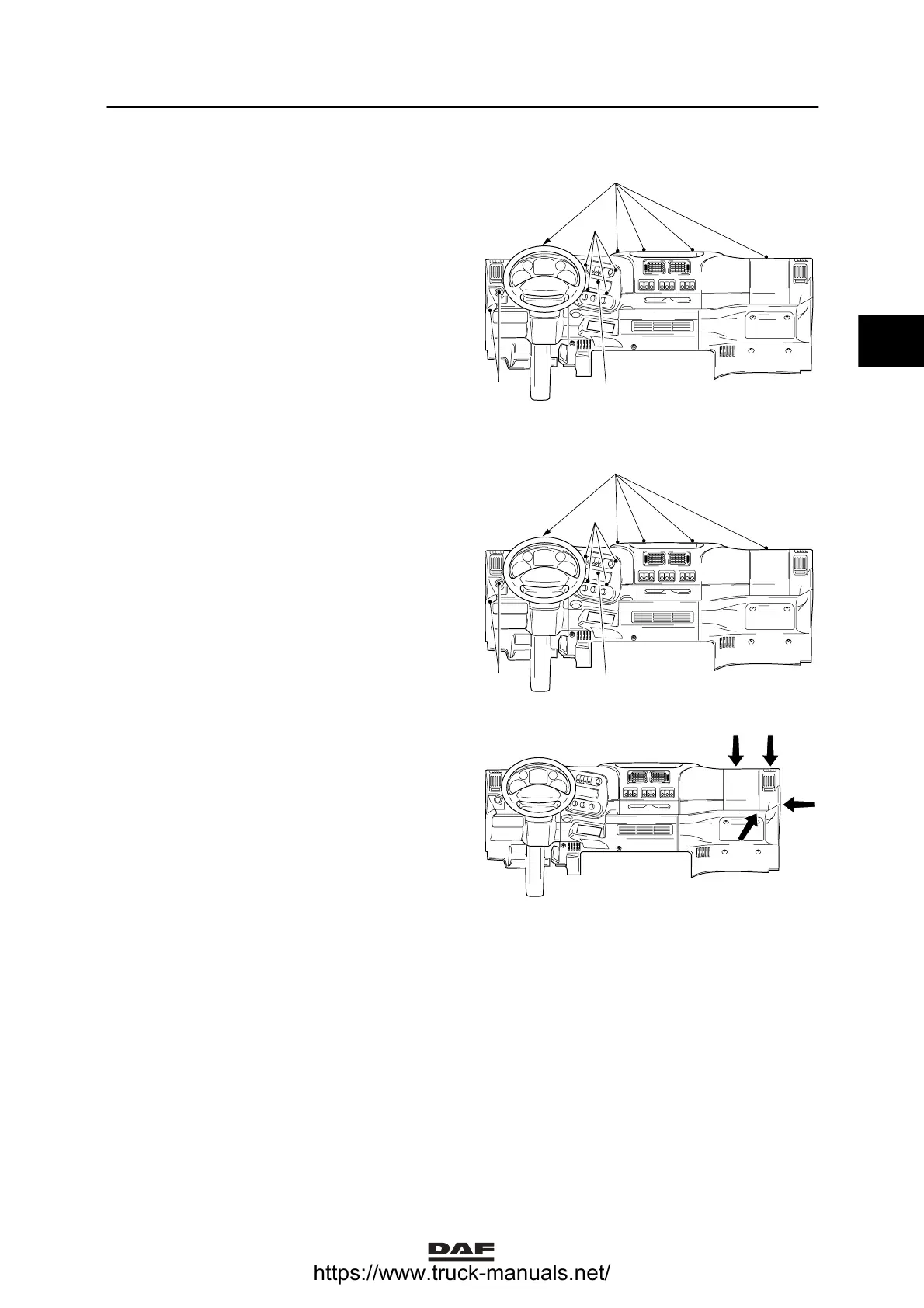

Removing the upper dashboard panel on
driver’s side
1. Remove the attachment bolts (1) from the
radio panel (2).
2. Remove the attachment bolts (3) from the
dashboard panel.
3. Cut the cable binders that are used to
attach the wiring harnesses to the
dashboard panel.
4. Remove the dashboard panel. Unhook the
radio panel (2) from the dashboard panel.
5. Disconnect the connector of the light switch
(4) and the stepwell lighting door switch.
K1 01 436
1
3
42
Installing the upper dashboard panel on
driver’s side
1. Fit the connector of the light switch (4) and
the stepwell lighting door switch.
2. Fit the dashboard panel. Hook the radio
panel (2) to the dashboard panel.
3. Fix the removed cable harnesses to the
dashboard panel using cable binders.
4. Fit the dashboard panel attachment
bolts (3).
5. Fit the attachment bolts (1) of the radio
panel (2) to the dashboard panel.
K1 01 436
1
3
42
Installing the right-side dashboard panel
1. Fit the connector of the stepwell lighting
door switch to the right-side dashboard
panel
2. Fit the right-side dashboard panel using the
attachment bolts.
K1 01 435
2
ǹ 0210
