INTERNAL CAB COMPONENTS
Removal and installation LF45/55 series
4-6

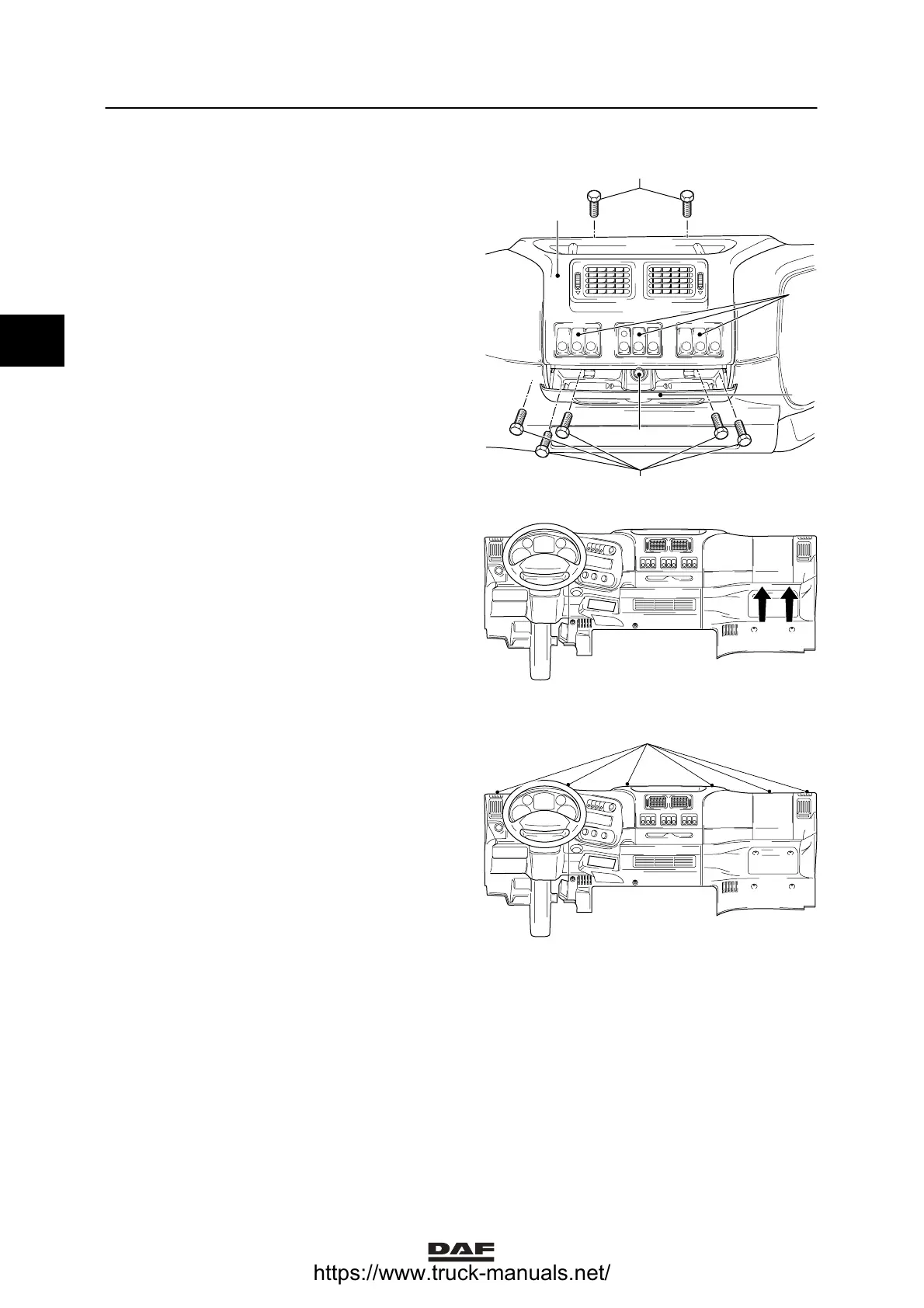

Installing the central console control panel
1. Re-fit the connector of the cigarette lighter
(4) to the rear of the control panel of the
central console (5).
2. Fit the control panel of the central console
(5) to the dashboard.
3. Hook up the switches (3) from the control
panel in the central console (5) to the
connectors. Re-fit the switches (3) to the
control panel in the central console (5).
4. Secure the control panel in the central
console (5) using the attachment bolts (1).
5. Fit the ashtray (2) into the control panel in
the central console (5).
1
1
K1 01 434
2
3
4
5
Fitting the upper cover
1. Hook the cover into the cover panel. Fit the
cover into the cover panel using the
attachment bolts.
K1 01 433
Fitting the cover panel into the window frame
1. Fit the cover panel into the window frame
using the attachment bolts (1).
K1 01 432
1
2
ǹ 0210
