Daher TBM 960 - 5.7 - Wind Components

5.7 -
Wind Components
Example:
-
Angle between wind direction and flight path: 50°
-
Headwind: 8 kts
-
Crosswind: 10 kts
- Wind speed: 13 kts

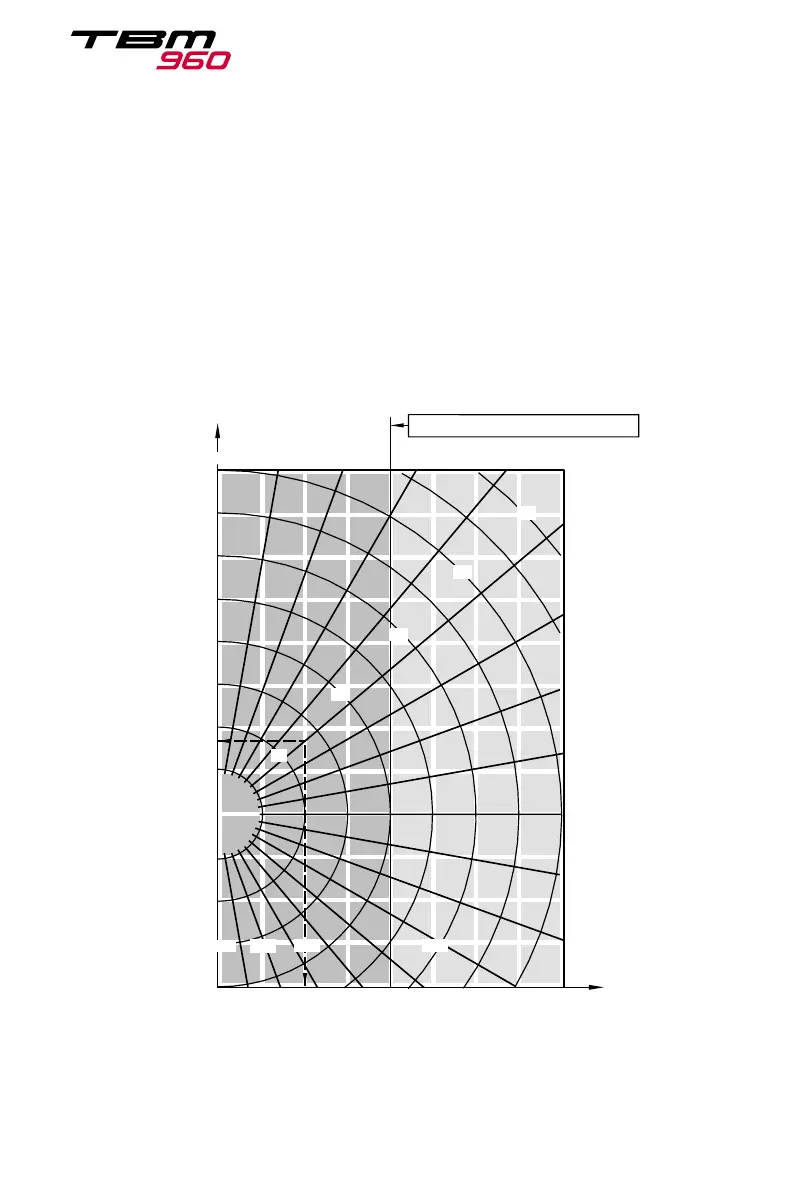

Figure 5.7.1 - Wind Components
0
20
40
10
30
-10
-20
0
10
20 30 40
kts
0°
10°
20° 30° 40°
50°
60°
70°
80°
90°
100°
110°
20 kts : Demonstrated crosswind
I4020000AAAMMA8100
Flight path
Crosswind components - kts
H
e
a
d
w
i
n
d
c
o
m
p
o
n
e
n
t
s
30
180°
160°
140°
120°
10
20
40
50
Section 5
Performance
Pilot's Information Manual
PIM TBM 960 - Edition 0
Rev. 00
Page 5.7.1
PIM - DO NOT USE FOR FLIGHT OPERATIONS
