Daher TBM 960 - C.G. Limits

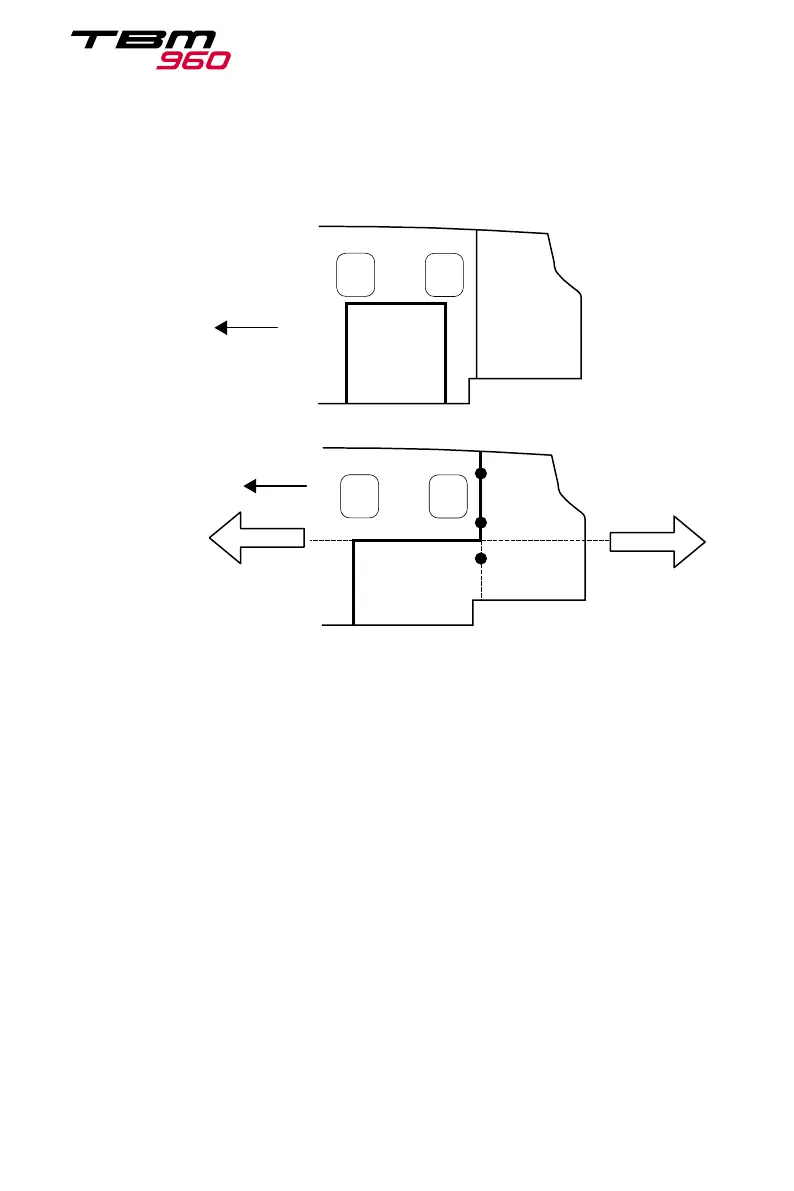

Figure 2.5.1 - Baggage Limits
I4113500AAAAMA8201
FWD
39
kg
(86 lbs)
61
kg
(134 lbs)
HEIGHT REFERENCE
HEIGHT REFERENCE
FWD
SMALL NET
LARGE NET
100
kg
(220 lbs)
80
kg
(176 lbs)
165
(33.8 lbs/sq.ft)
kg/m2
188
kg/m2
80
kg
(176 lbs)
165
(33.8 lbs/sq.ft)
kg/m2
(38.5 lbs/sq.ft)
C.G. Limits
Center of gravity range with landing gear down and flaps up, attitude 0°:
- Forward limits:
. 181.3 in (4.604
m) aft of datum at 4,409 lbs (2,000 kg) or less (14% of
MAC)
. 183.6 in (4.664 m) aft of datum at 6,250 lbs (2,835 kg) (18% of MAC)
. 185.3 in (4.707 m) aft of datum at 6,579 lbs (2,984 kg) (20.85% of
MAC)
. 187.1 in (4.752 m) aft of datum at 7,024 lbs (3,186 kg) (23.8% of MAC)
. 187.1 in (4.752 m) aft of datum at 7,394 lbs (3,354 kg) (23.8% of MAC)
. 193.4 in (4.912 m) aft of datum at 7,615 lbs (3,454 kg) (34.4% of MAC)
- Aft limits:
. 193.6 in (4.916 m) aft of datum at 7,615 lbs (3,454 kg) (34.7% of MAC)
. 193.7 in (4.921 m) aft of datum at 7,394 lbs (3,354 kg) (35% of MAC)
. 194.0 in (4.928 m) aft of datum at 6,986 lbs (3,169 kg) (35.5% of MAC)
Pilot's Information Manual
Section 2
Limitations
PIM TBM 960 - Edition 0
Rev. 00
Page 2.5.2
