Reference datum: 118.1 in (3 m) in front of the firewall front face.
Straight line variation between points.
Leveling point: cabin floor rails.
NOTE
It is the responsibility of the pilot to ensure that the airplane is properly loaded.
Refer to Subsection 6.1. General for proper loading instructions.

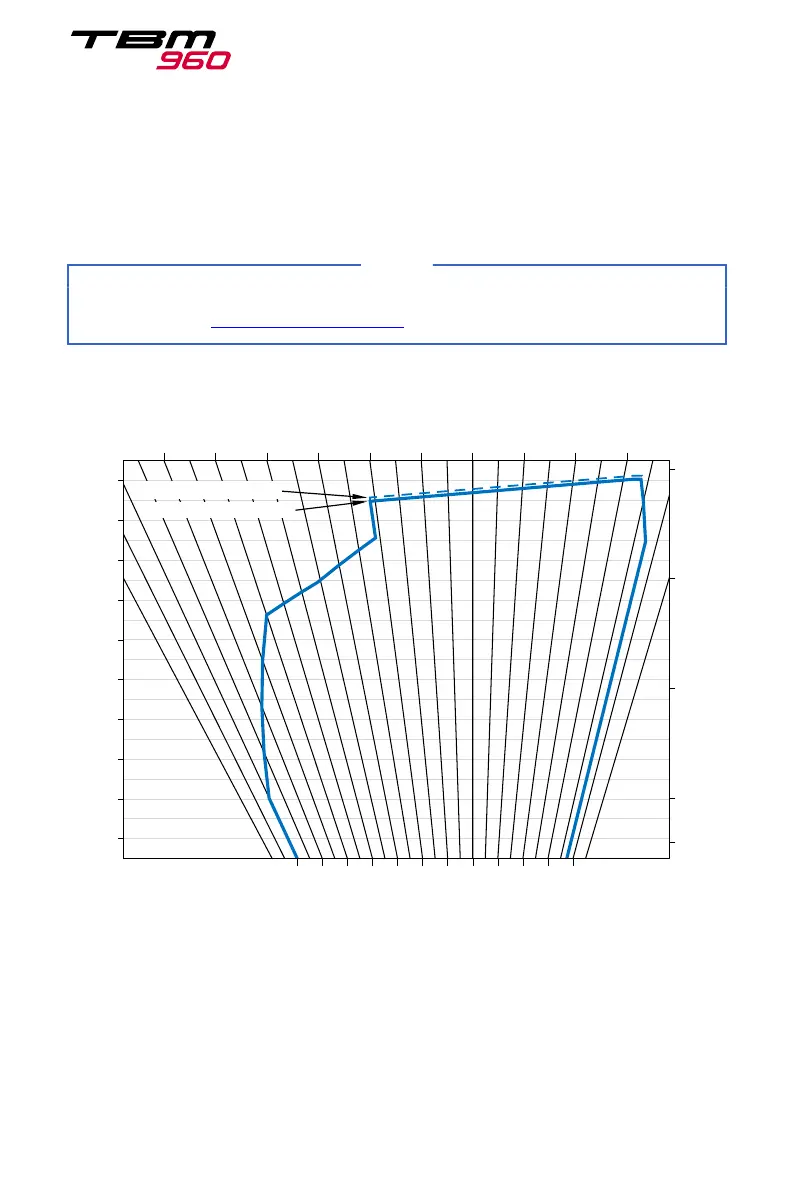

Figure 2.5.2 - C.G. Limits
C4080000AABAMA8000
Max Takeoff Weight (MTOW)
Max Ramp Weight (MRW)
14 16 18 20 22 24 26 28 30 32 34 36
(MAC %)
16 18 20
22 24
26 28 30
32
34
(MAC %)
40
44
48
52
56
60
64
68
72
76
Airplane weight (lbs x 100)
18
20
25
30
35
Airplane weight (kg x 100)
Pilot's Information Manual
Section 2
Limitations
PIM TBM 960 - Edition 0
Rev. 00
Page 2.5.3
PIM - DO NOT USE FOR FLIGHT OPERATIONS
