User
's Manual
196
Fi
gur
e 5
-

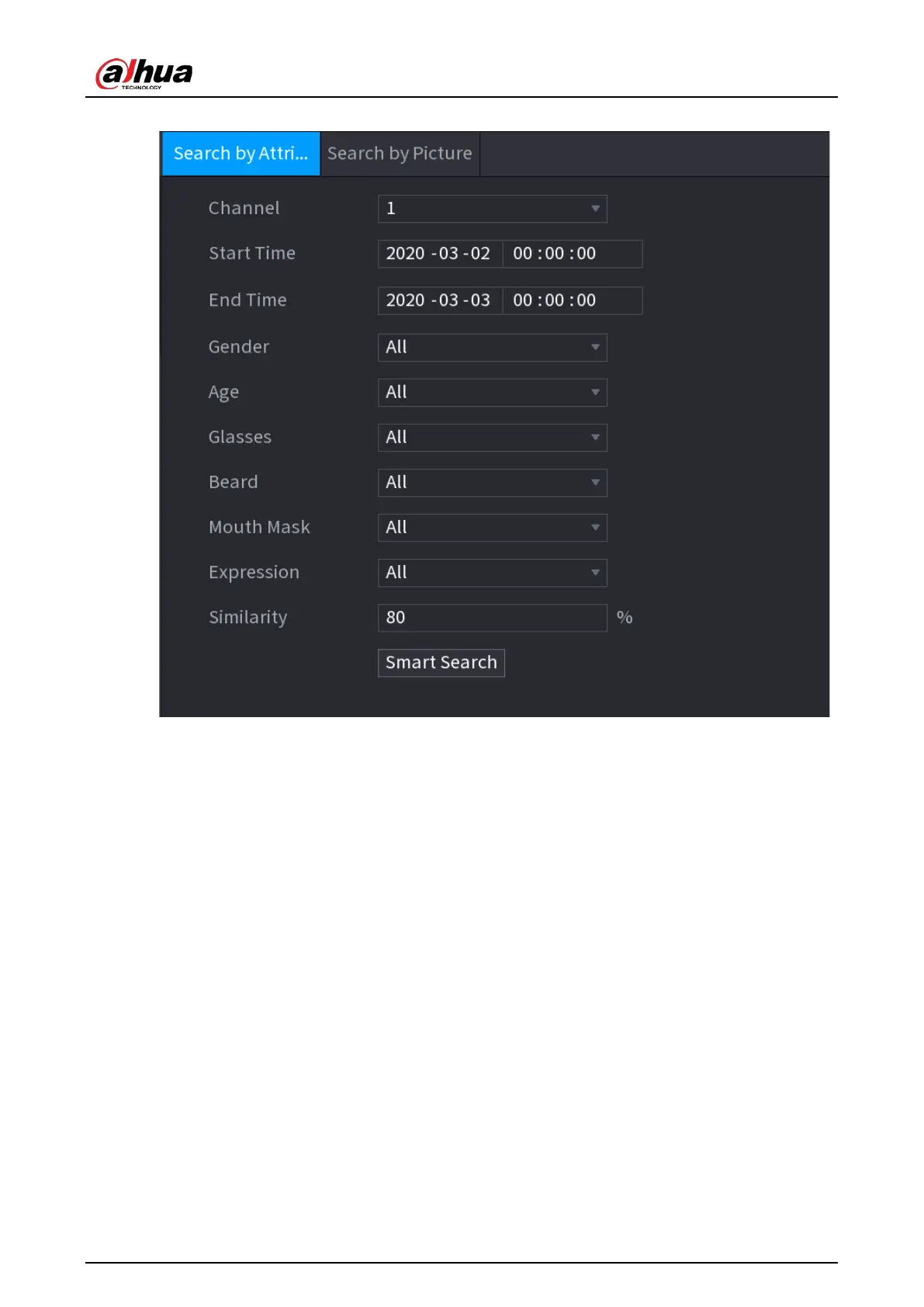

153 Search by
attributes
2.
Select the chan
nel and set t
h
e parame
ters such as
start time, end tim
e, gender, age, glasses,
beard
, mask, and similarity accord
ing to your require
ment.
3.
Click
Smart Search
.
211
213
Table of Contents
Foreword
2
Important Safeguards and Warnings
5
Table of Contents
7
Introduction
17
Overview
17
Functions
17
Getting Started
20
Checking the Components
20
Installing HDD
20
DH-Xvr42Xxan-I/DH-Xvr42Xxan-I(V2.0)/DH-Xvr52Xxa-I2/DH-Xvr52Xxa-I3/DH
20
Xvr82Xxa-4KL-I
21
Xvr78Xxs-4KL-X-LP-V2/DH-Xvr88Xxs-4KL-I
23
DH-Xvr54Xxl-I2/DH-Xvr54Xxl-4KL-I2/DH-Xvr54Xxl-I3/DH-Xvr54Xxl-4KL-I3/DH- Xvr74Xxl-4K-I2/DH-Xvr74Xxl-4K-I3
25
DH-Xvr1Bxx-I/DH-Xvr1Bxxh-I/DH-Xvr41Xxc-I/DH-Xvr41Xxhs-I/DH-Xvr51Xxh-I/DH
27
Xvr71Xxh-4K-I3/DH-Xvr71Xxhe-4KL-I/DH-Xvr71Xxhe-4K-I2/DH-Xvr71Xxhe-4K-I3
27
DH-Xvr51Xxc-I3/DH-Xvr51Xxc-4KL-I3
29
The Grand Tour
34
Front Panel
34
DH-Xvr51Xxh-I
34
Xvr71Xxhe-4KL-I
34
Xvr72Xxa-4K-I3
35
DH-Xvr82Xxa-4K-I/DH-Xvr82Xxa-4KL-I
35
DH-Xvr41Xxc-I/DH-Xvr41Xxhs-I/DH-Xvr42Xxan-I/DH-Xvr42Xxan-I(V2.0)/DH-Xvr51Xxh
35
Xvr52Xxan-I3/DH-Xvr52Xxan-4KL-I2/DH-Xvr52Xxan-4KL-I3
36
DH-Xvr78Xxs-4K-I2/DH-Xvr78Xxs-4K-I3/DH-Xvr78Xxs-4KL-X-LP-V2/DH-Xvr88Xxs-4KL-I
36
DH-Xvr74Xxl-4K-I2/DH-Xvr74Xxl-4K-I3
37
DH-Xvr54Xxl-I2/DH-Xvr54Xxl-4KL-I2/DH-Xvr54Xxl-I3/DH-Xvr54Xxl-4KL-I
37
Xvr58Xxs-4KL-I2-LP/DH-Xvr58Xxs-4KL-I3-LP
38
DH-Xvr1Bxx-I/DH-Xvr1Bxxh-I
38
DH-Xvr51Xxc-I3/DH-Xvr51Xxc-4KL-I3
38
Rear Panel
39
Xvr71Xxhe-4KL-I
39
DH-Xvr41Xxc-I/DH-Xvr41Xxhs-I/DH-Xvr51Xxhs-I2/DH-Xvr51Xxhs-I3/DH-Xvr51Xxhs- 4KL-I2/DH-Xvr51Xxhs-4KL-I3
41
Xvr72Xxa-4KL-I/DH-Xvr72Xxan-4K-I2/DH-Xvr72Xxan-4K-I3
42
DH-Xvr82Xxa-4K-I/DH-Xvr82Xxa-4KL-I
43
DH-Xvr58Xxs-I2/DH-Xvr58Xxs-4KL-I2/DH-Xvr58Xxs-I3/DH-Xvr58Xxs-4KL-I3/DH
44
Xvr78Xxs-4K-I2/DH-Xvr78Xxs-4K-I3/DH-Xvr88Xxs-4KL-I
44
DH-Xvr58Xxs-4KL-I2-LP/DH-Xvr58Xxs-4KL-I3-LP/DH-Xvr78Xxs-4KL-X-LP-V2
46
Xvr74Xxl-4K-I2/DH-Xvr74Xxl-4K-I3
49
DH-Xvr1Bxx-I/DH-Xvr1Bxxh-I
51
DH-Xvr51Xxc-I3/DH-Xvr51Xxc-4KL-I3
52
Remote Control Operations
52
Mouse Operations
54
Connection
56
Typical Connection Diagram
56
Connecting to Video and Audio Input and Output
56
Video Input
56
Video Output
57
Audio Input
57
Audio Output
57
Connecting to Alarm Input and Output
58
Introducing Alarm Port
58
Alarm Input
59
Alarm Output
59
Alarm Output Relay Parameters
59
Local Configurations
61
Initial Settings
61
Booting up
61
Initializing the Device
61
Resetting Password
65
Enabling Password Reset Function
65
Resetting Password on Local Interface
66
Using Reset Button on the Mainboard
72
Setting up with the Startup Wizard
72
Entering Startup Wizard
72
Configuring General Settings
73
Configuring Date and Time Settings
75
Configuring Network Settings
76
Configuring P2P Settings
78
Configuring Encode Settings
80
Configuring Snapshot Settings
81
Configuring Basic Storage Settings
82
Configuring Recorded Video Storage Schedule
83
Configuring Snapshot Storage Schedule
86
Live View
88
Live View Screen
88
Live View Control Bar
89
Instant Playback
90
Digital Zoom
91
Instant Record
91
Manual Snapshot
92
Mute (Analog Channel Only)
92
Warning Light (Supported on Camera with Warning Light Function)
92
Siren (Supported on Camera with Siren Function)
92
Two-Way Talk (Digital Channel Only)
92
Adding Camera (Digital Channel Only)
92
Navigation Bar
92
Shortcut Menu
93
AI Preview Mode
95
Channel Sequence
97
Color Setting
99
Live View Display
101
Configuring Display Settings
101
Configuring Zero-Channel Settings
104
Configuring TV
105
Configuring Tour Settings
105
Quick Operation Bar
107
Entering Main Menu
109
Controlling PTZ Cameras
112
Configuring PTZ Connection Settings
112
Working with PTZ Control Panel
114
Configuring PTZ Functions
116
Configuring Presets
116
Configuring Tours
116
Configuring Patterns
117
Configuring Scan
118
Calling PTZ Functions
119
Calling Presets
119
Calling Tours
119
Calling Patterns
119
Calling Auto Scan
119
Calling Auto Pan
120
Using aux Button
120
Calling OSD Menu
120
Configuring Camera Settings
121
Configuring Image Settings
121
Configuring Encode Settings
125
Configuring Snapshot Settings
127
Configuring Encode Enhancement
129
Configuring Overlay Settings
130
Configuring Covered Area Settings
131
Configuring Channel Type
132
Upgrading Coaxial Camera
133
Configuring Remote Devices
134
Adding Remote Devices
134
Initializing Remote Devices
135
Adding Remote Devices Automatically
141
Adding Remote Devices Manually
142
Modifying or Deleting Remote Devices
144
Modifying IP Address
145
Exporting IP Address
147
Importing IP Address
148
Managing Remote Devices
149
Viewing Status
149
Viewing Firmware Information
150
Upgrading Remote Devices
150
Configuring Record Settings
152
Enabling Record Control
152
Configuring Recorded Video Storage Schedule
153
Configuring Snapshot Settings
153
Configuring Snapshot Trigger
153
Configuring Scheduled Snapshot
153
Configuring Event Triggered Snapshot
154
Configuring Snapshot Storage Schedule
155
Backing up Snapshots to FTP
156
Playing Back Video
156
Enabling Record Control
156
Instant Playback
157
Video Playback
158
Introducing Playback Controls Bar
160
Selecting Search Type
161
Clipping Recorded Video
162
Backing up Recorded Video
162
Smart Search
163
Showing AI Rule During Playback
164
Marking and Playing Back Video
165
Playing Back Snapshots
167
Playing Back Splices
168
Using the File List
168
Alarm Events Settings
170
Alarm Information
170
Alarm Input Settings
171
Configuring Local Alarms
171
Configuring Alarms from Alarm Box
174
Configuring Alarms from External IP Cameras
175
Configuring Alarms for IP Camera Offline
176
Configuring Alarms from HDCVI Devices
177
Alarm Output Settings
178
Configuring Alarm Output
178
Configuring Warning Light
179
Configuring Siren
180
Configuring Smart Illumination
182
Video Detection
183
Configuring Motion Detection Settings
183
Setting the Motion Detection Region
185
Setting Motion Detection Period
186
Configuring Video Loss Settings
187
Configuring Tampering Settings
188
System Events
189
Configuring HDD Event Settings
189
Configuring Network Event Settings
191
Configuring Disarming
192
AI Function
193
Configuring AI Mode
193
For Pro AI Series
194
Face Detection
194
Configuring Face Detection Parameters
195
Searching for and Playing Detected Faces
197
Face Recognition
200
Creating a Face Database
200
Adding Face Pictures
202
Face Recognition Configuration
209
Smart Search for Face Recognition
211
IVS Function
220
Configuring IVS Parameters
220
Configuring Tripwire Rules
221
Configuring Intrusion Rules
225
Smart Search for IVS Function
227
Video Structuring
229
Configuring Video Structuring
229
Smart Search for Video Structuring
230
For Lite AI Series
232
Smd
233
Configuring SMD Parameters
233
Searching for SMD Reports
235
Configuring IVS Function
236
Configuring IVS Parameters
236
Smart Search for IVS Function
237
Face Detection (for XVR5X-I and XVR7X-I Series Only)
239
Face Recognition (for XVR7X-I Series Only)
239
Configuring IVS Mode
239
Configuring Smart Schedule
240
Iot Function
242
Configuring Sensor Settings
242
Connecting Sensor through Device
242
Connecting Sensor through Camera with Gateway
244
Configuring Alarm Linkage
247
Configuring Temperature and Humidity Camera
250
Enabling Detecting Function
250
Viewing Temperature and Humidity Data
251
Exporting Temperature and Humidity Data
252
Configuring Alarm Linkage
253
Configuring Alarm Linkage for Temperature Data
253
Configuring Alarm Settings for Humidity Data
256
Searching Iot Information
259
Configuring Wireless Siren
261
Pos
262
Searching the Transaction Records
262
Configuring POS Settings
263
Configuring Backup Settings
265
Finding USB Device
265
Backing up Files
266
Network Management
268
Configuring Network Settings
268
Configuring TCP/IP Settings
268
Configuring Port Settings
268
Configuring Wi-Fi Connection Settings
269
Configuring 3G/4G Settings
271
Through the Wireless 3G/4G Module
271
Through the External Drive
273
Configuring Pppoe Settings
274
Configuring DDNS Settings
275
Configuring Email Settings
277
Configuring Upnp Settings
278
Configuring SNMP Settings
280
Configuring Multicast Settings
282
Configuring Register Settings
283
Configuring Alarm Center Settings
284
Configuring P2P Settings
285
Configuring Network Testing Settings
285
Testing the Network
285
Capturing Packet and Backing up
286
Configuring Account Settings
288
Configuring User Account
289
Adding a User Account
289
Modifying a User Account
292
Deleting a User Account
293
Configuring Group Account
294
Adding a Group
294
Modifying a Group
296
Deleting a Group
297
Configuring ONVIF Users
297
Audio Management
298
Configuring Audio Files
299
Configuring Playing Schedule for Audio Files
300
Storage Management
301
Configuring Basic Settings
301
Configuring the Recording and Snapshot Schedule
302
Configuring Disk Manager
302
Configuring Record
303
Configuring Advance Settings
303
Configuring Disk Quota
305
Configuring HDD Detecting Settings
308
Checking HDD
308
View Detecting Results
309
Configuring Record Estimate
310
Configuring FTP Storage Settings
312
Security Center
314
Security Status
314
System Service
315
Basic Services
315
301
317
Https
318
Attack Defense
319
Firewall
319
Account Lockout
319
Anti-Dos Attack
320
Sync Time-Allowlist
320
CA Certificate
321
Device Certificate
321
Trusted CA Certificate
324
Audio/Video Encryption
324
Security Warning
326
Security Exception
326
Illegal Login
327
Configuring System Settings
328
Configuring General System Settings
328
Configuring RS-232 Settings
330
Configuring System Maintenance Settings
331
Exporting and Importing System Settings
332
Restoring Default Settings
334
Updating the Device
335
Updating File
335
Performing Online Upgrade
336
Uboot Upgrading
337
Exporting Intelligent Diagnosis Data
337
Viewing Information
338
Viewing Version Details
338
Viewing Log Information
338
Viewing Event Information
340
Viewing Network Information
340
Viewing Online Users
340
Viewing the Network Load
341
Viewing HDD Information
342
Viewing Channel Information
343
Viewing Data Stream Information
344
Logging out of the Device
345
Web Operations
346
Connecting to Network
346
Logging in to the Web Interface
346
Introducing Web Main Menu
347
Viewing Open-Source Software Notice
349
Faq
351
Appendix 1 Glossary
357
Appendix 2 HDD Capacity Calculation
359
Appendix 3 Compatible Backup Devices
360
Appendix 3.1 Compatible USB List
360
Appendix 3.2 Compatible SD Card List
361
Appendix 3.3 Compatible Portable HDD List
361
Appendix 3.4 Compatible USB DVD List
362
Appendix 3.5 Compatible SATA DVD List
362
Appendix 3.6 Compatible SATA HDD List
362
Appendix 4 Compatible CD/DVD Burner List
369
Appendix 5 Compatible Displayer List
370
Appendix 6 Compatible Switcher
371
Appendix 7 Earthing
372
Appendix 7.1 What Is the Surge
372
Appendix 7.2 the Earthing Modes
373
Appendix 7.3 Thunder Proof Ground Method in the Monitor System
374
Appendix 7.4 the Shortcut Way to Check the Electric System by Digital Multimeter
375
Appendix 8 RJ45-RS232 Connection Cable Definition
379
Appendix 9 Cybersecurity Recommendations
381
Other manuals for Dahua Technology DH-XVR1B04-I
Manual
394 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Dahua Technology DH-XVR1B04-I and is the answer not in the manual?
Ask a question
Dahua Technology DH-XVR1B04-I Specifications
General
Brand
Dahua Technology
Model
DH-XVR1B04-I
Category
DVR
Language
English
Related product manuals
Dahua Technology DH-XVR1B04H
363 pages
Dahua Technology DH-XVR1B08-I
384 pages
Dahua Technology DH-XVR1B08H-I
394 pages
Dahua Technology DH-XVR1B16H
363 pages
Dahua Technology DH-XVR1B16-I
394 pages
Dahua Technology DH-XVR1B16H-I
394 pages
Dahua Technology DH-XVR4104C-I
394 pages
Dahua Technology DH-XVR5108C-X
363 pages
Dahua Technology DH-XVR4104C-X1
363 pages
Dahua Technology DH-XVR5104C-X1
363 pages
Dahua Technology DH-XVR5216AN-I3
393 pages
DH-XVR5108H-4KL-X
363 pages
Need help?
General
To Next Page
