User's Manual
205

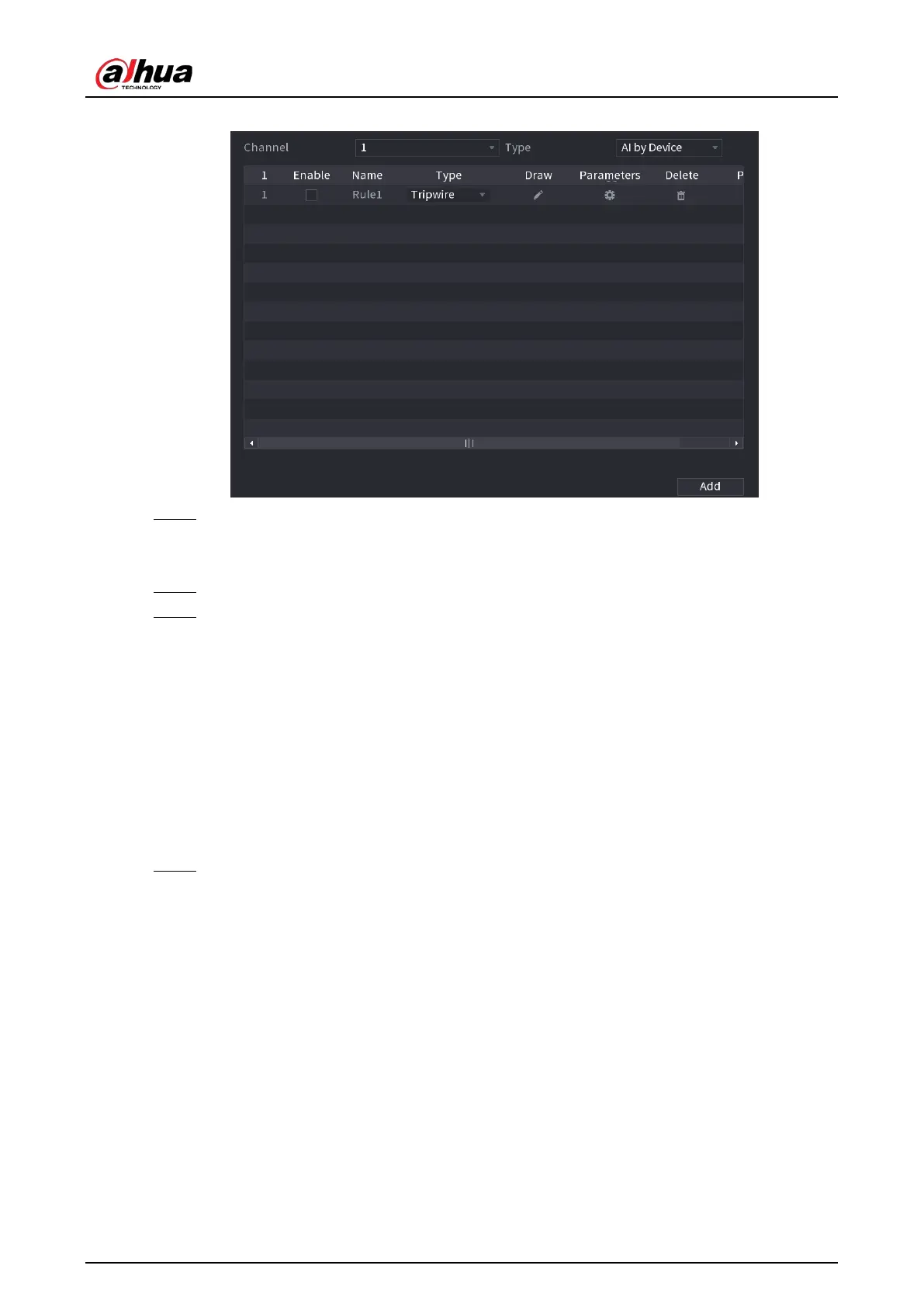

Figure 5-164 Added rule
Step 5 Configure the parameters for the rule that you selected. For details on the configuration of
the tripwire or intrusion rule, see "5.11.2.3.2 Configuring Tripwire Rules" and "5.11.2.3.3
Configuring Intrusion Rules".
Step 6 Select the checkbox of the rule to enable it.
Step 7 Click
Apply
to complete the settings.
5.11.2.3.2 Configuring Tripwire Rules
When the target object crosses the tripwire in the defined direction, the system activates alarms.
●
The tripwire can be configured as a straight line or broken line.
●
Supports detecting one-way or two-way tripwire crossing.
●
Supports multiple tripwires in the same scenario to meet the complexity.
●
Supports size filtering for target.
Procedure
Step 1 On the rule line that you added, in the
Type
list, select
Tripwire
.
