XVR52xxA-4KL-I2/DH-XVR52xxA-4KL-I3/DH-XVR52xxAN-I2/DH-
XVR52xxAN-I3/DH-XVR52xxAN-4KL-I2/DH-XVR52xxAN-4KL-I3

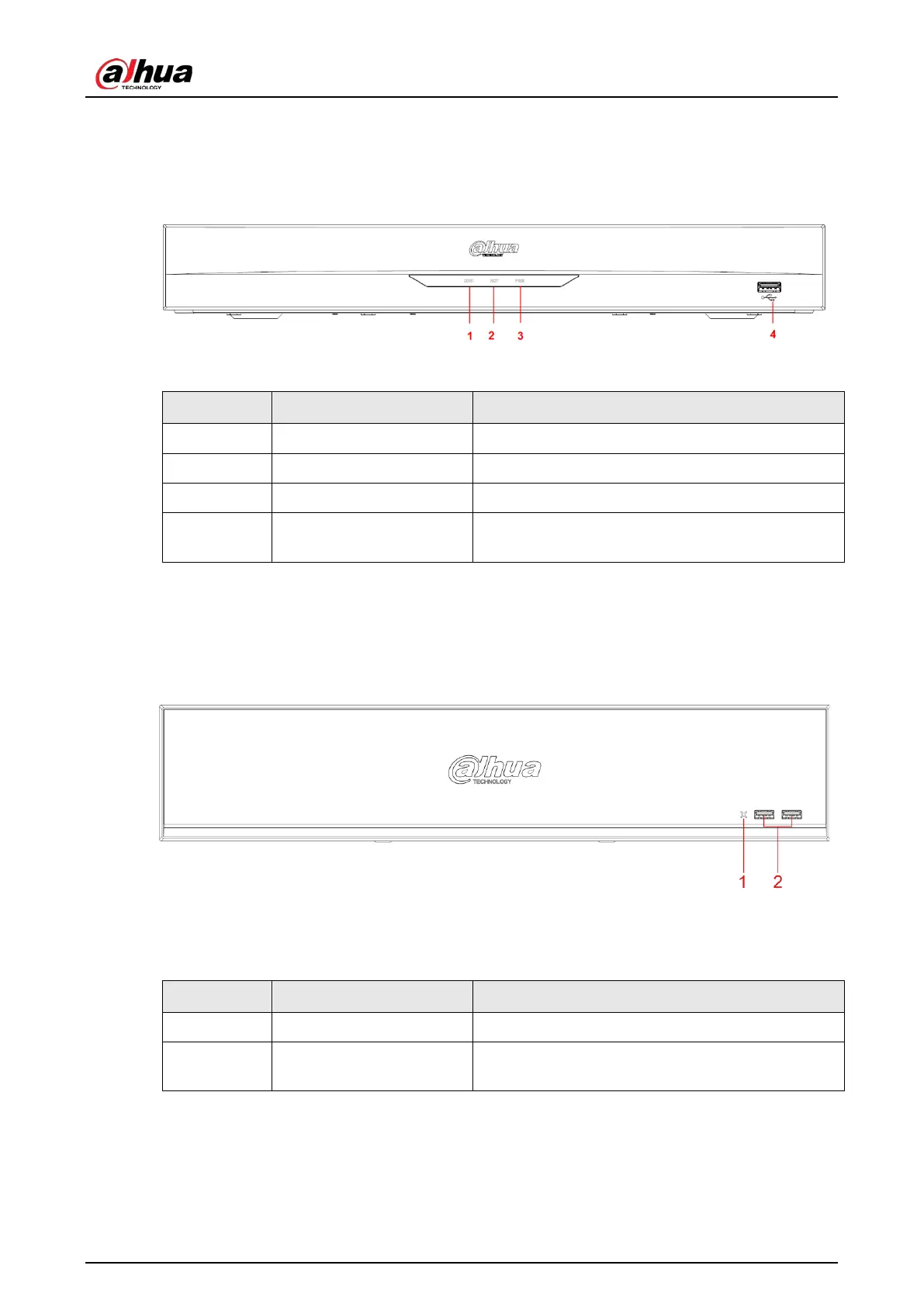

Figure 3-5 Front panel
Table 3-5 Front panel description
No. Port Name Function
1 HDD Glows when HDD status is abnormal.
2 NET Glows when network status is abnormal.
3 POWER Glows when the power is connected properly.
4 USB port
Connects to peripheral devices such as USB storage
device, keyboard, and mouse.
3.1.6 DH-XVR78xxS-4K-I2/DH-XVR78xxS-4K-I3/DH-XVR78xxS-4KL-
X-LP-V2/DH-XVR88xxS-4KL-I
Figure 3-6 Front panel
Table 3-6 Front panel description
No. Port Name Function
1 IR receiver Receives infrared signal from remote control.
2 USB port
Connects to peripheral devices such as USB storage
device, keyboard, and mouse.
