Dahua Technology XVR4 Series - Page 185

Local Configurations 172
Draw an area. Step 2
In the Channel list, select the channel that you want to configure the rules for. 1)
Click . 2)
The monitoring screen to configure the intrusion rules is displayed. See Figure
5-140 for analog camera and the IP camera without preset, and see Figure 5-141
for IP camera with preset.

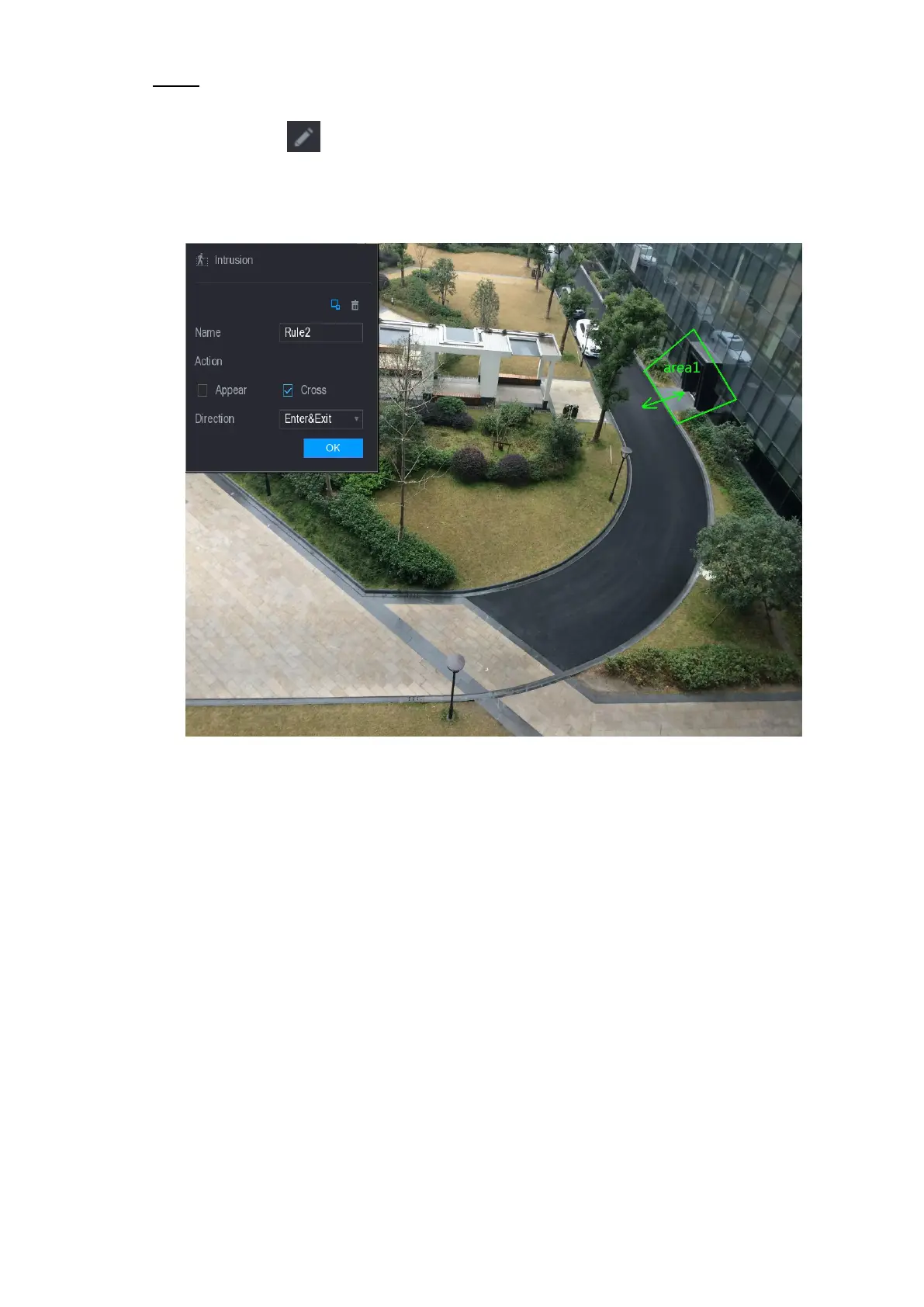

Figure 5-140
