Getting Started 8

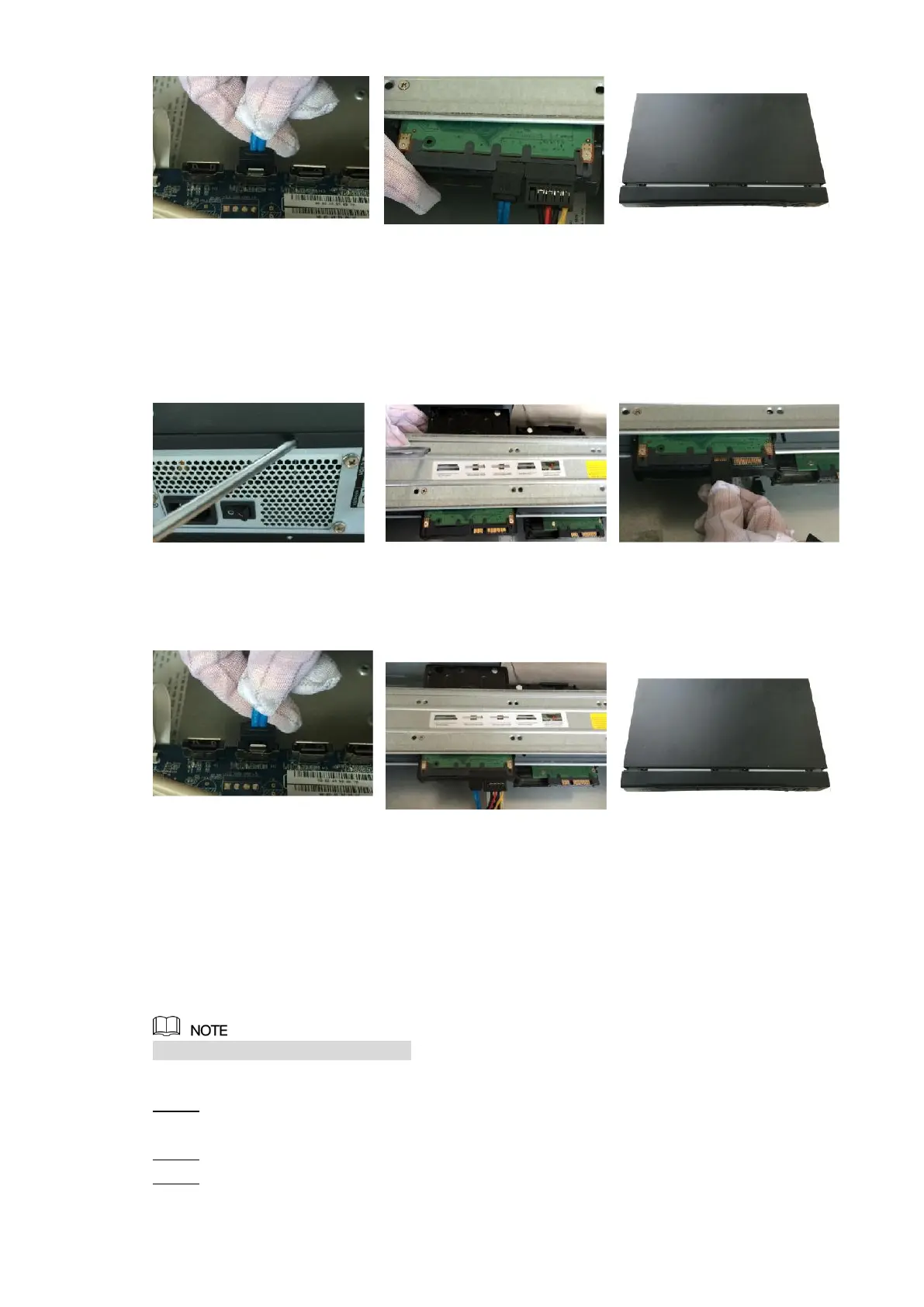

4. Connect the other end of
HDD cable to the
mainboard.
5. Use the power cable to
connect HDD and
mainboard.
6. Put back the cover and fix
the screws.
2.2.6 DH-XVR7816S-4KL-X/DH-XVR5832S-X
1. Loose the screws on the
panel and remove the
cover.
2. Fix the HDD(s) onto the
bracket. Remove the top
bracket if you want to install
HDD to the bottom bracket.
3. Connect one end of HDD
cable to the HDD.
4. Connect the other end of
HDD cable to the
mainboard
5. Use the power cable to
connect HDD and
mainboard.
6. Put back the cover and fix
the screws.
2.3 Installing Device into Rack
Not all models support this function.
To install the DVR into Rack, do the following:
Check if the in-house temperature is lower than 35℃(95℉) and make sure the 15cm Step 1
(6in.) spacing around the Device for ventilation.
Use six screws to fix the DVR on each side. Step 2
Install from the bottom up. Step 3
To Next Page
