Local Configurations 78
You can adjust the border margins in top, bottom, left and right directions as well as the
brightness of the monitor connected to the Video out port of the Device.
Select Main Menu > DISPLAY > TV ADJUST.
Step 1

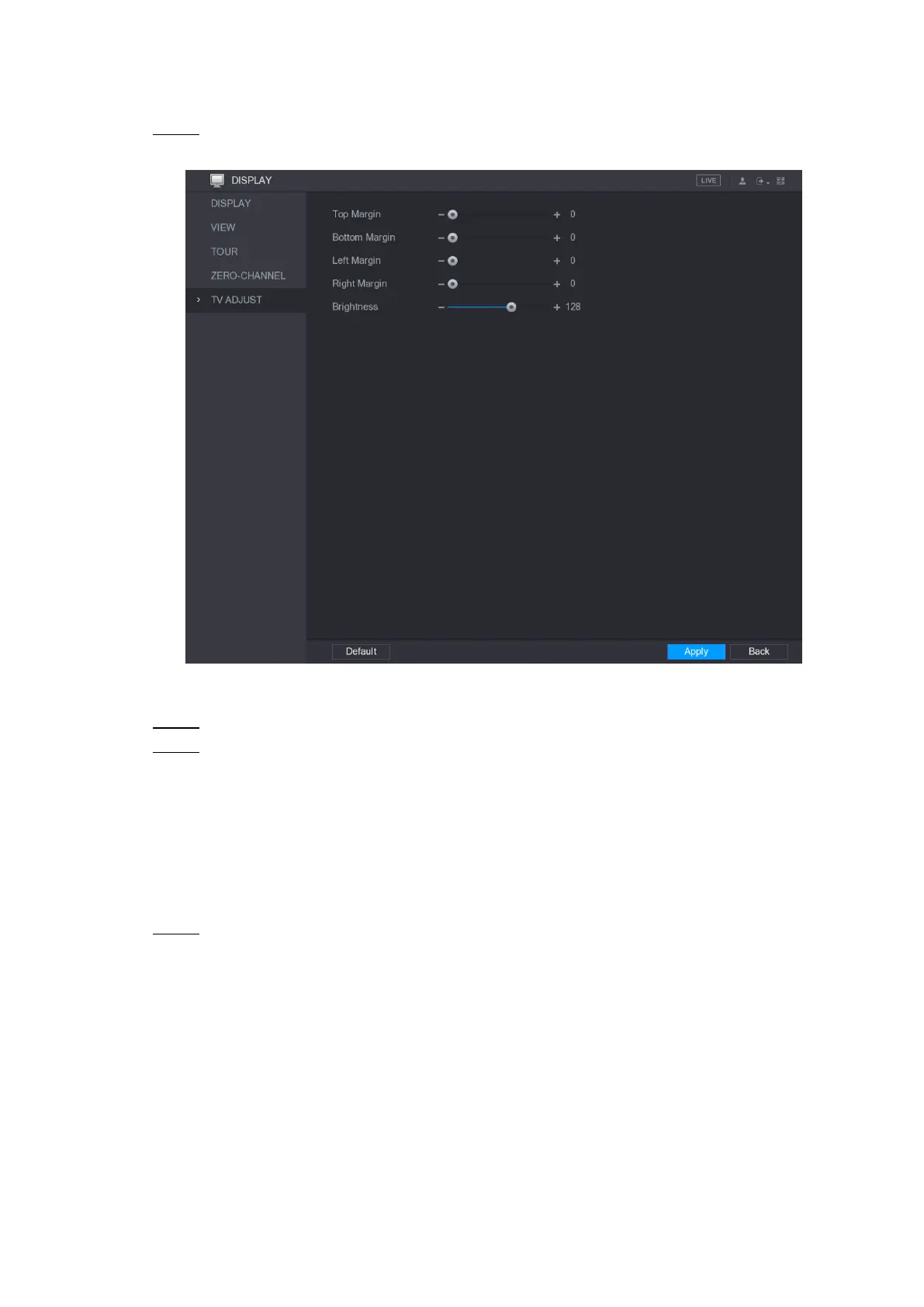

The TV ADJUST interface is displayed. See Figure 5-44.
Figure 5-44
Configure the parameters according to your actual situation. Step 2
Click Apply to complete the settings. Step 3
5.2.7 Configuring Tour Settings
You can configure a tour of selected channels to repeat playing videos. The videos display in
turn according to the channel group configured in tour settings. The system is playing one
channel group for a certain period and then automatically changes to the next channel group.
Select Main Menu > DISPLAY > TOUR. Step 1
The TOUR interface is displayed. There are Main Screen tab and Extra Screen tab,
see Figure 5-45 and Figure 5-46.
