RJ45-RS232 Connection Cable Definition 314
RJ45-RS232 Connection Cable Definition Appendix 8
Here we are going to make standard RS232 port and standard RJ45 (T568B).

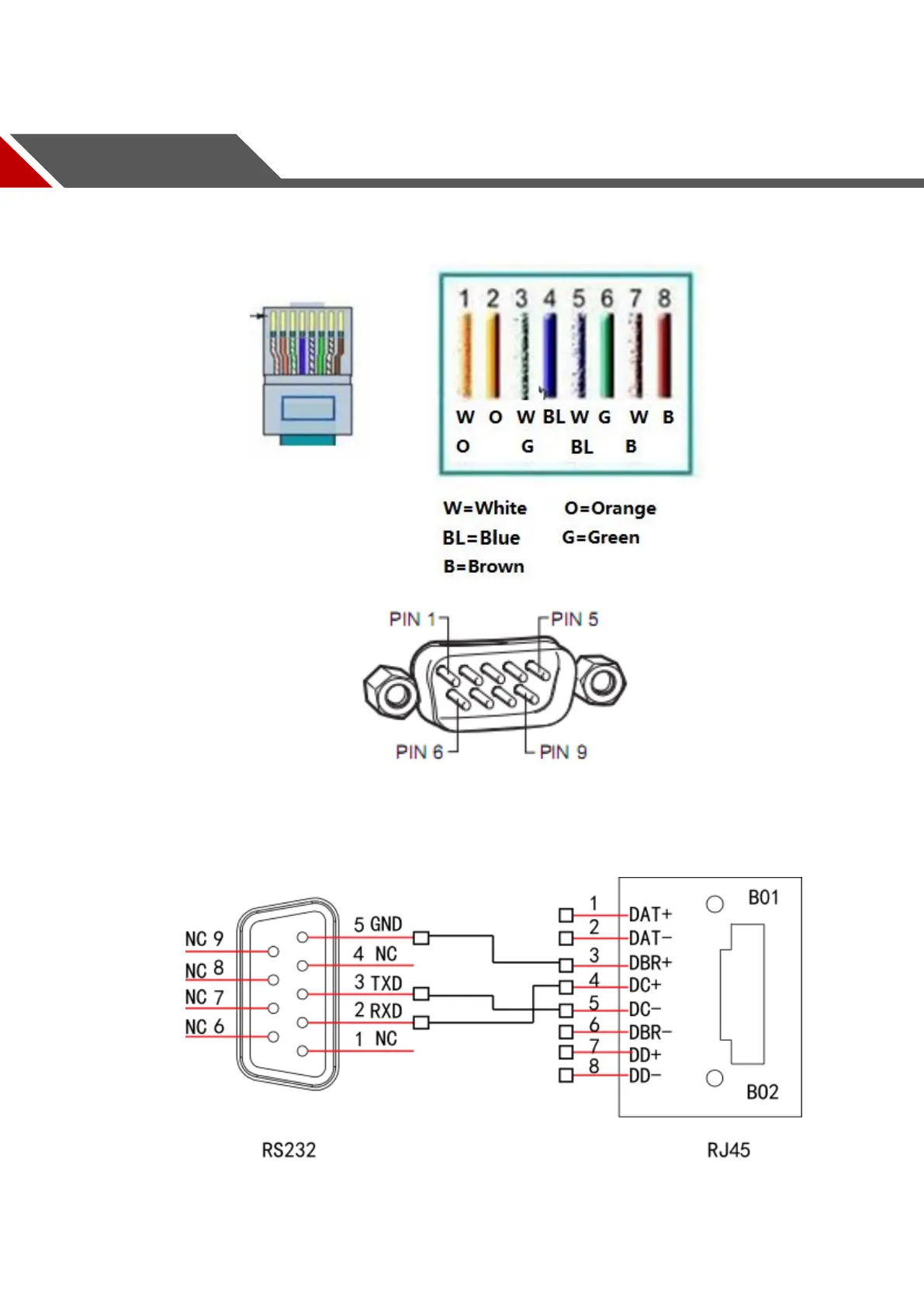

Please refer to the following figure for RJ45 cable definition.
Please refer to the following figure for RS232 pin definition.
Cross Connection
Please refer to the following figure for connection information.
Please refer to the following table for detailed crossover cable connection information.
To Next Page
