RJ45-RS232 Connection Cable Definition 315
RJ45 (T568B)
RJ45 (Network cable)
RS232
Signal Description
4
Blue
2
RXD
5
White and blue
3
TXD
3
White and green
5
GND
Straight Connection

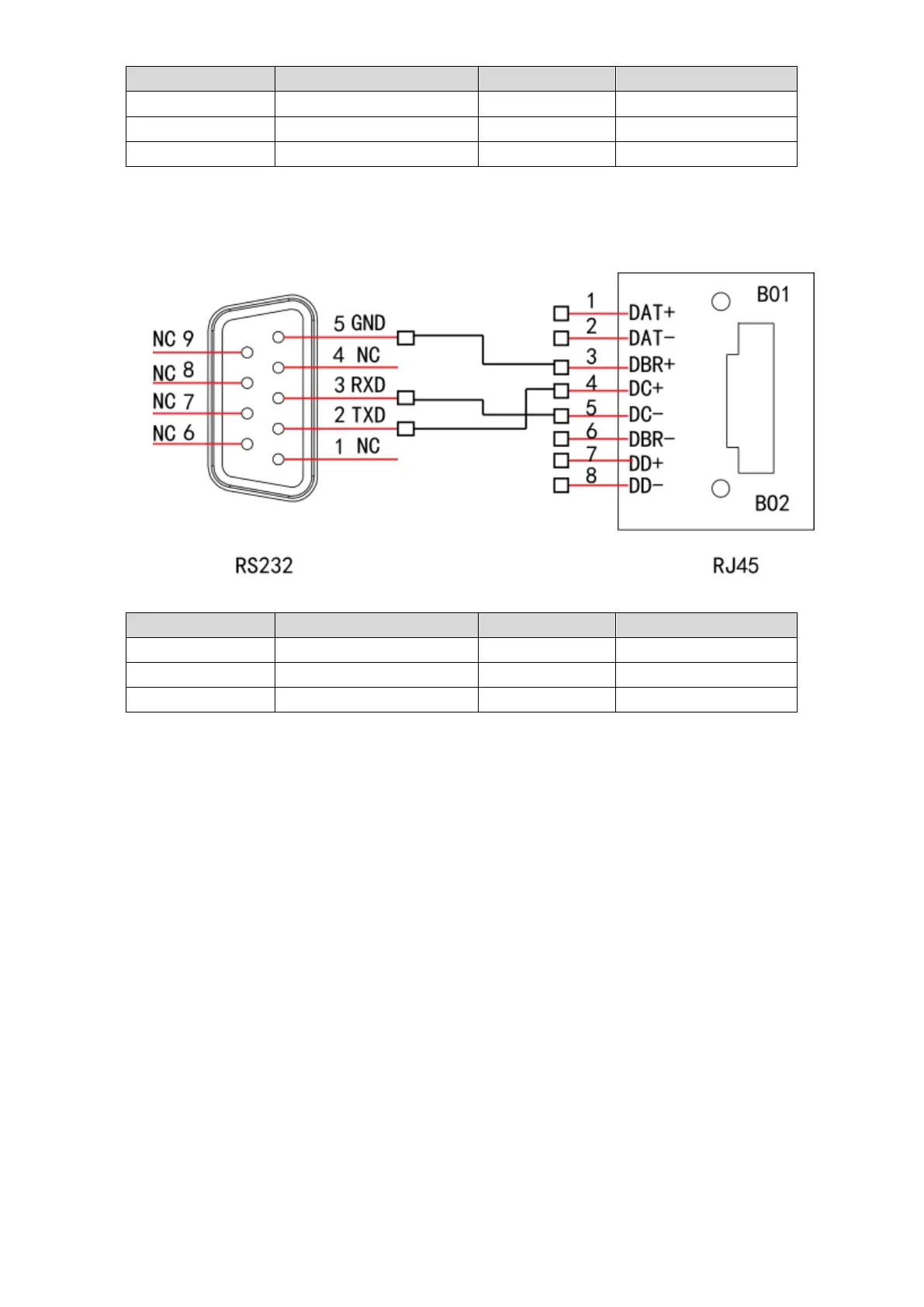

Please refer to the following figure for straight cable connection information.
Please refer to the following table for straight connection information.
RJ45 (T568B)
RJ45 (Network cable)
RS232
Signal Description
4
Blue
3
RXD
5
White and blue
2
TXD
3
White and green
5
GND
