Local Configurations 153
Click . 1)

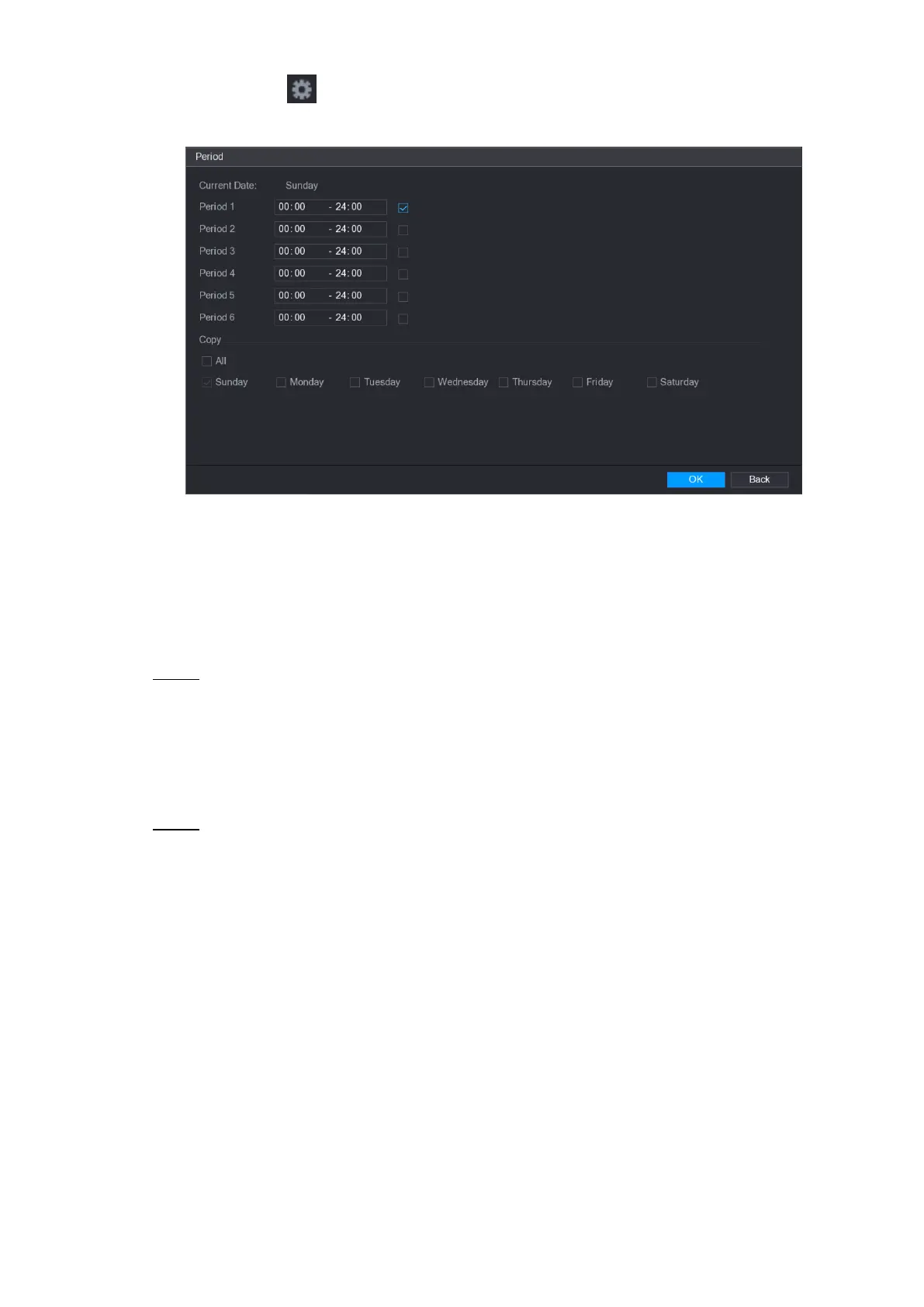

The Period interface is displayed. See Figure 5-125.
Figure 5-125
Enter the time frame for the period and select the check box to enable the settings. 2)
 There are six periods for you to set for each day.
 Under Copy, select All to apply the settings to all the days of a week, or select
specific day(s) that you want to apply the settings to.
Click OK to save the settings. 3)
On the Motion Detect interface, click Apply to complete the settings. Step 3
5.10.4.2 Configuring Video Loss Settings
When the video loss occurs, the system activates the alarm. To configure the motion detect
settings, do the following:
Select Main Menu > ALARM > VIDIEO DETECT > Video Loss. Step 1
The Video Loss interface is displayed. See Figure 5-126.
