2.1.4 NVR58-4KS2/NVR58-16P-4KS2/NVR48-4KS2/
NVR48-16P-4KS2/NVR48-4KS2/L/NVR48-16P-4KS2/L/
NVR58-16P-4KS2E/NVR48-4KS3 Series
The gures are for reference only.
The NVR58-4KS2/NVR58-16P-4KS2/NVR48-4KS2/NVR48-16P-4KS2/NVR48-4KS2/L/
NVR48-16P-4KS2/L/NVR58-16P-4KS2E/NVR48-4KS3 series front panel is shown as below.

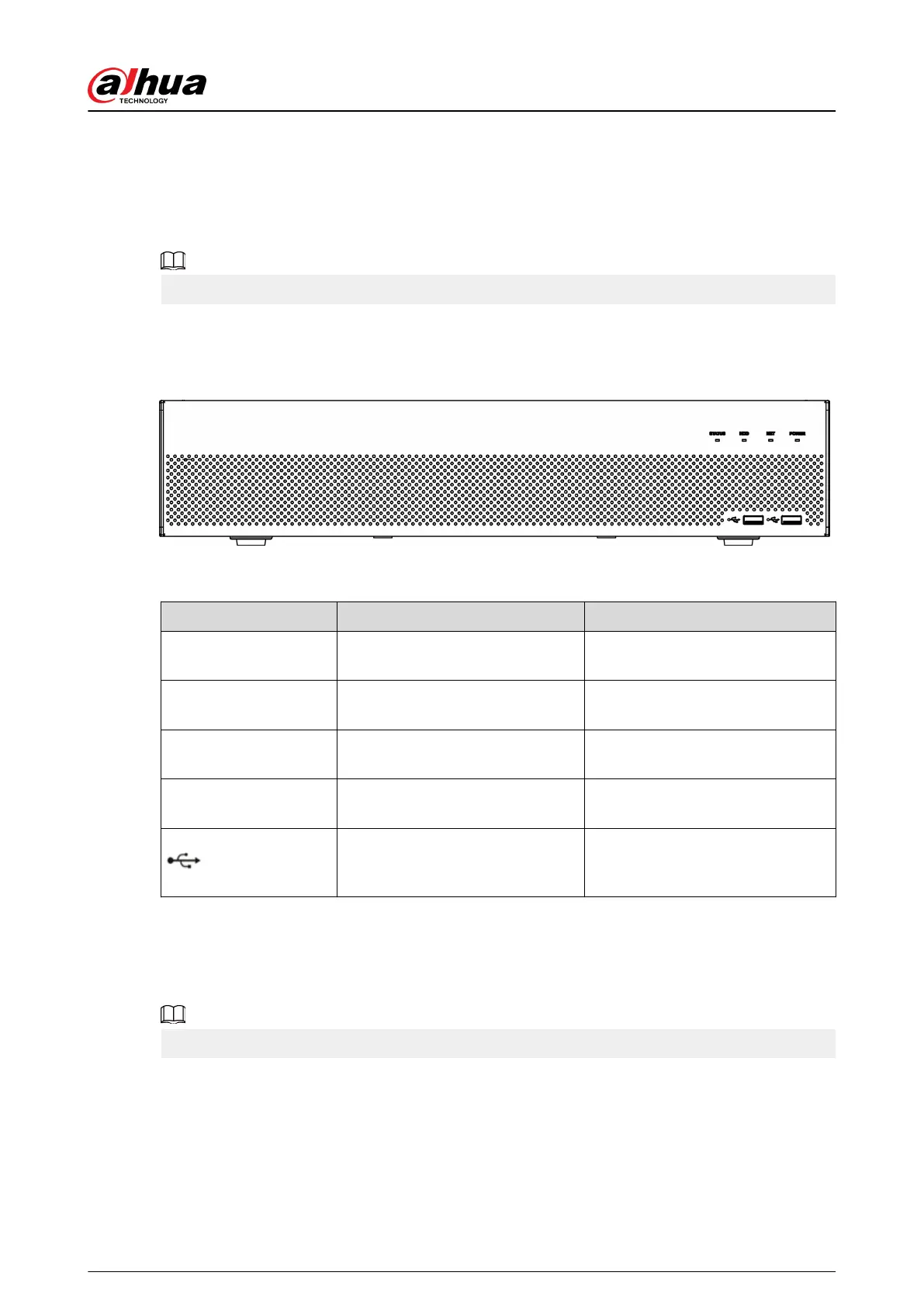

Figure 2-7 Front panel
Table 2-4 Icons
Icon
Name Function
STATUS Status indicator light
The blue light is on when the
Device is working properly.
HDD HDD status indicator light
The blue light is on when the HDD
malfunctions.
NET Network status indicator light
The blue light is on when the
network connection is abnormal.
POWER Power status indicator light
The blue light is on when the
power connection is normal.
USB 2.0 port
Connect to peripheral USB 2.0
storage device, mouse, burner and
more.
2.1.5 NVR21-W-4KS2 Series
The front panel is shown as below.
The gure is for reference only.
User's Manual
8
