Port Name Connection Function
HDMI High Denition Media Page
High denition audio and video signal output
port. It transmits uncompressed high
denition video and multiple-channel data to
the HDMI port of the display device. HDMI
version is 1.4.
VGA VGA video output port
VGA video output port. Output analog video
signal. It can connect to the monitor to view
analog video.
Power input port Input 12 VDC/2 A.
WPS/RESET Reset/WPS function
Device Wi-Fi reset and WPS function button:
●
Hold down this button for 5 seconds and
above to restore Wi-Fi AP to defaults.
●
Press this button for less than 2 seconds,
and then press the WPS button of Wi-Fi
IPC, the device and Wi-Fi IPC can be
connected.
2.2.12 NVR21HS-W-4KS2

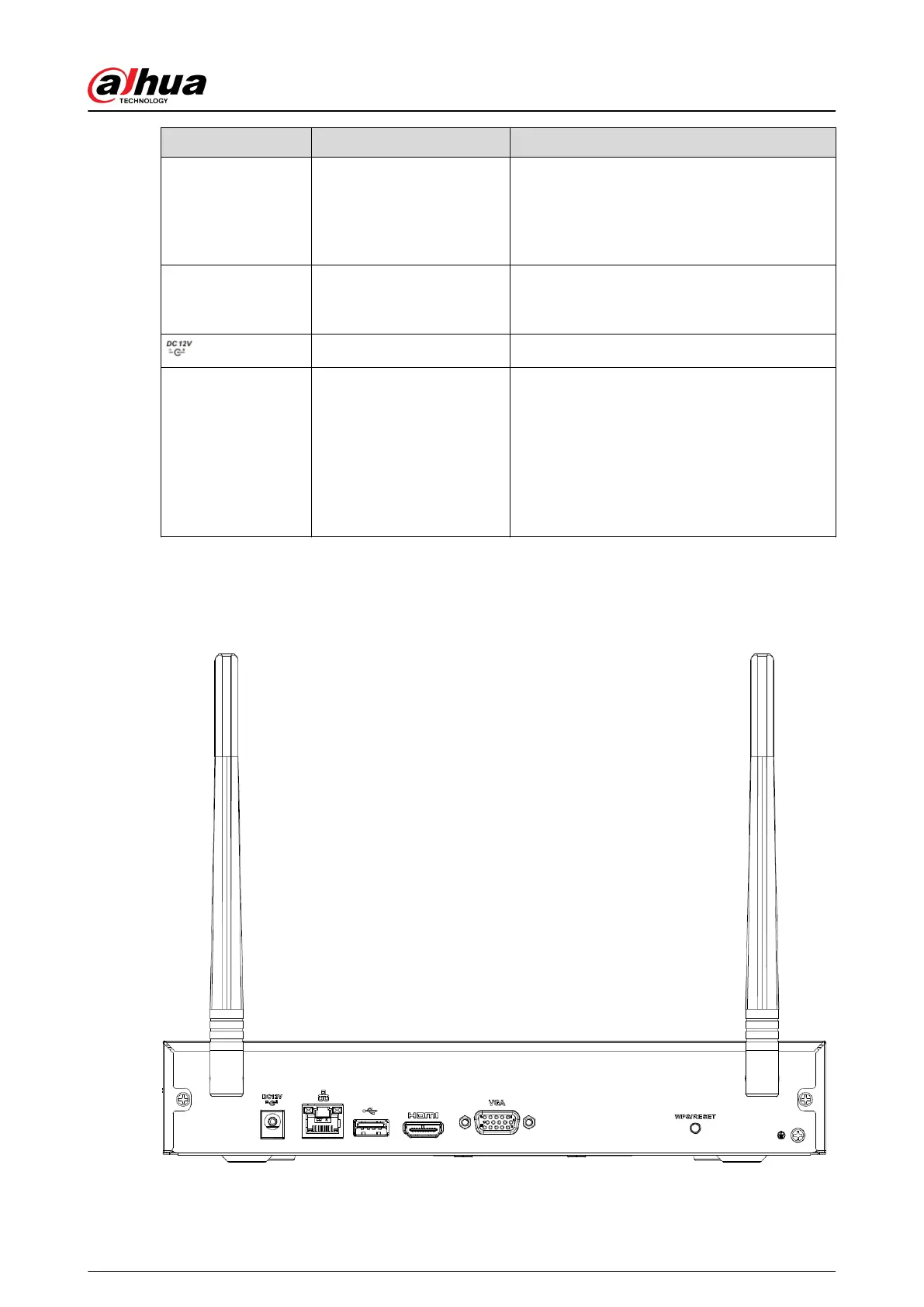

Figure 2-80 Rear panel
User's Manual
47
