No. Port Name Function
+12 V power output port. It can provide
power to some peripheral devices such as
camera and alarm device. Make sure the
power supply of peripheral device shall be
below 1 A.
8
MIC IN
Bidirectional talk input port. It is to receive analog audio signal
from devices such as microphone, sound pickup.
MIC OUT
Audio output port. It is to output analog audio signal to devices
such as sound box.
●
Bidirectional talk output.
●
Audio output on 1-window video monitor.
●
Audio output on 1-window video playback.
9 USB port
USB 3.0 port. Connect to devices such as mouse, USB storage
device and USB burner.
10 Network port
10/100/1000 Mbps self-adaptive Ethernet port. Connect to the
network cable.
11 Power input port Input power of 100-240 V and 50-60 Hz.
12 GND.
2.2.27 NVR52-16P-I/NVR52-16P-I/L/NVR52-8P-I/NVR52-8P-
I/L/NVR42-16P-I Series
These gures are for reference only.

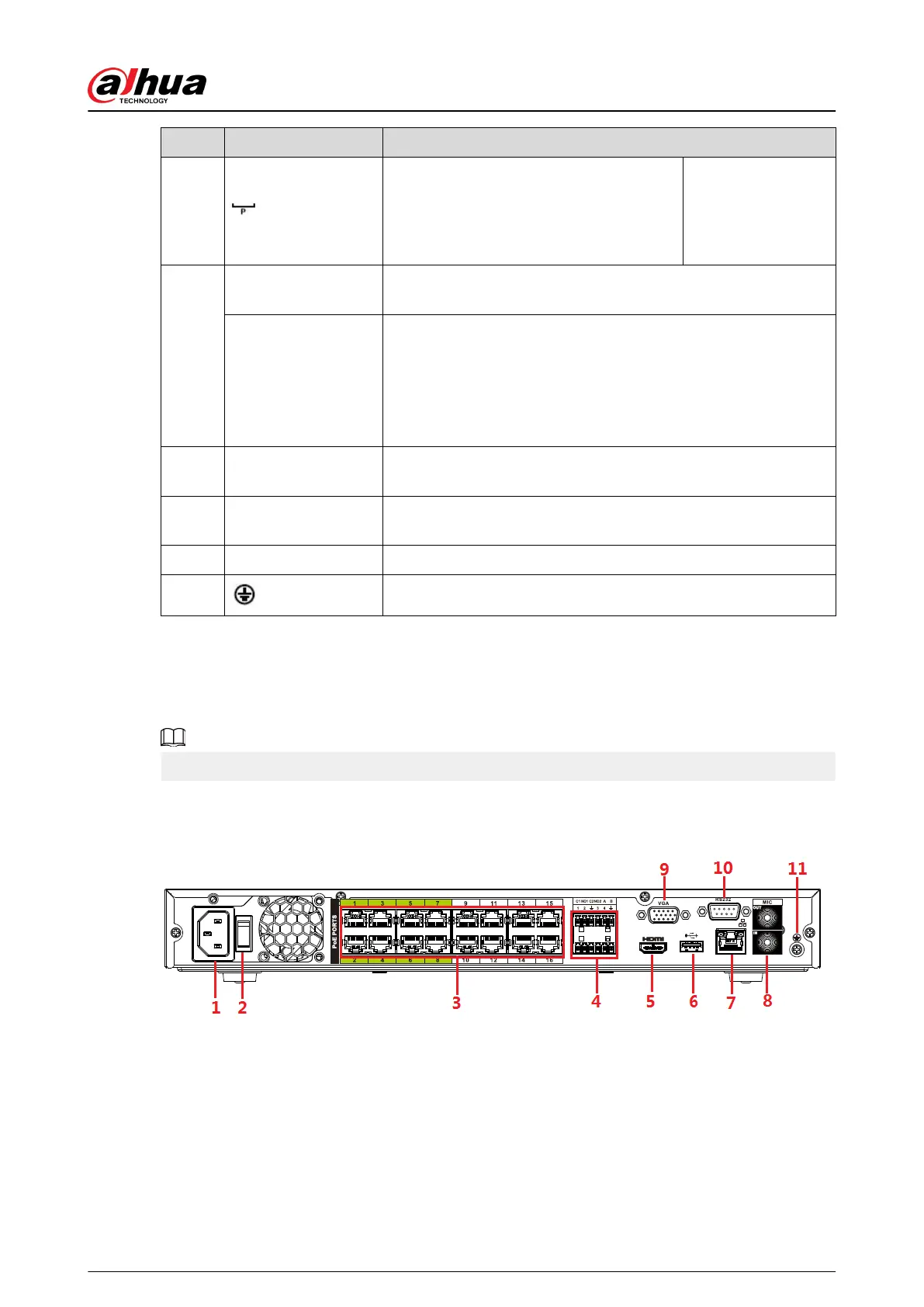

The NVR52-16P-I/NVR52-16P-I/L series rear panel is shown as below.
Figure 2-103 Rear panel
The NVR52-8P-I/NVR52-8P-I/L series rear panel is shown as below.
