Name Function
A
RS-485
communication port
RS485_A port. It is the cable A. You can connect to
the control devices such as speed dome PTZ.
B
RS485_B. It is the cable B. You can connect to the
control devices such as speed dome PTZ.
Network port
10/100/1000 Mbps self-adaptive Ethernet port.
Connect to the network cable.
USB port
USB port. Connect to mouse, USB storage device,
USB burner and more.
RS-232 RS-232 debug COM
It is for general COM debug to conîš‚gure IP address
or transfer transparent COM data.
HDMI
High Deîš‚nition
Media Page
High deîš‚nition audio and video signal output port.
It transmits uncompressed high deîš‚nition video and
multiple-channel data to the HDMI port of the
display device. HDMI version is 1.4.
VGA
VGA video output
port
VGA video output port. Output analog video signal.
It can connect to the monitor to view analog video.
PoE PORTS /
Built-in Switch. Support PoE.
For PoE series product, you can use this port to
provide power to the network camera.
2.2.9 NVR44-4KS2/NVR44-16P-4KS2/NVR44-4KS2/L/
NVR44-16P-4KS2/L/NVR44-4KS2/I/NVR44-16P-4KS2/I/
NVR48-EI/NVR44-EI/NVR48-16P-EI/NVR44-16P-EI/
NVR44-4KS3/NVR48-4KS3 Series
The NVR44-4KS2/NVR44-4KS2/L/NVR44-4KS2/I/NVR48-EI/NVR44-EI/NVR44-4KS3/NVR48-4KS3 series
rear panel is shown as below.

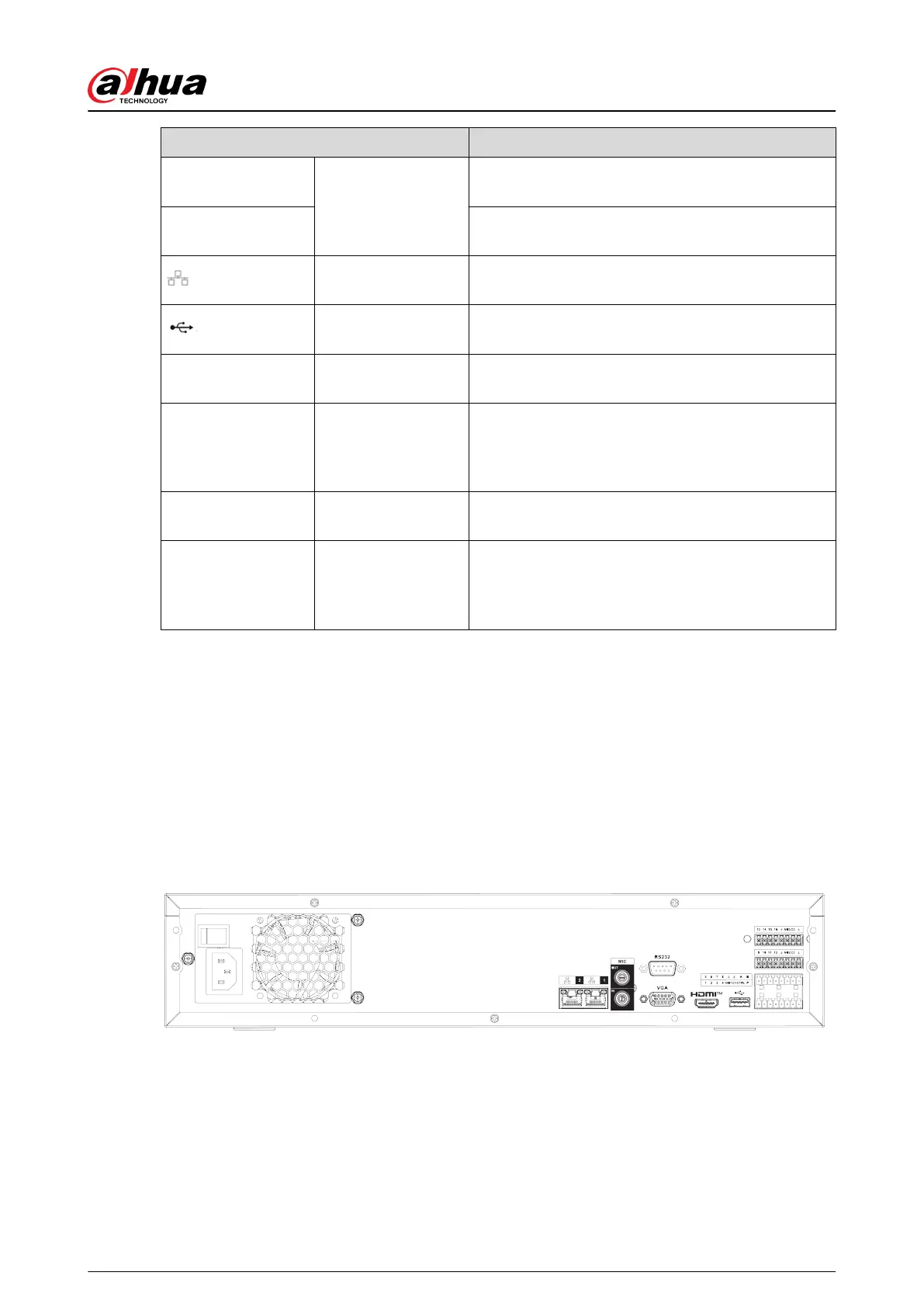

Figure 2-73 Rear panel
The NVR44-16P-4KS2/NVR44-16P-4KS2/L/NVR44-16P-4KS2/I series rear panel is shown as below.
User's Manual
41
