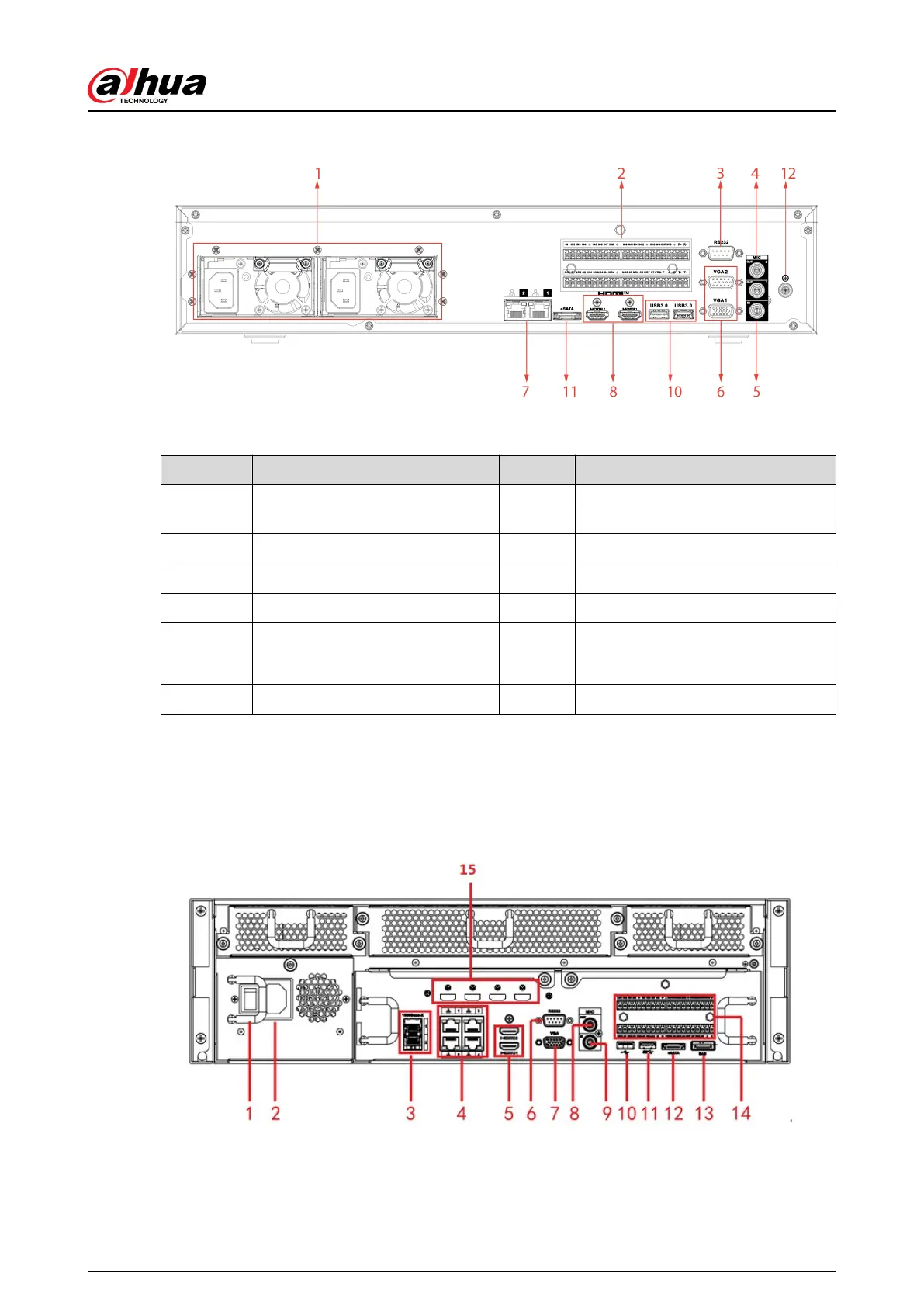

Figure 2-111 Rear panel (6)
Table 2-43 Ports description
No. Function No. Function
1 Power socket 2
Alarm input/alarm output/RS-485
port
3 RS-232 port 4 Audio output
5 Audio input 6 VGA port
7 Network port 8 HDMI port
9
●
NVR608-4K: USB 2.0 port
●
NVR608-4KS2: USB 3.0 port
10 USB 3.0 port
11 eSATA port 12 Ground
2.2.29 NVR616-4KS2/NVR616-XI Series
The general series rear panel of NVR616-4KS2 series is shown as below.
Figure 2-112 Rear panel
The redundant power series rear panel of NVR616-4KS2 series is shown as below.
