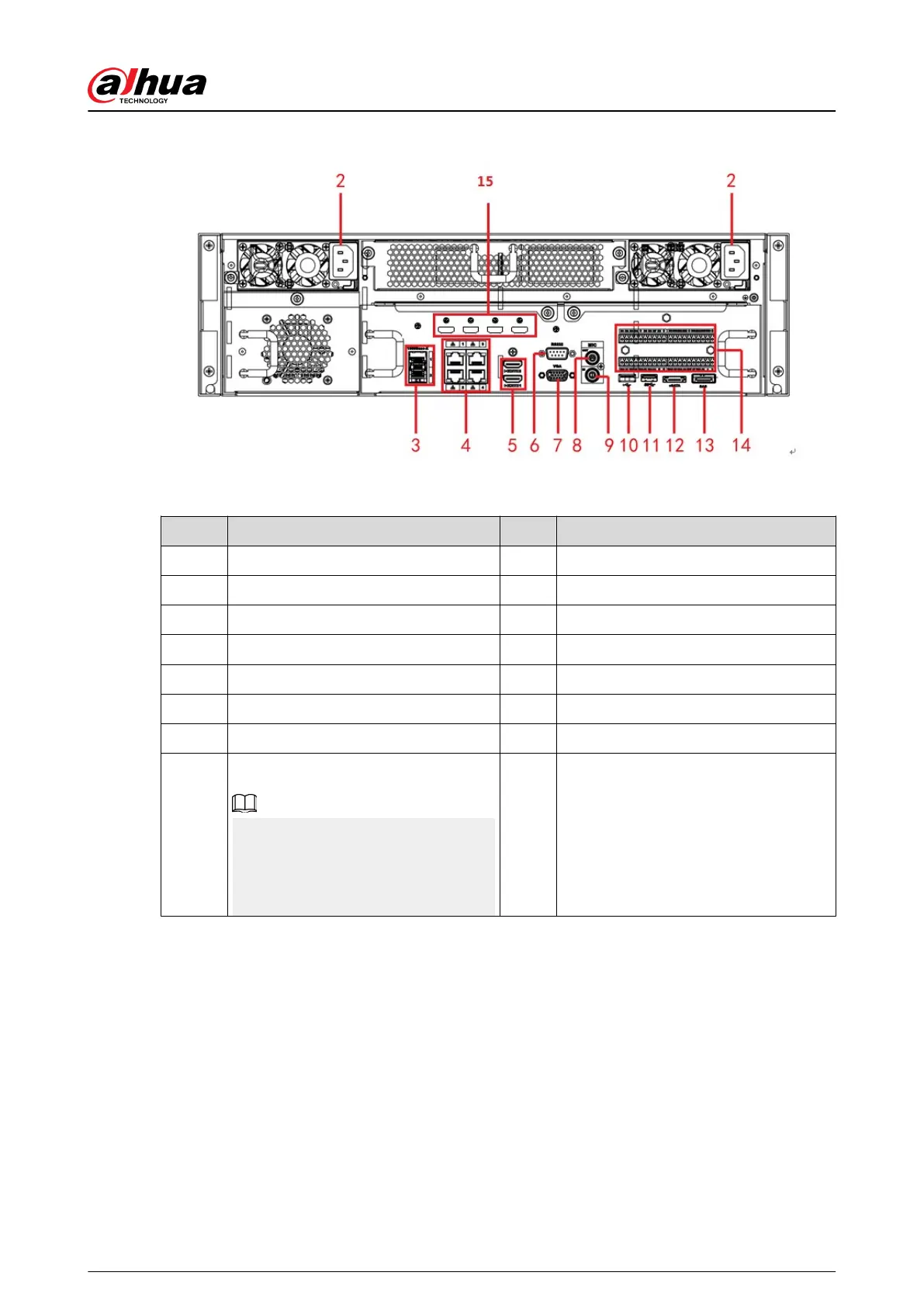

Figure 2-113 Rear panel
Table 2-44 Ports
No. Name No. Name
1 Power on-o button 2 Power socket
3 1000M ber port 4 Network port
5 HDMI port 6 RS-232 port
7 Video VGA output 8 Audio output
9 Audio input 10 USB 3.0 port
11 USB 3.0 port 12 eSATA port
13 SAS extension port 14 Alarm input/output/RS-485 port
15
HDMI port
High-denition decoding card is not
installed in standard hardware
conguration, you can purchase as
needed.
— —
The general series rear panel of NVR616-XI series is shown as below.
User's Manual
74
