The power indicator light is at the top. The light is yellow after you connected the device to the
power.
●
The read-write indicator light is at the bottom. The blue light ashes when system is reading or
writing the data. In addition to ashing blue light, read-write operation lights of some models of
devices further include the following states. Please refer to the actual device.
Stead red: HDD failure (HDD error).
Flash red: HDD is in a RAID rebuild state.
Red intermittent ashing twice: HDD is in a predicted fault state (including a HDD warning).
Blue and red ashing alternately: HDD is in a positioned state.

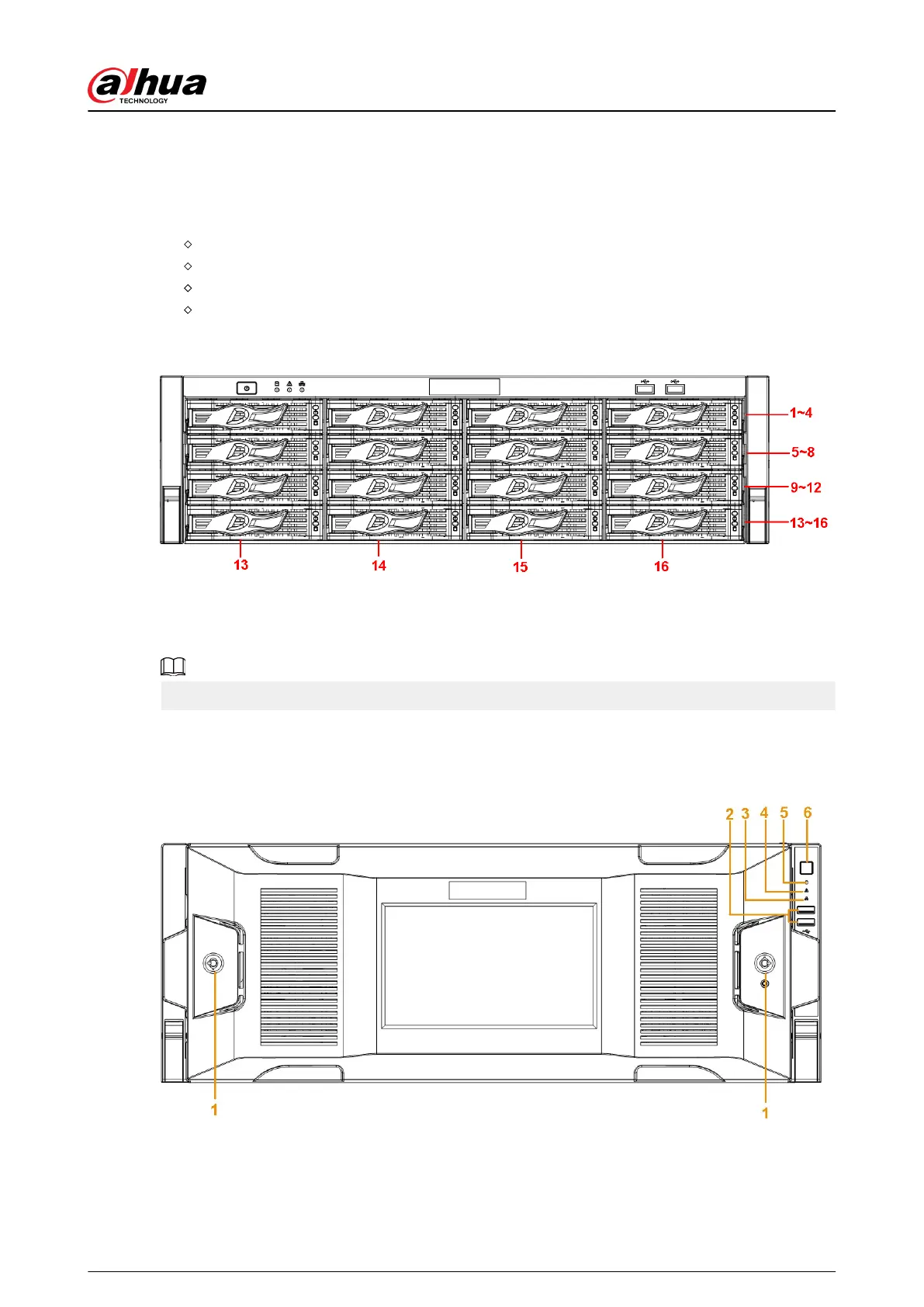

Figure 2-34 Front panel
2.1.16 NVR624-XI Series
The following gures are for reference only.
The front panel of NVR624-XI series is shown as follows.
Figure 2-35 Front panel
