Dahua NVR52-4KS2 SERIES User Manual

Port Name Connection Function
PoE PORTS PoE port
Built-in switch. Support PoE function.
For PoE series product, you can use this port to
provide power to the network camera.
Power input port Power socket.
GND Ground end.

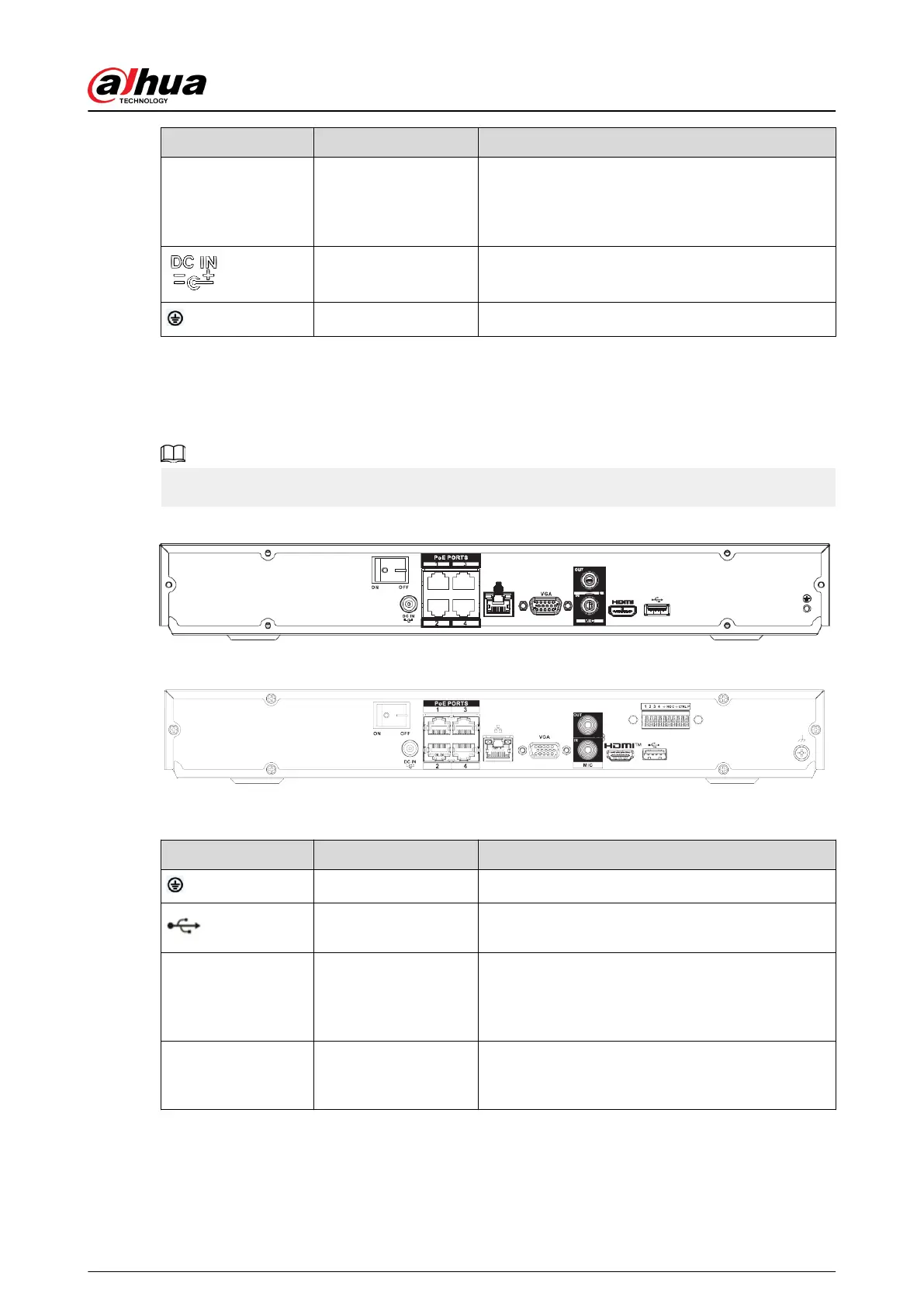

2.2.16 NVR22-P-I/NVR22-P-I2 Series
The rear panel is shown as below.
The gure is for reference only.
Figure 2-86 Rear panel
Figure 2-87 Rear panel
Table 2-32 Ports
Port Name
Connection Function
GND Ground end.
USB port
USB port. Connect to mouse, USB storage device
and more.
HDMI
High Denition Media
Page
High denition audio and video signal output port.
It transmits uncompressed high denition video
and multiple-channel data to the HDMI port of the
display device. HDMI version is 1.4.
MIC IN Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices such
as microphone, pickup.
User's Manual
52
