No. Port Name Function
MIC OUT
Audio output port. It is to output analog audio signal to devices
such as sound box.
●
Bidirectional talk output.
●
Audio output on 1-window video monitor.
●
Audio output on 1-window video playback.
9 VGA port
VGA video output port. Output analog video signal. It can
connect to the monitor to view analog video.
10 RS-232 port
It is for general COM debugging to congure IP address and
transfer transparent COM data.
11 GND.
2.2.28 NVR58RH-XI/NVR58H-XI/NVR608-4KS2/NVR608H-XI/
NVR608RH-XI Series

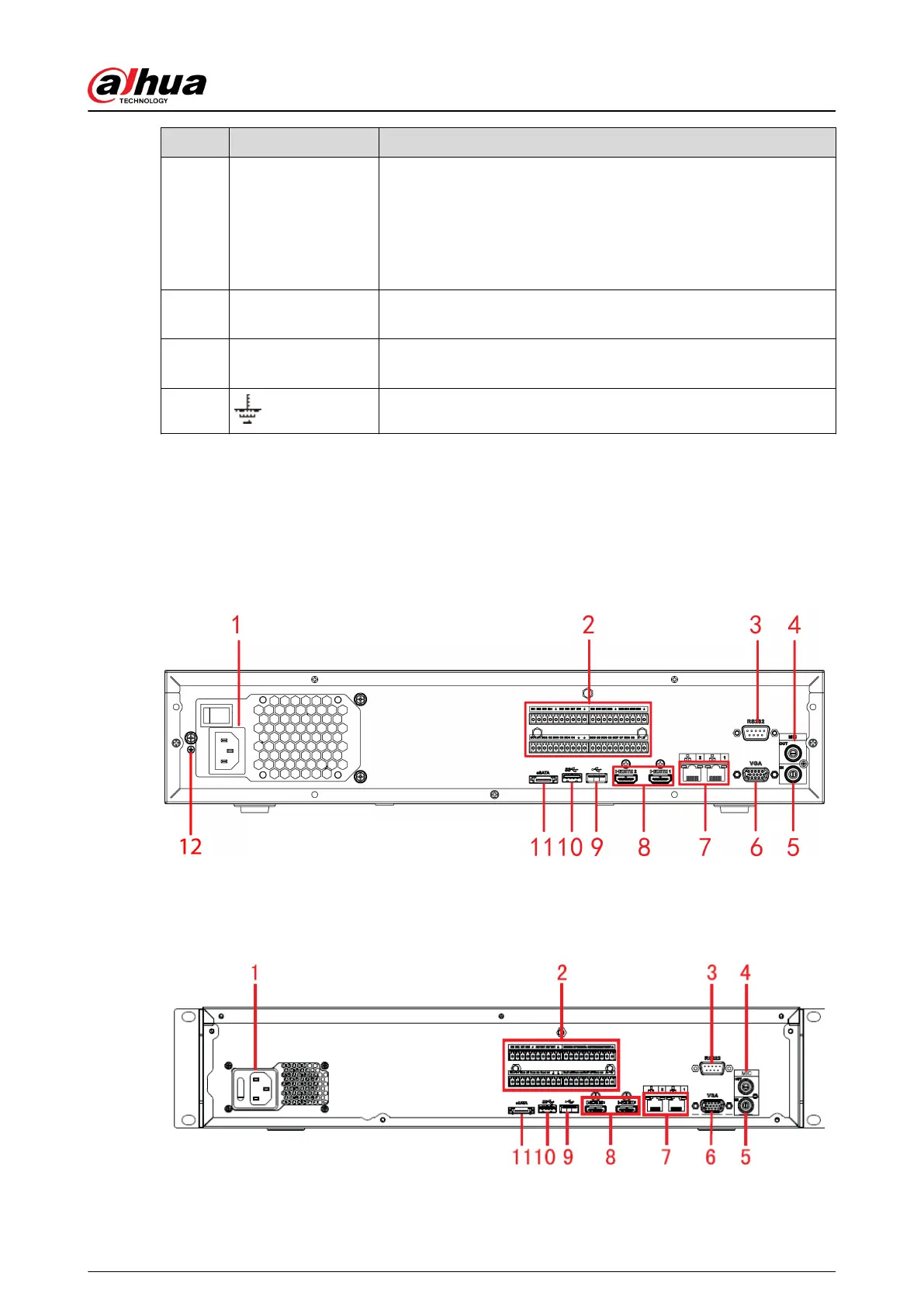

The NVR608-32-4KS2 series rear panel is shown as below.
Figure 2-106 Rear panel (1)
The NVR58H-XI/NVR608-64-4KS2/NVR608-128-4KS2/NVR608H-32-XI/NVR608H-64-XI/
NVR608H-128-XI series rear panels are shown as below.
Figure 2-107 Rear panel (2)
User's Manual
71
