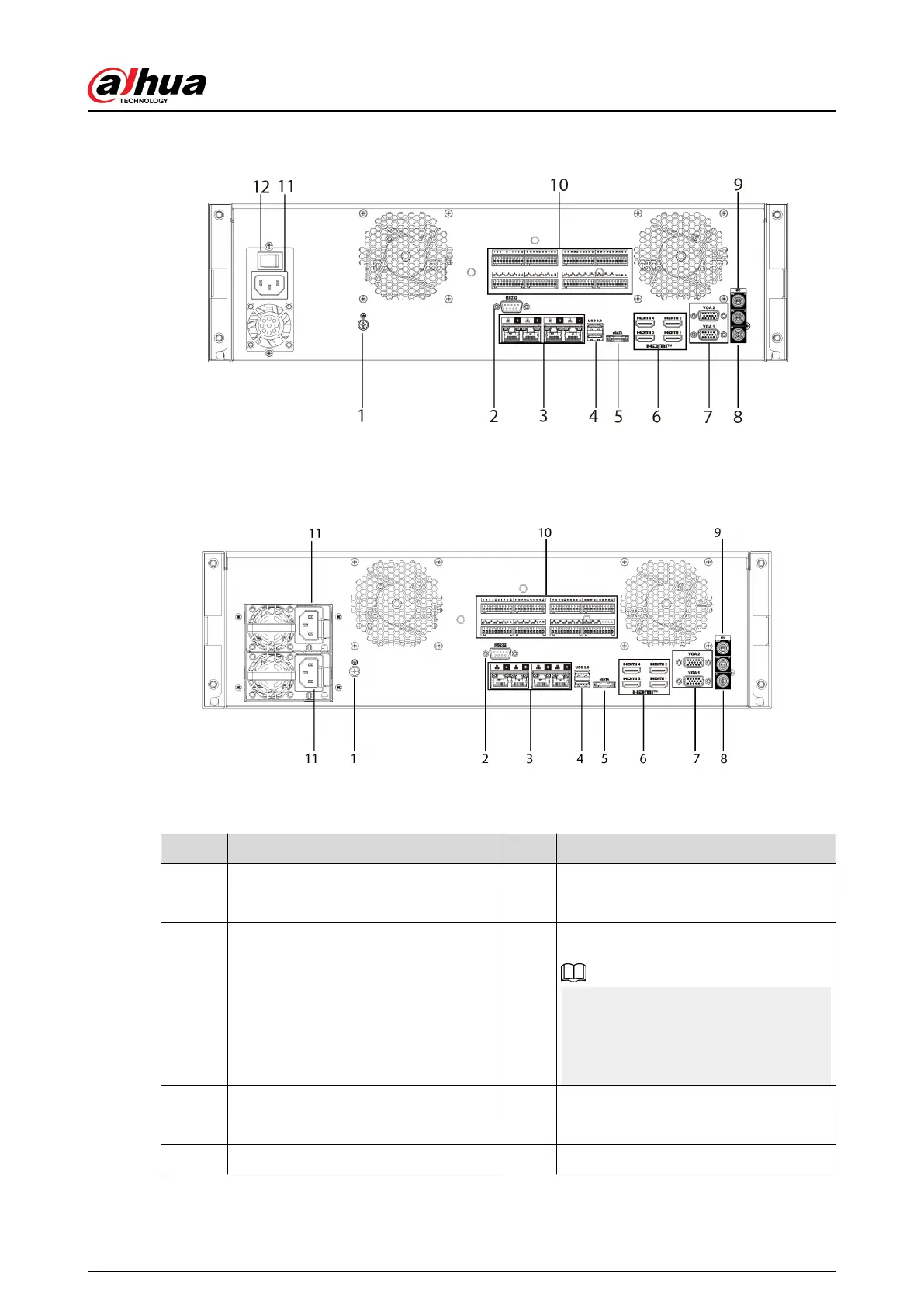

Figure 2-114 Rear panel
The redundant power series rear panel of NVR616-XI series is shown as below.
Figure 2-115 Rear panel
Table 2-45 Ports
No.
Name No. Name
1 Ground 2 RS-232 Port
3 Network Port 4 USB Port
5 eSATA Port 6
HDMI Port
High-denition decoding card is not
installed in standard hardware
conguration, you can purchase as
needed.
7 VGA Port 8 AUDIO IN, RCA Connector
9 AUDIO OUT, RCA Connector 10 Alarm In/Out
11 Power Input 12 Power Switch
